Ball Screw Driven Slide

JDBN-90 Ball Screw Driven Slide
Ball Screw Driven Slide JDBN-90 (Discontinued)
Dust-proof Standard Type
Motor Capacity: 200W
Prev Next Inquiry
Product Introduction
Applicable Motor AC-200W/ 220V
Slide Track and Slide 20mm 1 Slide Tracks, 2 Slides
Specified Torque 0.64 N.m
Repetitive Precision ± 0.01mm
External Diameter of Ball Screw (mm) ø12, ø16
Pitch Lead Screw (mm) 5 10 16 20
Highest speed (mm/sec) 250 500 800 1000
Max. Weight (kg) Horizontal 40 30 20 15
Vertical 12 8 5 3
Sensor Model No. 674 x 3 pcs / 671 x 3 pcs
Load Torque (N.m)  Ma: 30 N.m
 Ma: 55 N.m
 Ma: 55 N.m

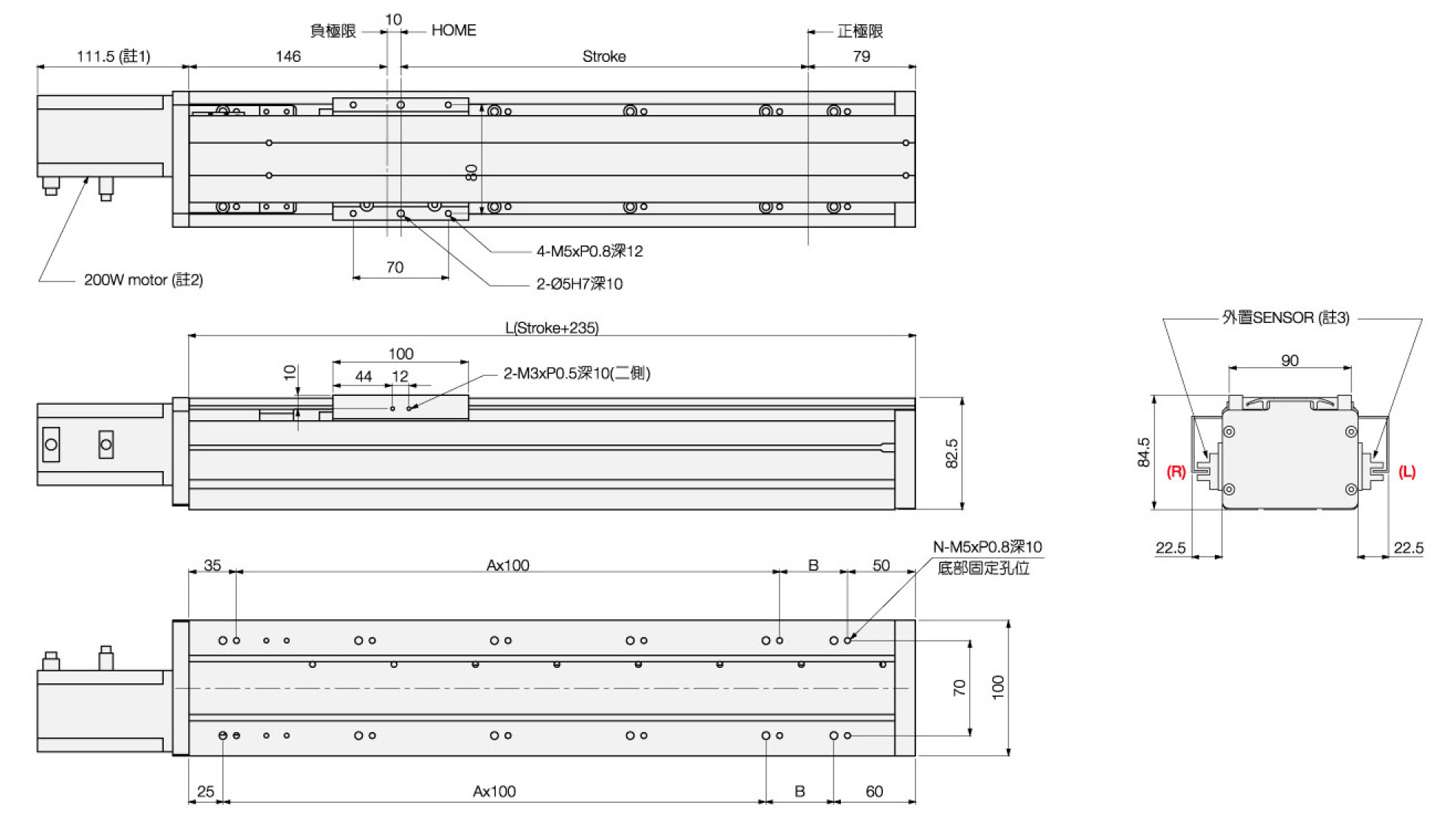

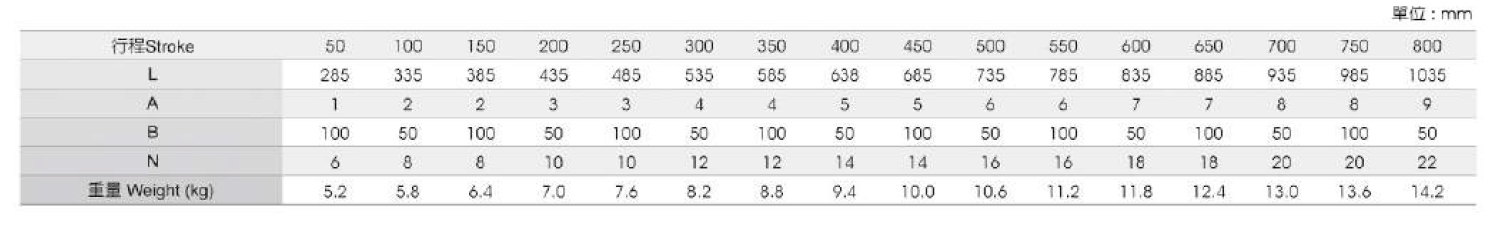

JDBN-90 Specification of Direct Type-1

1. The dimension of machine changes according to different motor; The motor lid is optional accessory
2. Applicable motor: 100W, 200W, 400W
3. We install the sensor outside (right or left side)

SENSOR：

  1. +LS
  2. HOME
  3. -LS

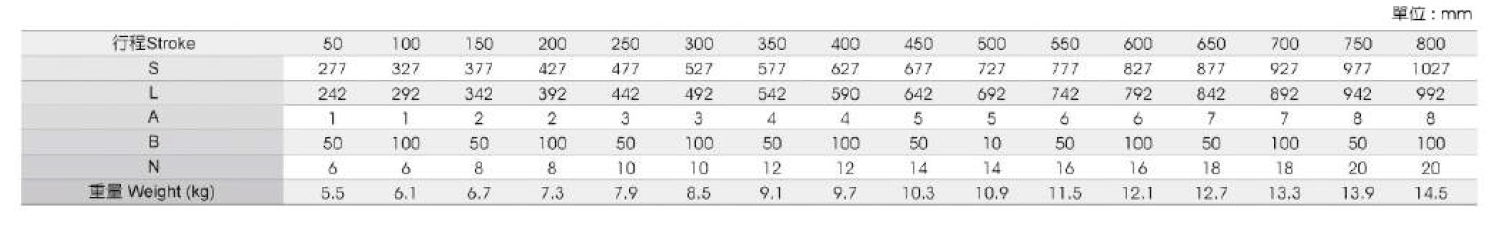

JDBN-90 Specification of Indirect Type-2L

1. Applicable motor: 100W, 200W, 400W
2. We install the sensor on the right side

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBN-90 Specification of Indirect Type-2R

1. Applicable motor: 100W, 200W, 400W
2. We install the sensor on the Left side

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBN-90 Specification of Indirect Type-2L

1. Applicable motor: 100W, 200W, 400W
2. We install the sensor outside (right or left side)

SENSOR：

  1. +LS
  2. HOME
  3. -LS
