Ball Screw Driven Slide (4 slides)

JDB-180 Ball Screw Driven Slide (4 slides)
Ball Screw Driven Slide (4 slides) JDB-180

Dust-proof Standard Type
Motor Capacity: 750W

Prev Next Inquiry
Product Introduction
Applicable Motor AC-750W / 220V
Slide Track and Slide 25mm 2 Slide Tracks, 4 Slides
Specified Torque 2.4 N.m
Repetitive Precision ± 0.01mm
External Diameter of Ball Screw ø20mm, ø25mm, ø32mm, ø40mm
Pitch Lead Screw 5 mm 10 mm 20 mm 25 mm 32 mm
Highest speed 250 mm/sec 500 mm/sec 800 mm/sec 1250 mm/sec 1000 mm/sec
Max. Weight Horizontal 130 kg 100 kg 70 kg 40 kg 20 kg
Vertical 65 kg 45 kg 28 kg 14 kg 10 kg
Sensor Model No. 671 x 3 pcs
Load Torque  Ma: 263.3 N.m
 Ma: 242.5 N.m
 Ma: 242.5 N.m

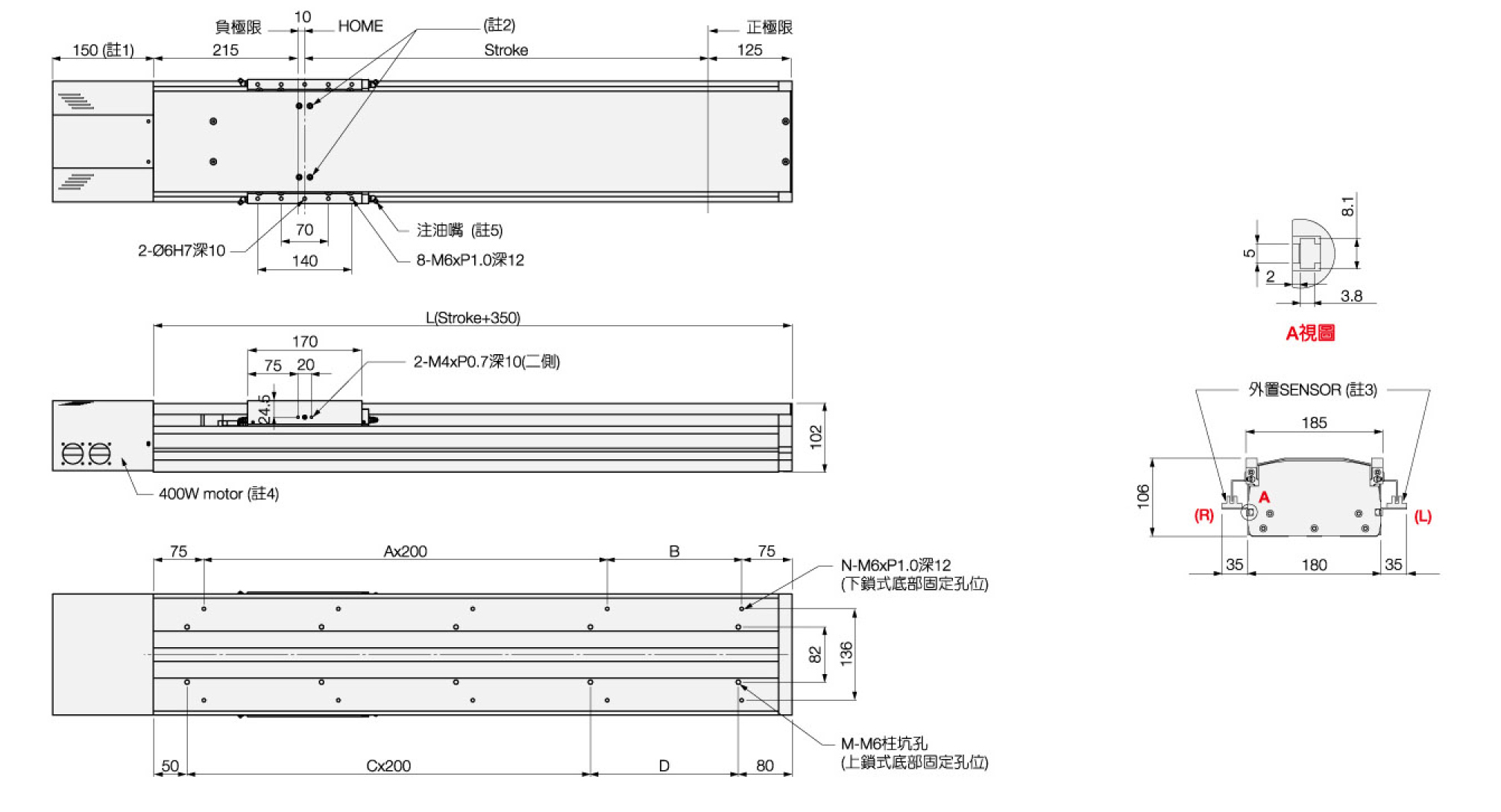

JDB-180 Specification of Direct Type-1

1. The dimension of machine changes according to different motor; The motor lid is optional accessory
2. Due to the inner design, you can dismantle the motor lid (for long travel type),
    please choose one of the four fixed apertures and loose the screw of it.
    (Before you perform this action, make sure that the the sensor is back to Home)
3. We install in the sensor outside (rightor left side)
4. Applicable motor: 400W, 750W
5. The oiler is optional accessory

SENSOR：

  1. +LS
  2. HOME
  3. -LS

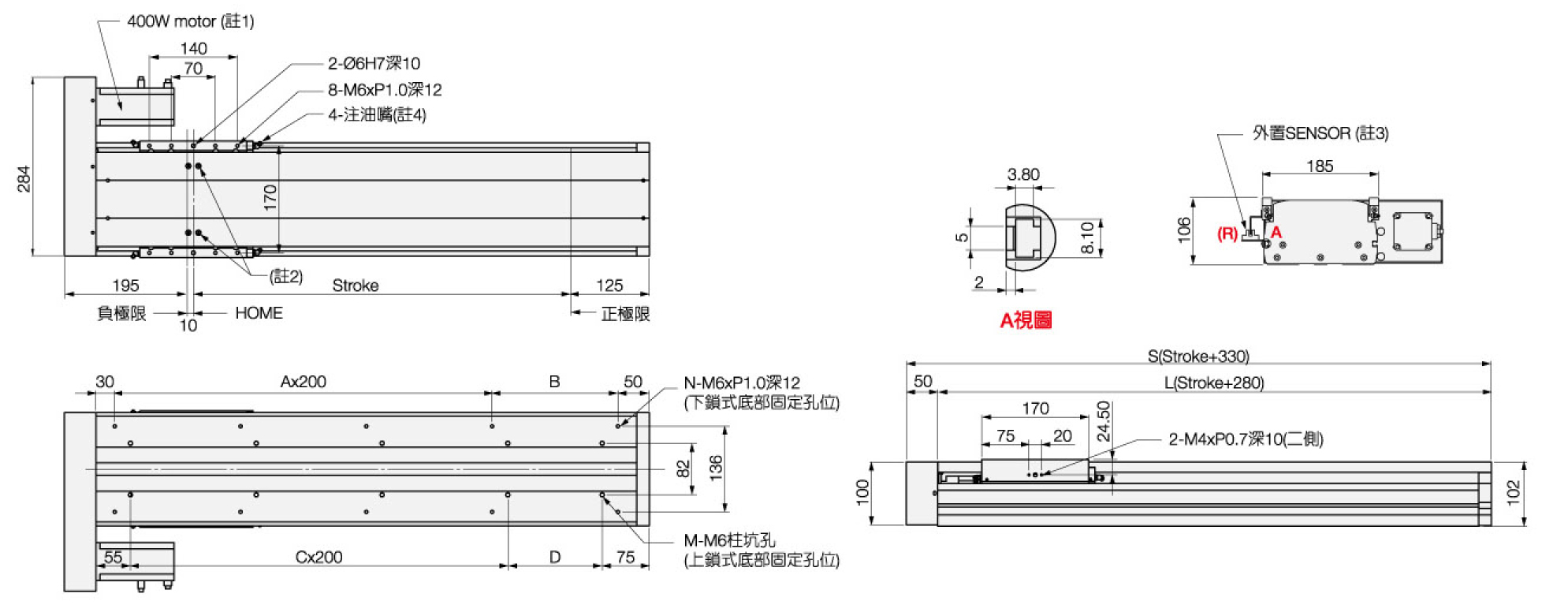

JDB-180 Specification of Indirect Type-2L

1. Applicable motor: 400W, 750W
2. Due to the inner design, you can dismantle the motor lid (for long travel type),
    please choose one of the four fixed apertures and loose the screw of it.
    (Before you perform this action, the sensor need to be back to home coordinate.)
3. We install the sensor on the right side
4. The oiler is optional accessory

SENSOR：

  1. +LS
  2. HOME
  3. -LS

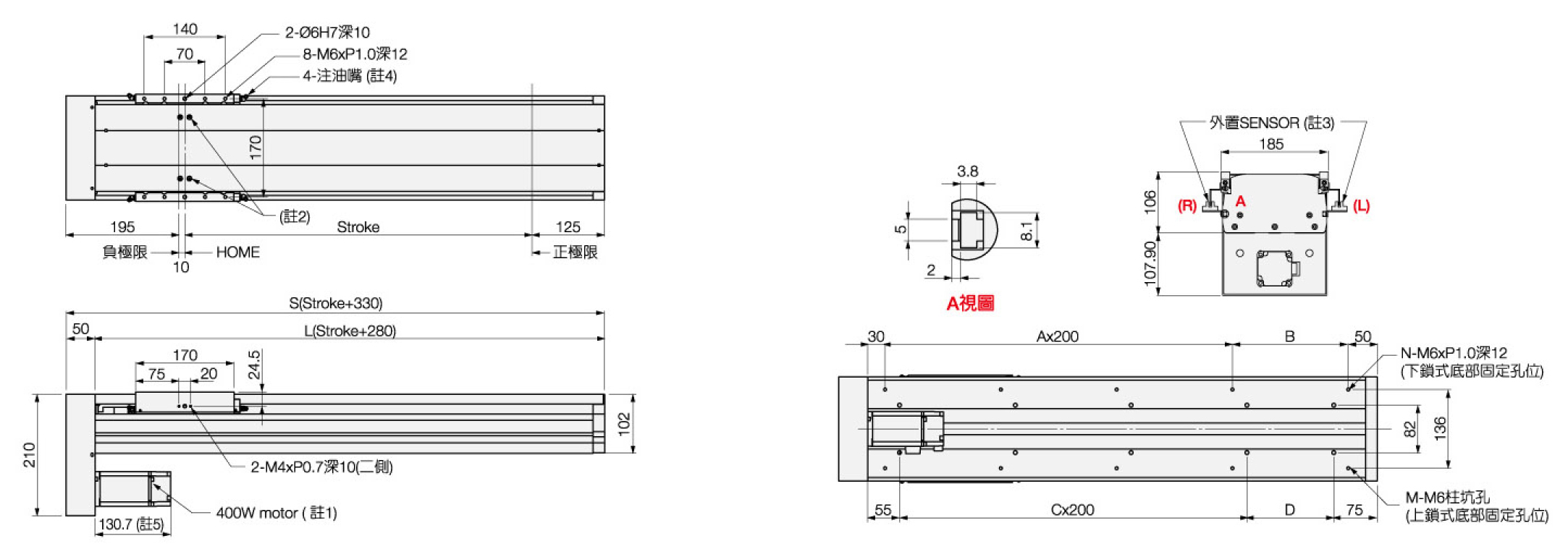

JDB-180 Specification of Indirect Type-2R

1. Applicable motor: 400W, 750W
2. Due to the inner design, you can dismantle the motor lid (for long travel type),
    please choose one of the four fixed apertures and loose the screw of it.
    (Before you perform this action, the sensor need to be back to home coordinate.)
3. We install the sensor on the left side
4. The oiler is optional accessory

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDB-180 Specification of Indirect Type-2B

1. Applicable motor: 400W, 750W
2. Due to the inner design, you can dismantle the motor lid (for long travel type),
    please choose one of the four fixed apertures and loose the screw of it.
    (Before you perform this action, the sensor need to be back to home coordinate.)
3. We install in the sensor outside (rightor left side)
4. The oiler is optional accessory

SENSOR：

  1. +LS
  2. HOME
  3. -LS
