Ball Screw Driven Slide (Flat Slides) JDBN-100 (Discontinued)
Dust-proof Standard Type
Motor Capacity: 200W
Prev Next Inquiry
Product Introduction
Applicable Motor AC-200W/ 220V
Slide Track and Slide MR15 WL Flat Slides
Specified Torque 0.64 N.m
Repetitive Precision ± 0.01mm
External Diameter of Ball Screw (mm) ø12, ø16
Pitch Lead Screw (mm) 5 10 16 20
Highest speed (mm/sec) 250 500 800 1000
Max. Weight (kg) Horizontal 30 25 18 15
Vertical 17 12 10 8
Sensor Model No. 674 x 3 pcs / 671 x 3 pcs
Load Torque (N.m)  Ma: 81 N.m
 Ma: 35.2 N.m
 Ma: 35.2 N.m
JDBN-100 Specification of Direct Type-1

1. The dimension of machine changes according to different motor.
2. The motor lid is optional accessory
3. Applicable motor: 100W, 200W, 400W
4. The outer lube fitting is optional accessory
5. We install the sensor outside right or left side

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBN-100 Specification of Indirect Type-2L

1. Applicable motor: 100W, 200W, 400W
2. The outer lube fitting is optional accessory
3. We install the sensor on the right side

SENSOR：

  1. +LS
  2. HOME
  3. -LS

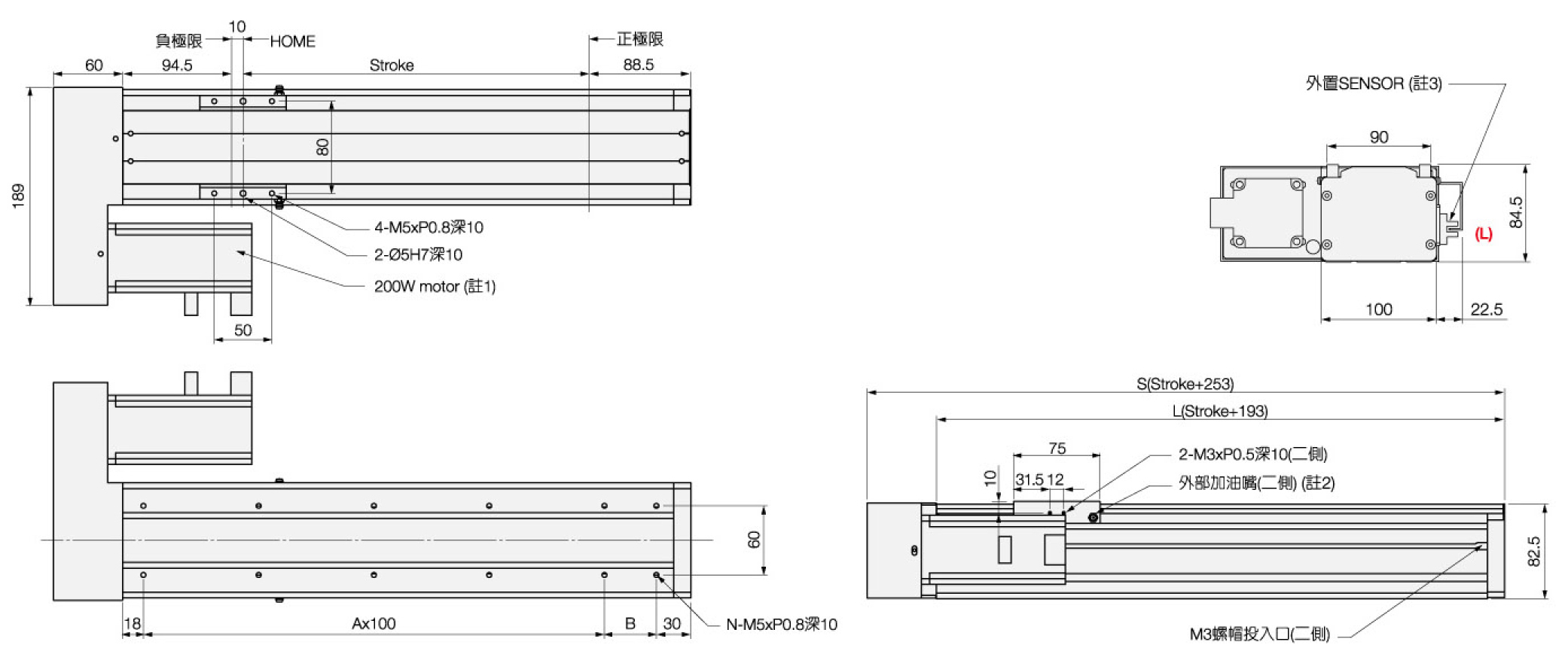

JDBN-100 Specification of Indirect Type-2R

1. Applicable motor: 100W, 200W, 400W
2. The outer lube fitting is optional accessory
3. We install the sensor on the left side

SENSOR：

  1. +LS
  2. HOME
  3. -LS

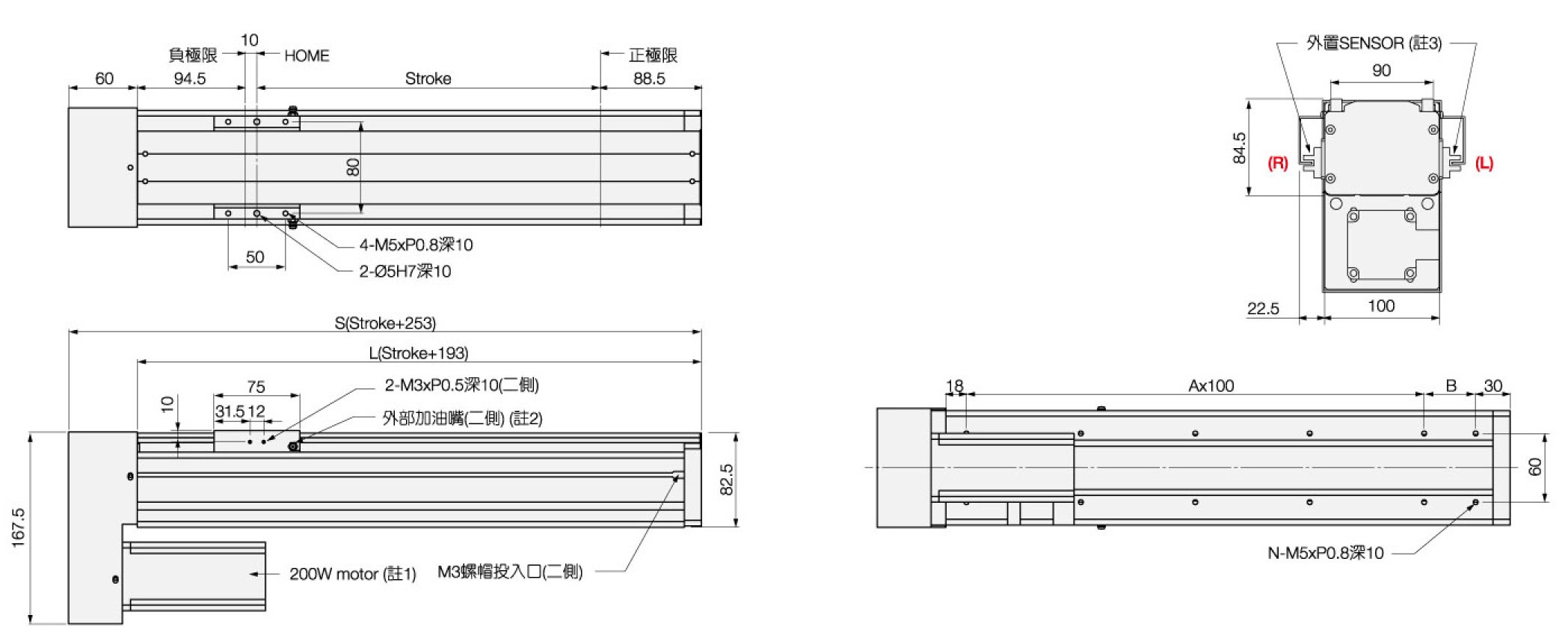

JDBN-100 Specification of Indirect Type-2B

1. Applicable motor: 100W, 200W, 400W
2. The outer lube fitting is optional accessory
3. We install the sensor onside (right or left side)

SENSOR：

  1. +LS
  2. HOME
  3. -LS
