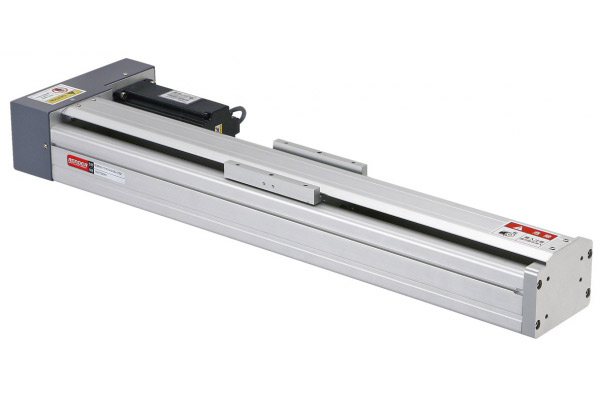

Ball Screw Driven Slide (Flat Slides)

JDBN-75 Ball Screw Driven Slide (Flat Slides)
Ball Screw Driven Slide (Flat Slides) JDBN-75 (Discontinued)
Dust-proof Standard Type
Motor Capacity: 100W
Prev Next Inquiry
Product Introduction
Applicable Motor AC-100W/ 220V
Slide Track and Slide MR12 WL Flat Slides
Specified Torque 0.32 N.m
Repetitive Precision ± 0.01mm
External Diameter of Ball Screw (mm) ø12
Pitch Lead Screw (mm) 5 10
Highest speed (mm/sec) 250 500
Max. Weight (kg) Horizontal 14 10
Vertical 8 5
Sensor Model No. 674 x 3 pcs / 671 x 3 pcs
Load Torque (N.m)  Ma: 30.1 N.m
 Ma: 17.5 N.m
 Ma: 17.5 N.m

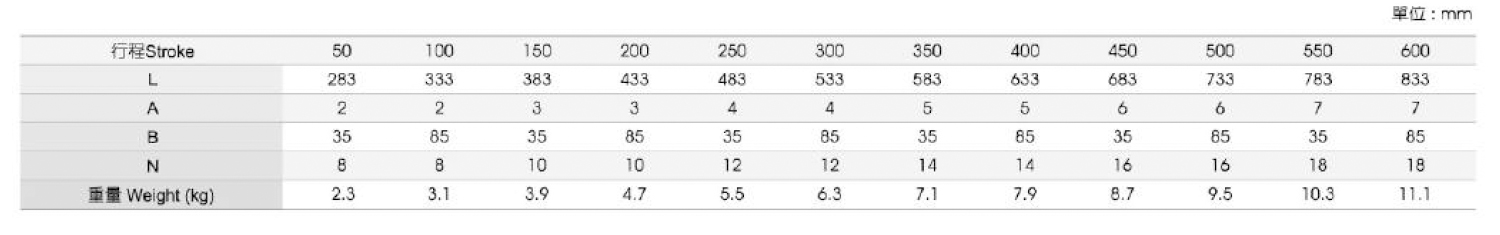

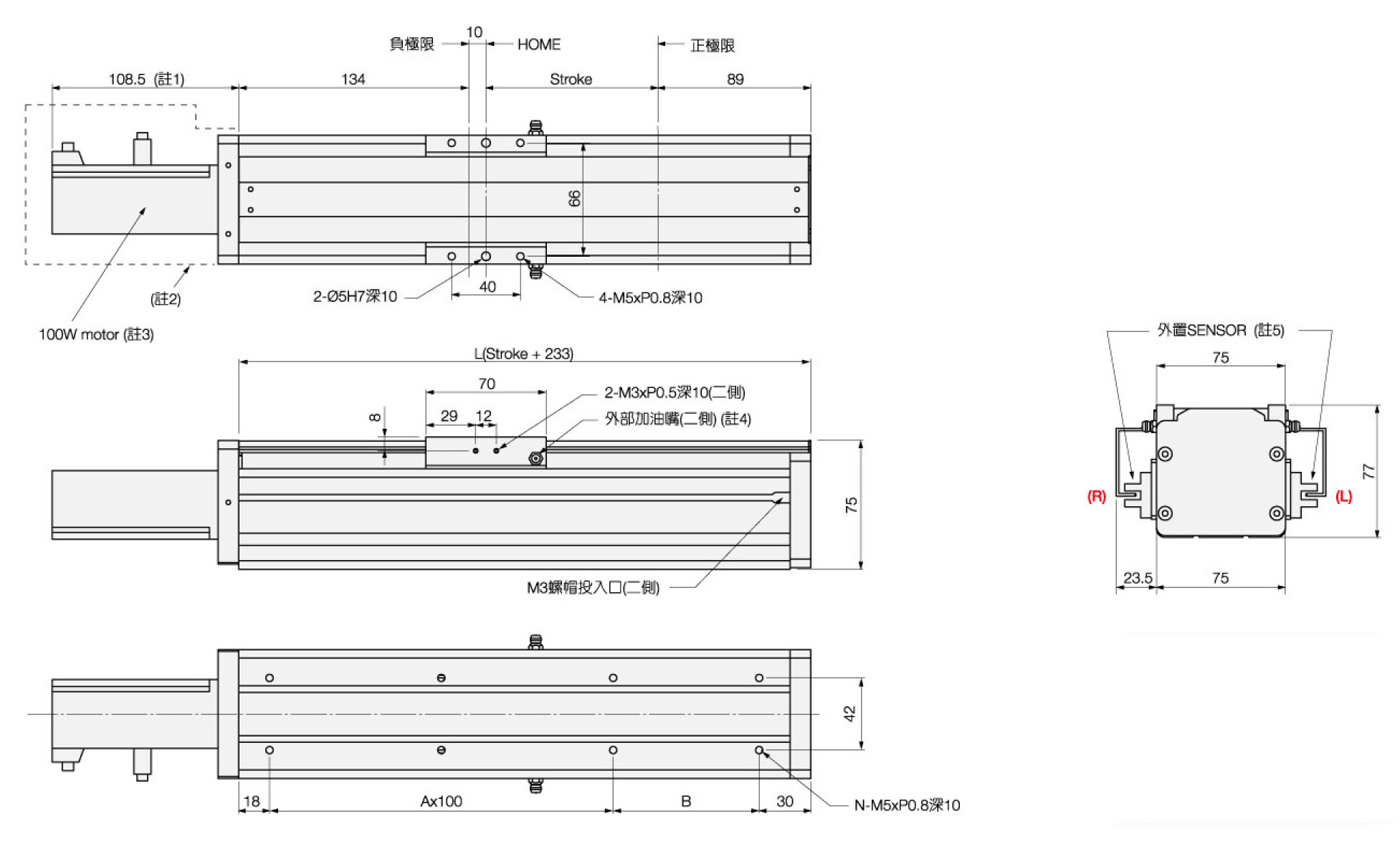

JDBN-75 Specification of Direct Type-1

1. The dimension of machine changes according to different motor
2. The motor lid is optional accessory
3. Applicable motor: 50W, 100W, 200W
4. The outer lube fitting is optional accessory
5. We install the sensor outside (right or left side )

SENSOR：

  1. +LS
  2. HOME
  3. -LS

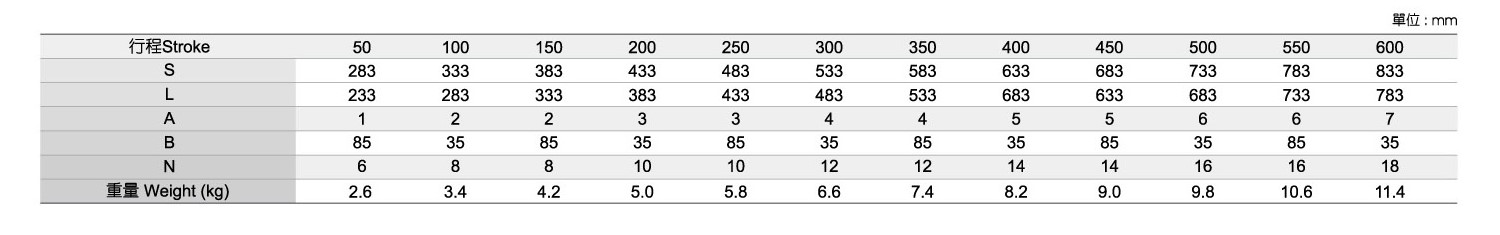

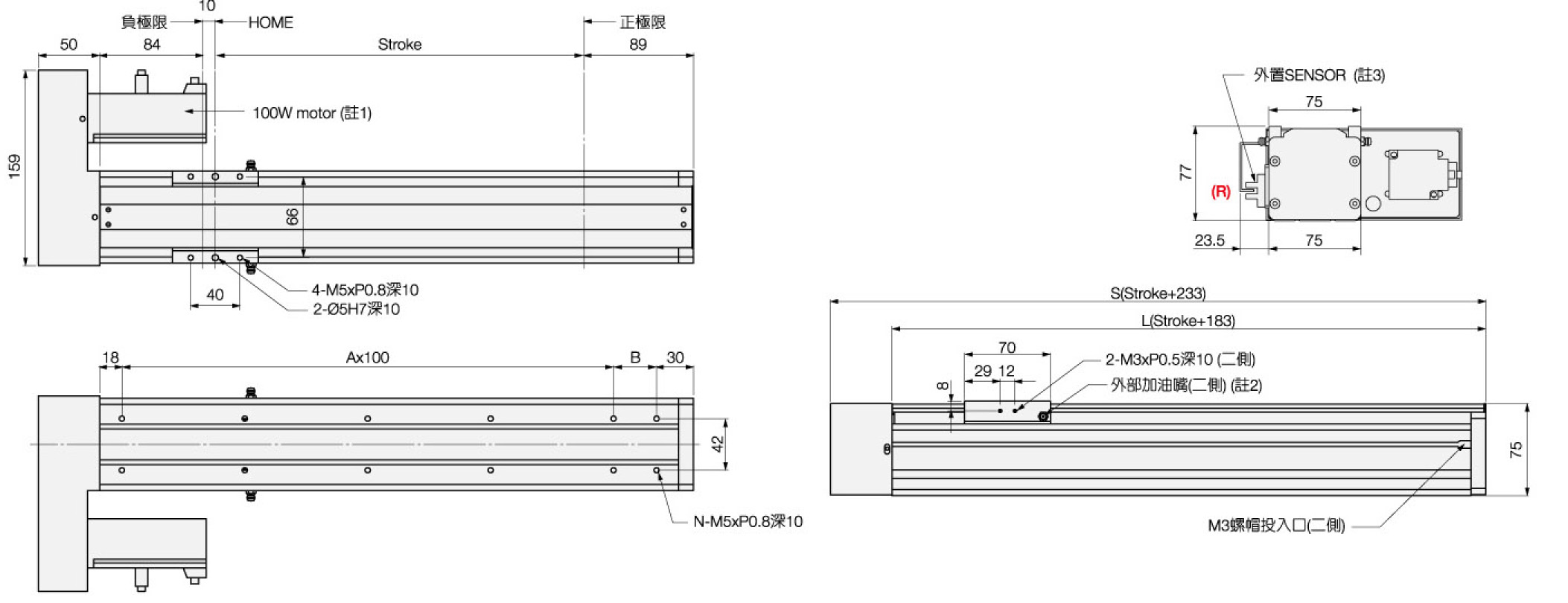

JDBN-75 Specification of Indirect Type-2L

1. Applicable motor: 50W, 100W, 200W
2. The outer lube fitting is optional accessory
3. We install the sensor on the (right side)

SENSOR：

  1. +LS
  2. HOME
  3. -LS

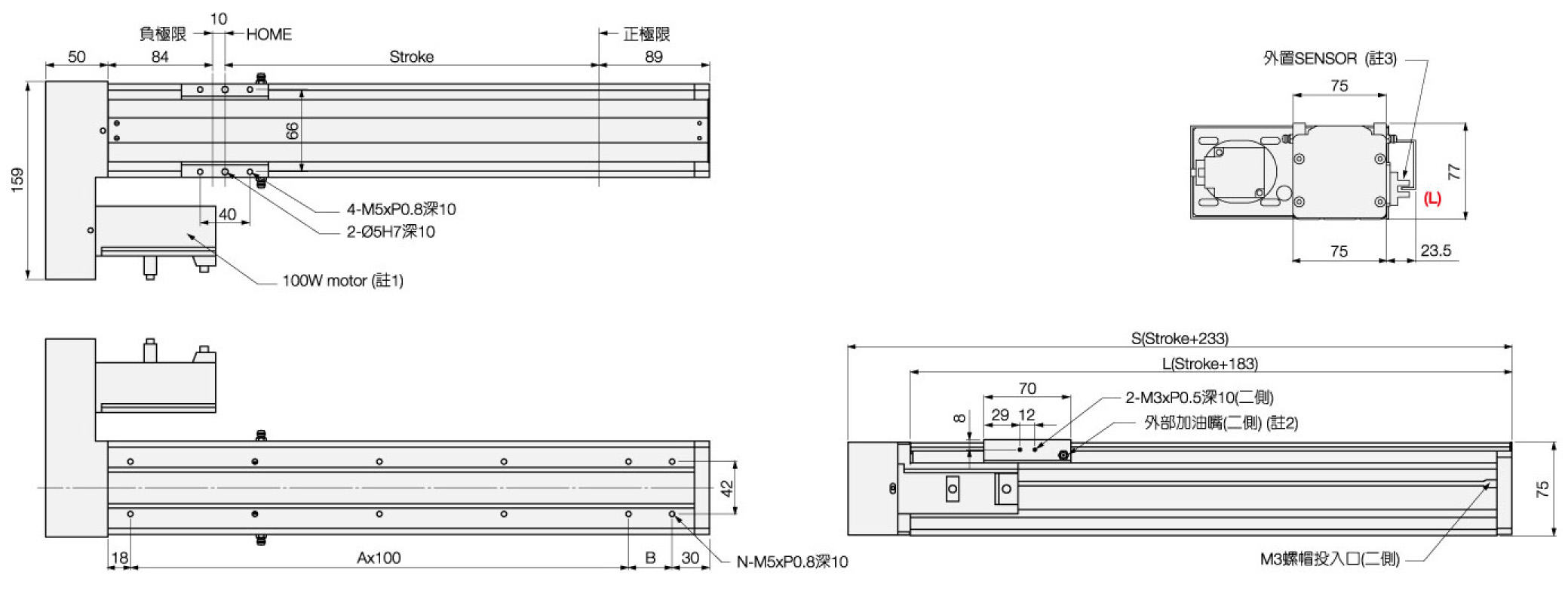

JDBN-75 Specification of Indirect Type-2R

1. Applicable motor: 50W, 100W, 200W
2. The outer lube fitting is optional accessory
3. We install the sensor on the (left side)

SENSOR：

  1. +LS
  2. HOME
  3. -LS

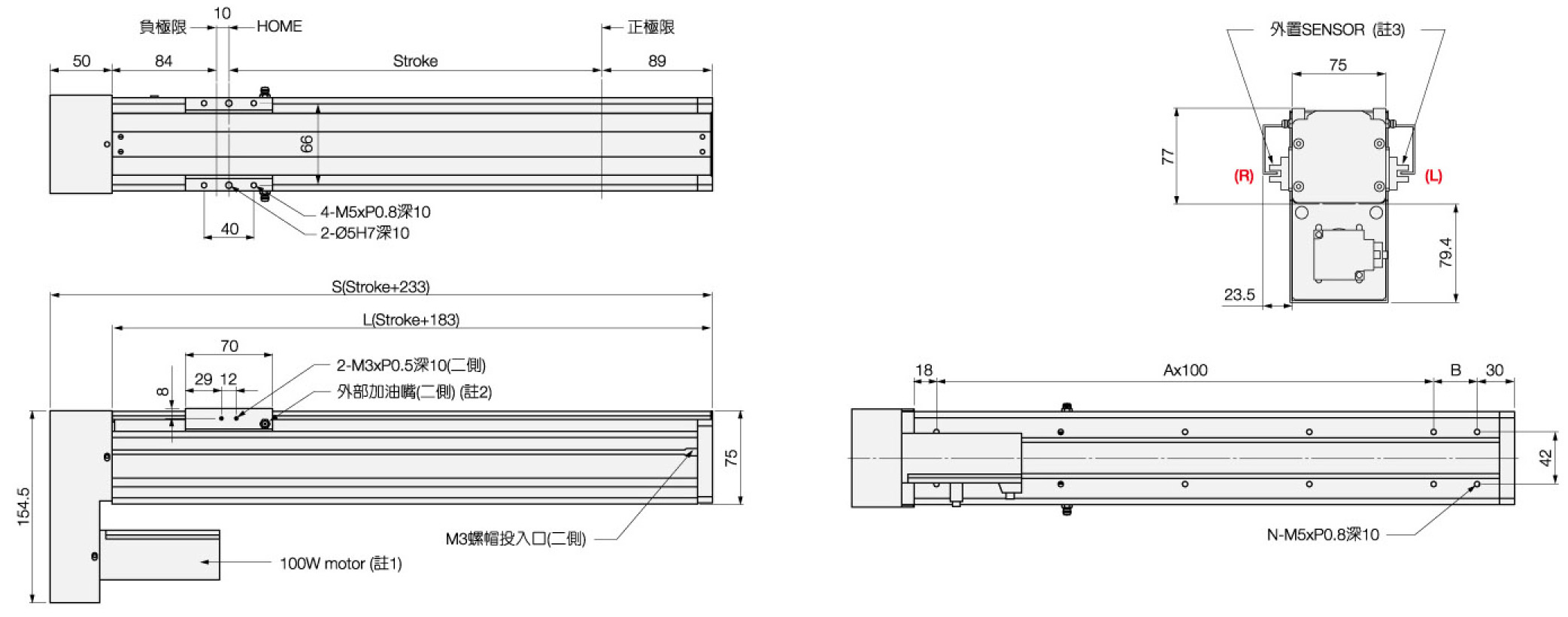

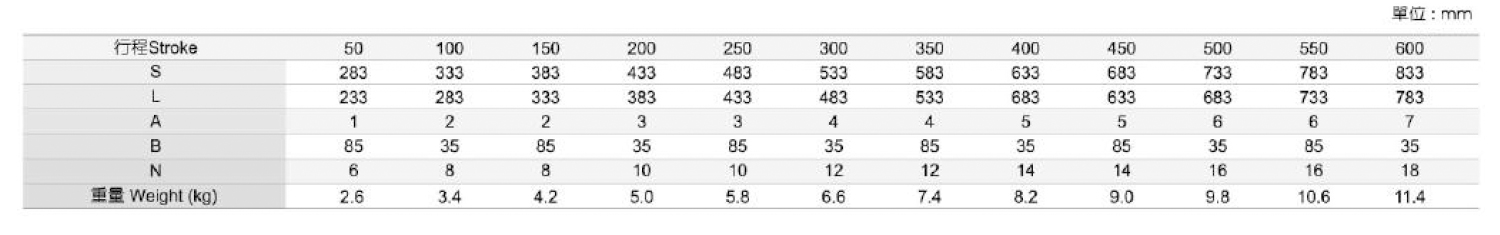

JDBN-75 Specification of Indirect Type-2B

1. Applicable motor: 50W, 100W, 200W
2. The outer lube fitting is optional accessory
3. We install the sensor outside (right or left side)

SENSOR：

  1. +LS
  2. HOME
  3. -LS
