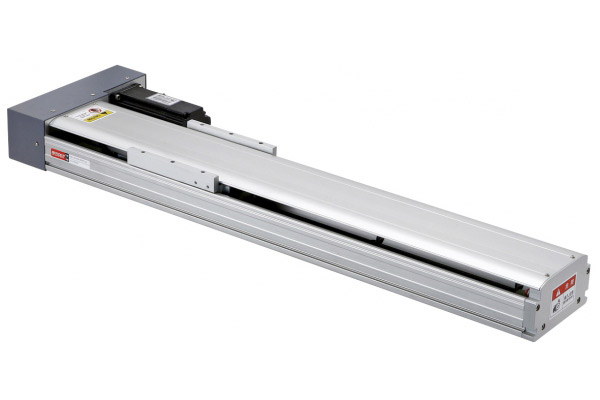

Ball Screw Driven Slide (4 slides)

JDB-130 Ball Screw Driven Slide (4 slides)
Ball Screw Driven Slide (4 slides) JDB-130

Dust-proof Standard Type
Motor Capacity: 400W

Prev Next Inquiry

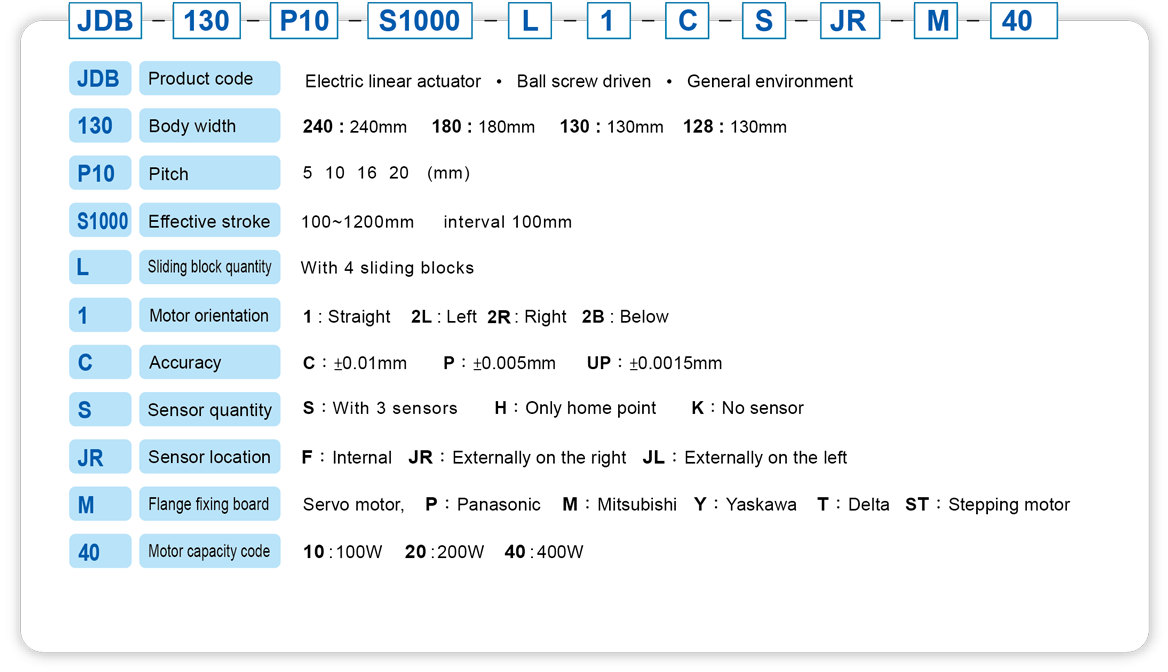

Product Introduction
Applicable Motor AC-400W / 220V
Slide Track and Slide 15mm 2 Slide Tracks, 4 Slides
Specified Torque 1.3 N.m
Repetitive Precision ± 0.01 mm
External Diameter of Ball Screw ø16mm, ø20mm
Pitch Lead Screw 5 mm 10 mm 16 mm 20 mm
Highest speed 250 mm/sec 500 mm/sec 800 mm/sec 1000 mm/sec
Max. Weight Horizontal 85 kg 60 kg 45 kg 35 kg
Vertical 35 kg 20 kg 14 kg 12 kg
Sensor Model No. 674 x 3 pcs / 671 x 3pcs
Load Torque (N.m) Ma: 126 N.m
Ma: 109.2 N.m
Ma: 109.2 N.m

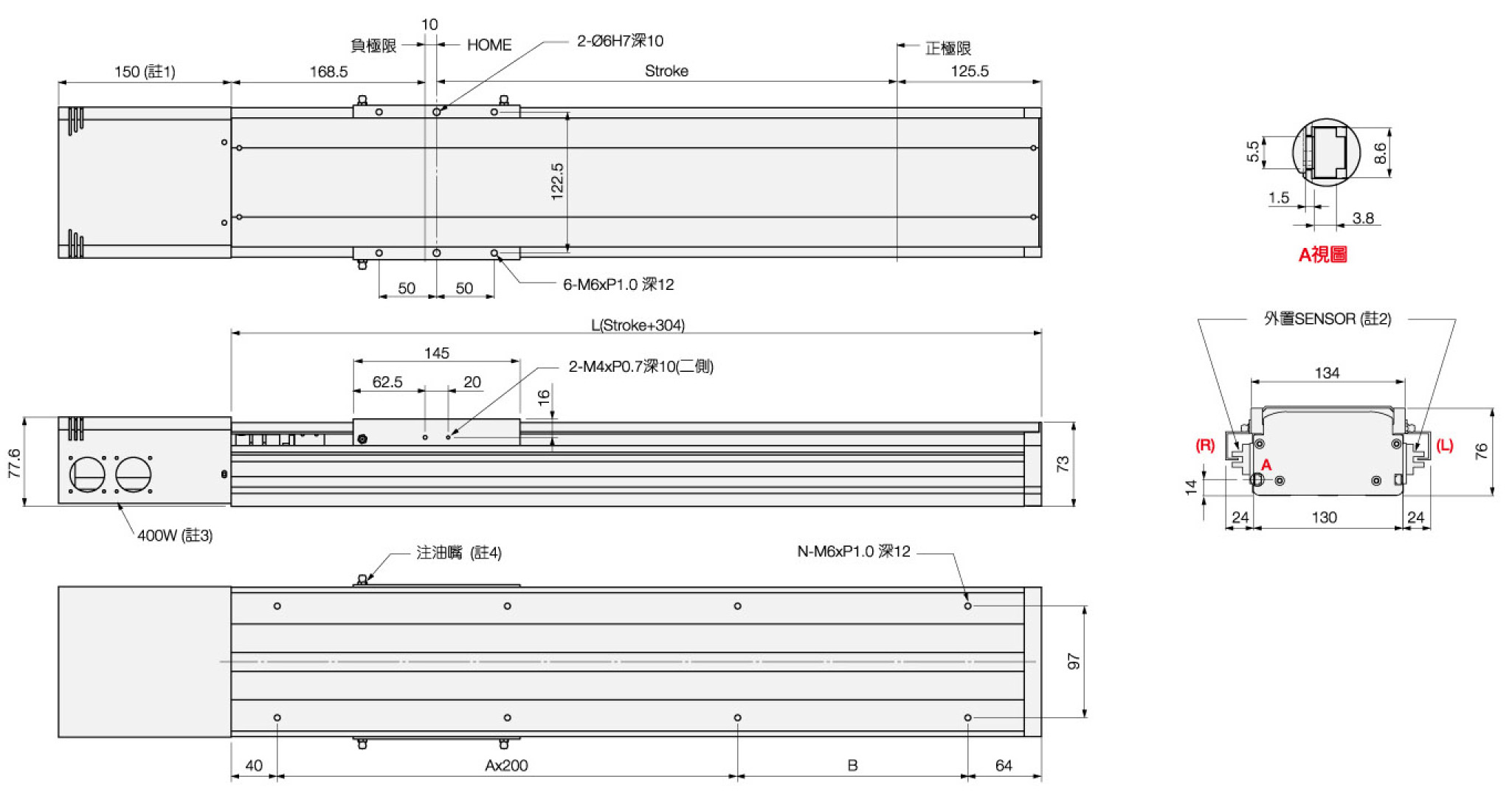

JDB-130 Specification of Direct Type-1

1. The dimension of machine changes according to different motor; The motor lid is optional accessory
2. We install the sensor outside (rightor left side)
3. Applicable motor: 200W, 400W
4. The oiler is optional accessory

SENSOR：

  1. +LS
  2. HOME
  3. -LS

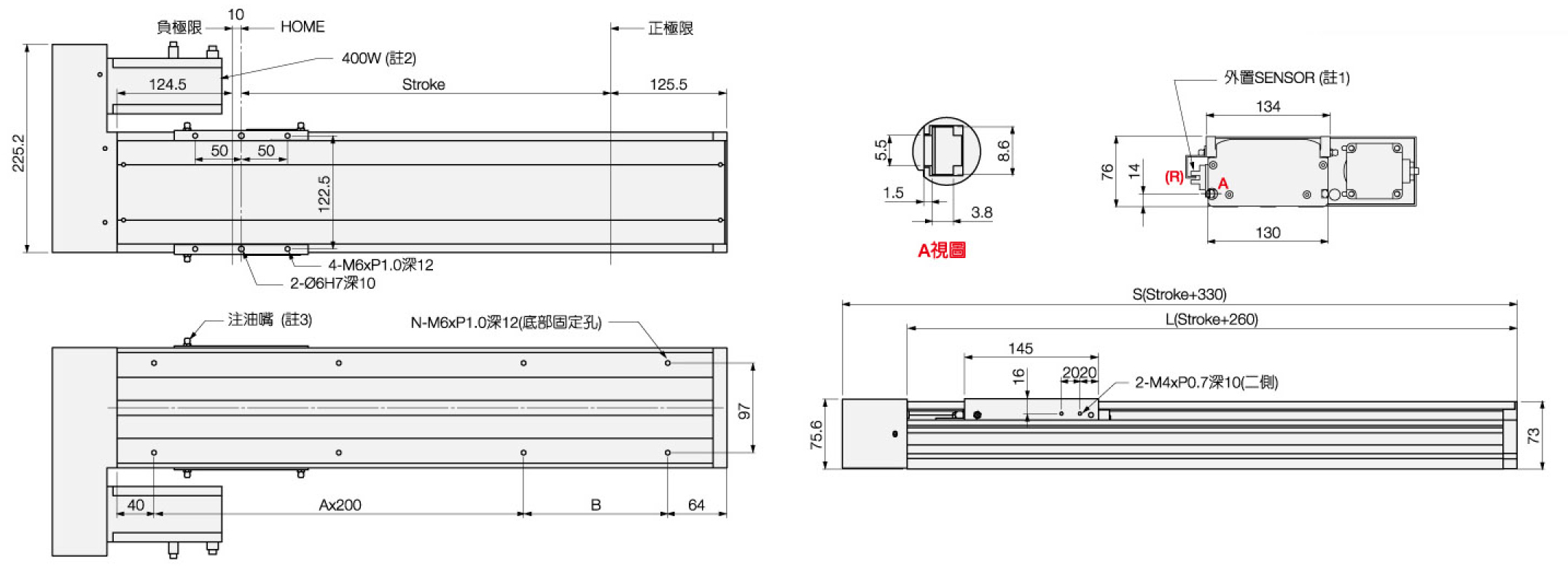

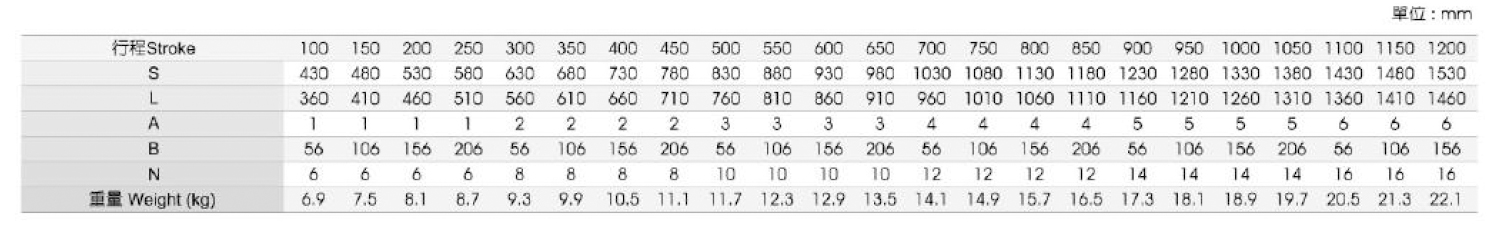

JDB-130 Specification of Indirect Type-2L

1. We install the sensor on the Right side.
2. Applicable motor: 200W, 400W
3. The oiler is optional accessory

SENSOR：

  1. +LS
  2. HOME
  3. -LS

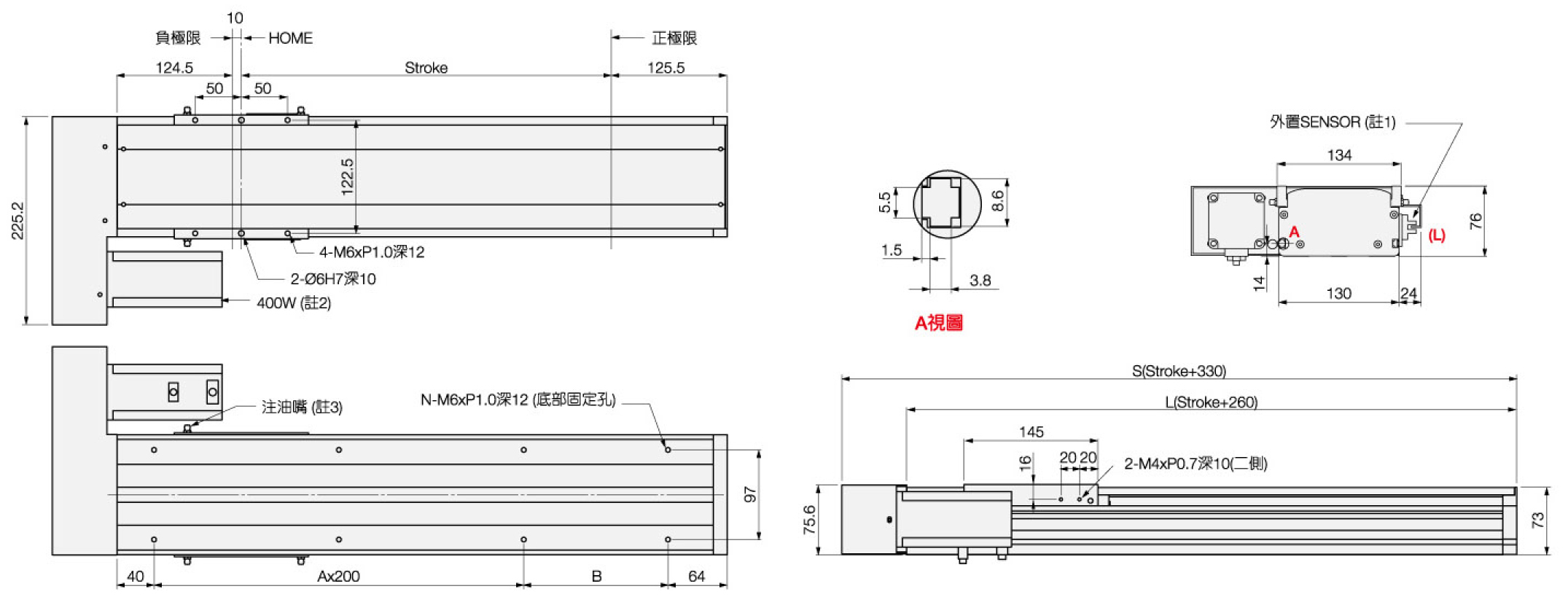

JDB-130 Specification of Indirect Type-2R

1. We install the sensor on the Left side.
2. Applicable motor: 200W, 400W
3. The oiler is optional accessory

SENSOR：

  1. +LS
  2. HOME
  3. -LS

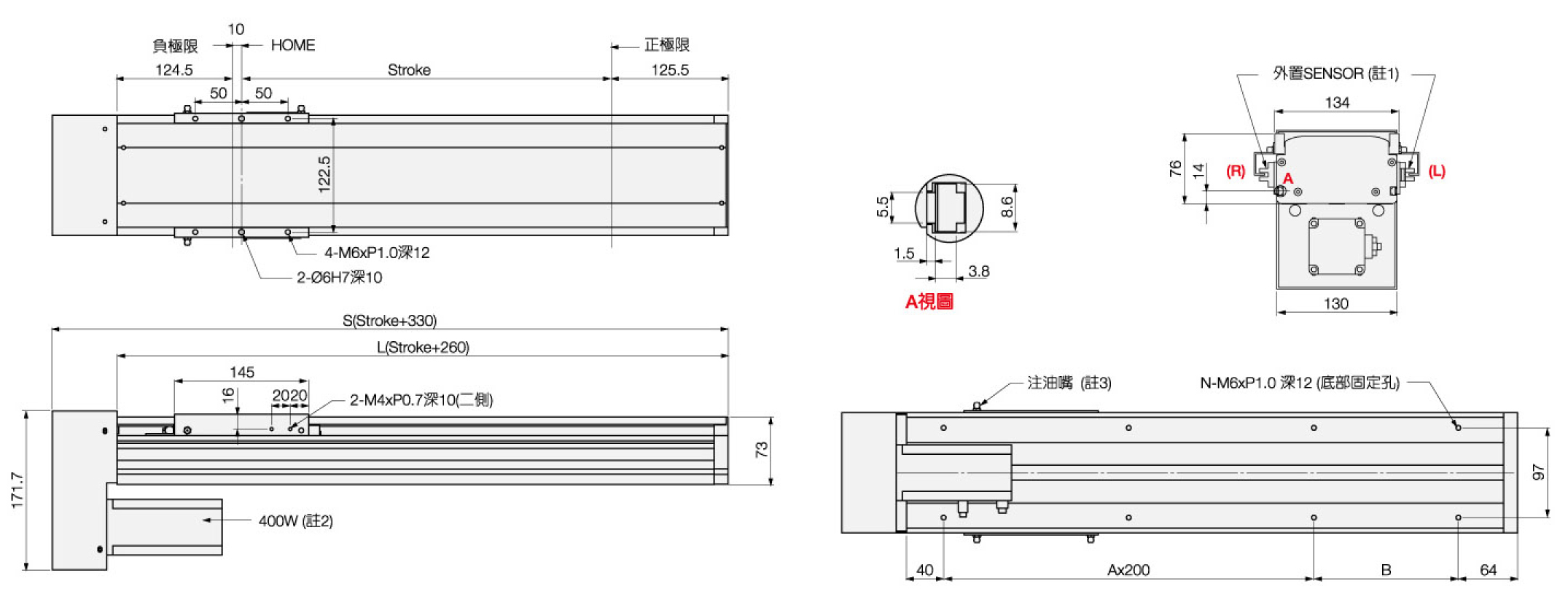

JDB-130 Specification of Indirect Type-2B

1. We install the sensor outside (rightor left side)
2. Applicable motor: 200W, 400W
3. The oiler is optional accessory

SENSOR：

  1. +LS
  2. HOME
  3. -LS
