產品介紹
| 適用馬達 | AC-100W / 220V | ||||
|---|---|---|---|---|---|
| 滑軌與滑塊 | MRU15 WN Flat Slide Track | ||||
| 額定扭矩 | 0.32 N.m | ||||
| 重覆精度 | ± 0.01mm | ||||
| 滾珠螺桿外徑 (mm) | ø12, ø16 | ||||
| 螺桿導程 (mm) | 5 | 10 | 16 | 20 | |
| 最高速度 (mm/sec) | 250 | 500 | 800 | 1000 | |
| 最大荷重 (kg) | 水平 | 30 | 25 | 18 | 15 |
| 垂直 | 17 | 12 | 10 | 8 | |
| 光電開關 | 型號 674 x 3 pcs | ||||
| 負載力矩表 (N.m) |  Ma: 81 N.m |
||||
 Ma: 35.2 N.m |
|||||
 Ma: 35.2 N.m |
|||||

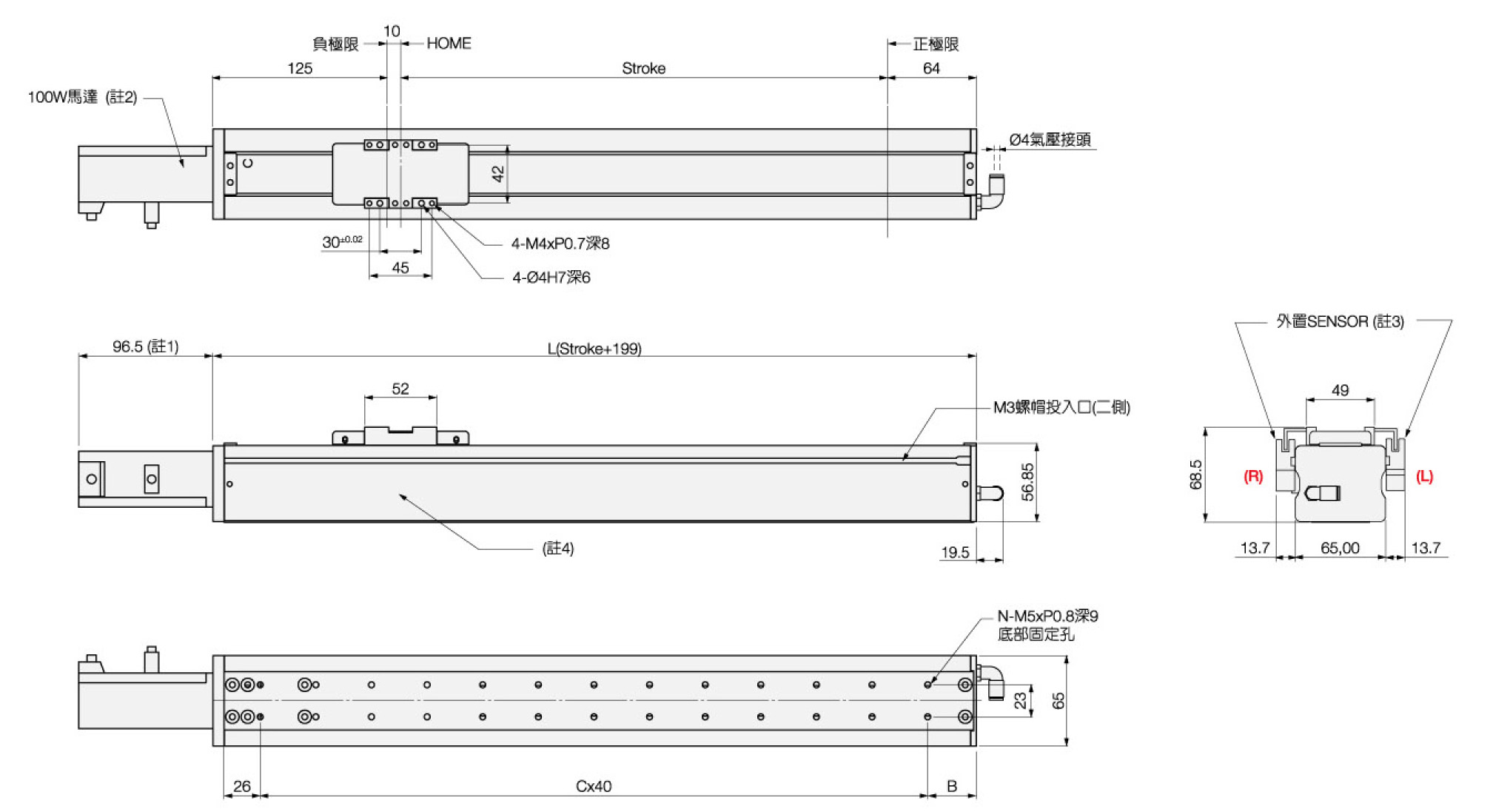

JDBNS-65 直接式規格表-1
1. 長度依馬達不同而變更 and the motor lid is optional accessory
2. 適用馬達: 50W, 100W
3. 外置SENSOR安裝(可選擇R右側或L左側)
4. Take off the side cover, then brush the chassis grease on the ball screw.
SENSOR 出線號數如下：
- +LS
- HOME
- -LS
JDBNS-65 間接式規格表-2L
1. 適用馬達: 50W, 100W
2. 外置SENSOR安裝(R右側)
3. Take off the side cover, then brush the chassis grease on the ball screw.
SENSOR 出線號數如下：
- +LS
- HOME
- -LS
JDBNS-65 間接式規格表-2R
1. 適用馬達: 50W, 100W
2. 外置SENSOR安裝(L左側)
3. Take off the side cover, then brush the chassis grease on the ball screw.
SENSOR 出線號數如下：
- +LS
- HOME
- -LS
JDBNS-65 間接式規格表-2B
1. 適用馬達: 50W, 100W
2. 外置SENSOR安裝(可選擇R右側或L左側)
3. Take off the side cover, then brush the chassis grease on the ball screw.
SENSOR 出線號數如下：
- +LS
- HOME
- -LS
