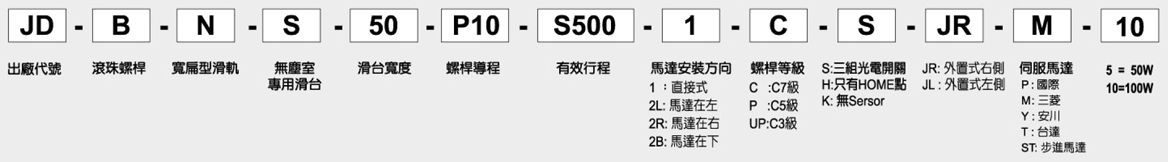

產品介紹
| 適用馬達 | AC-100W / 220V | |||
|---|---|---|---|---|
| 滑軌與滑塊 | MRU12 WN 寬扁型滑軌 | |||
| 額定扭矩 | 0.32 N.m | |||
| 重覆精度 | ± 0.01mm | |||
| 滾珠螺桿外徑 (mm) | ø12, ø16 | |||
| 螺桿導程 (mm) | 2 | 5 | 10 | |
| 最高速度 (mm/sec) | 100 | 250 | 500 | |
| 最大荷重 (kg) | 水平 | 16 | 14 | 10 |
| 垂直 | 10 | 8 | 5 | |
| 光電開關 | 型號 672 x 3 pcs | |||
| 負載力矩表 (N.m) |  Ma: 30.1 N.m |
|||
 Ma: 17.5 N.m |
||||
 Ma: 17.5 N.m |
||||

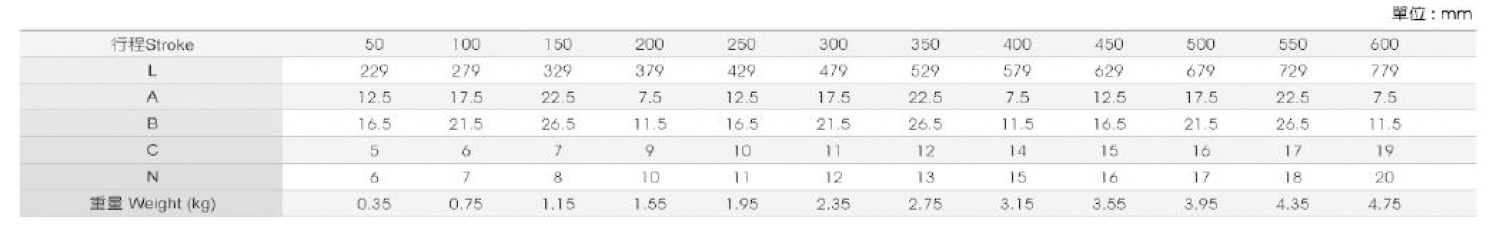

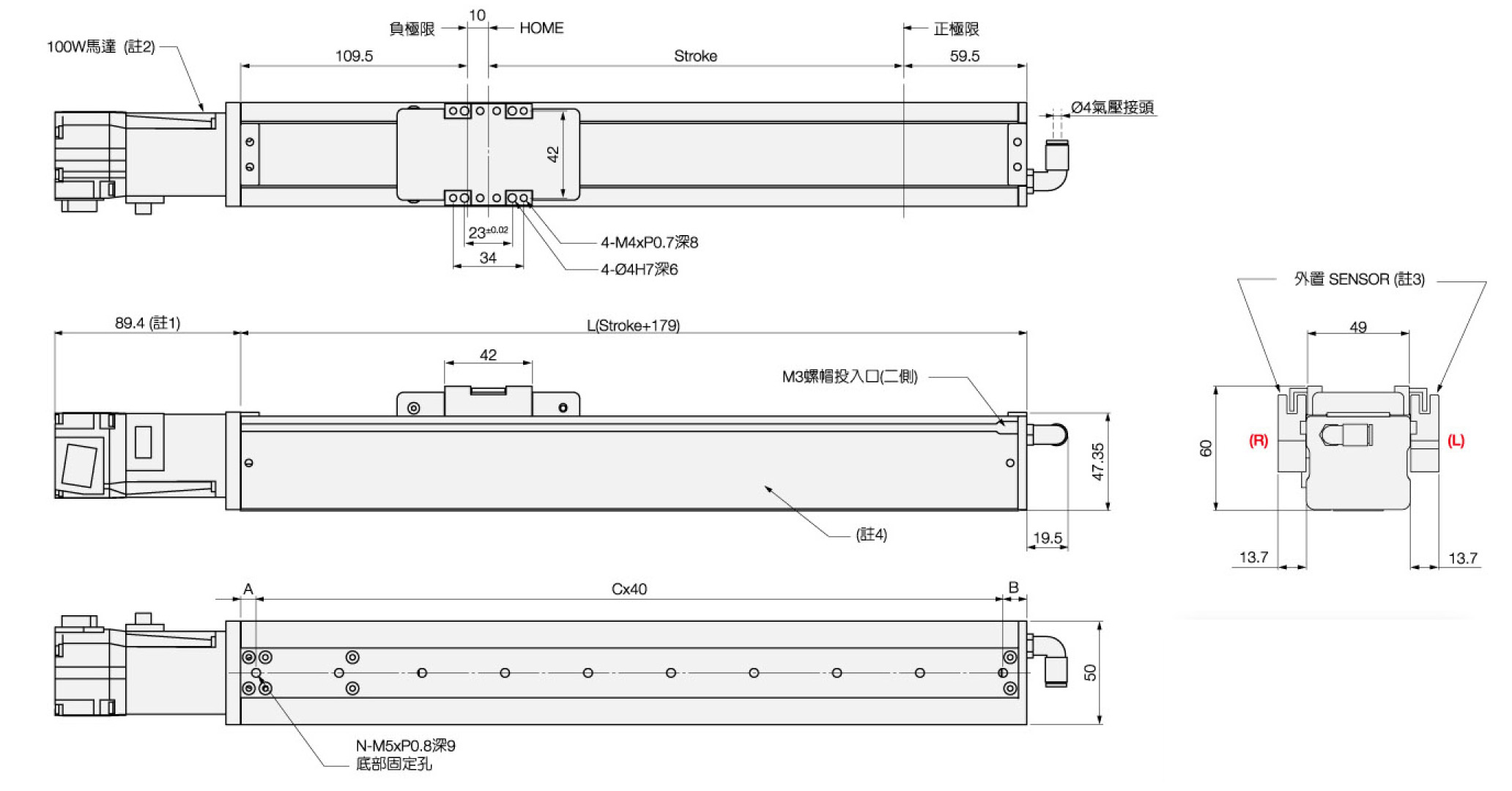

JDBNS-50 直接式規格表-1
1. 長度依馬達不同而變更 and the motor lid is optional accessory
2. 適用馬達: 50W, 100W
3. 外置SENSOR安裝(可選擇R右側或L左側)
4. Take off the side cover, then brush the chassis grease on the ball screw.
SENSOR 出線號數如下：
- +LS
- HOME
- -LS

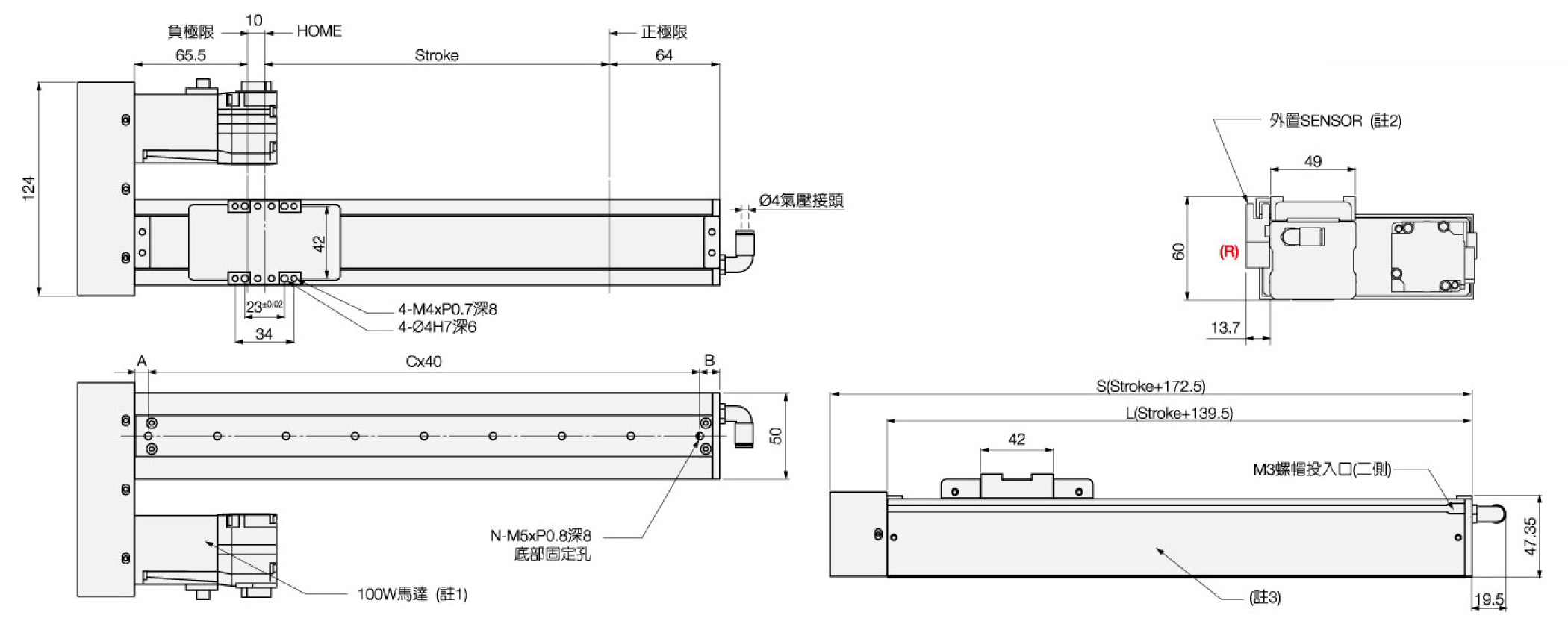

JDBNS-50 間接式規格表-2L
1. 適用馬達: 50W, 100W
2. We install the sensor on the (right side )
3. Take off the side cover, then brush the chassis grease on the ball screw.
SENSOR 出線號數如下：
- +LS
- HOME
- -LS

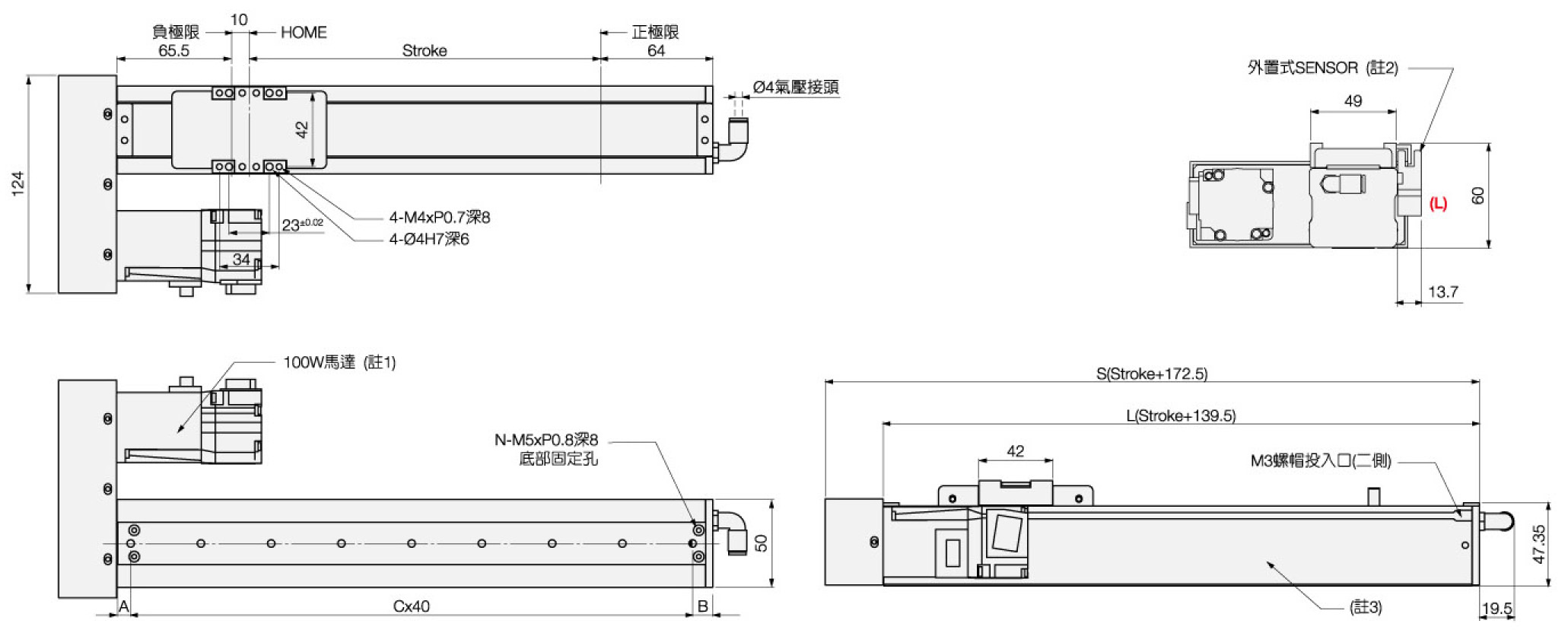

JDBNS-50 間接式規格表-2R
1. 適用馬達: 50W, 100W
2. We install the sensor on the (left side )
3. Take off the side cover, then brush the chassis grease on the ball screw.
SENSOR 出線號數如下：
- +LS
- HOME
- -LS

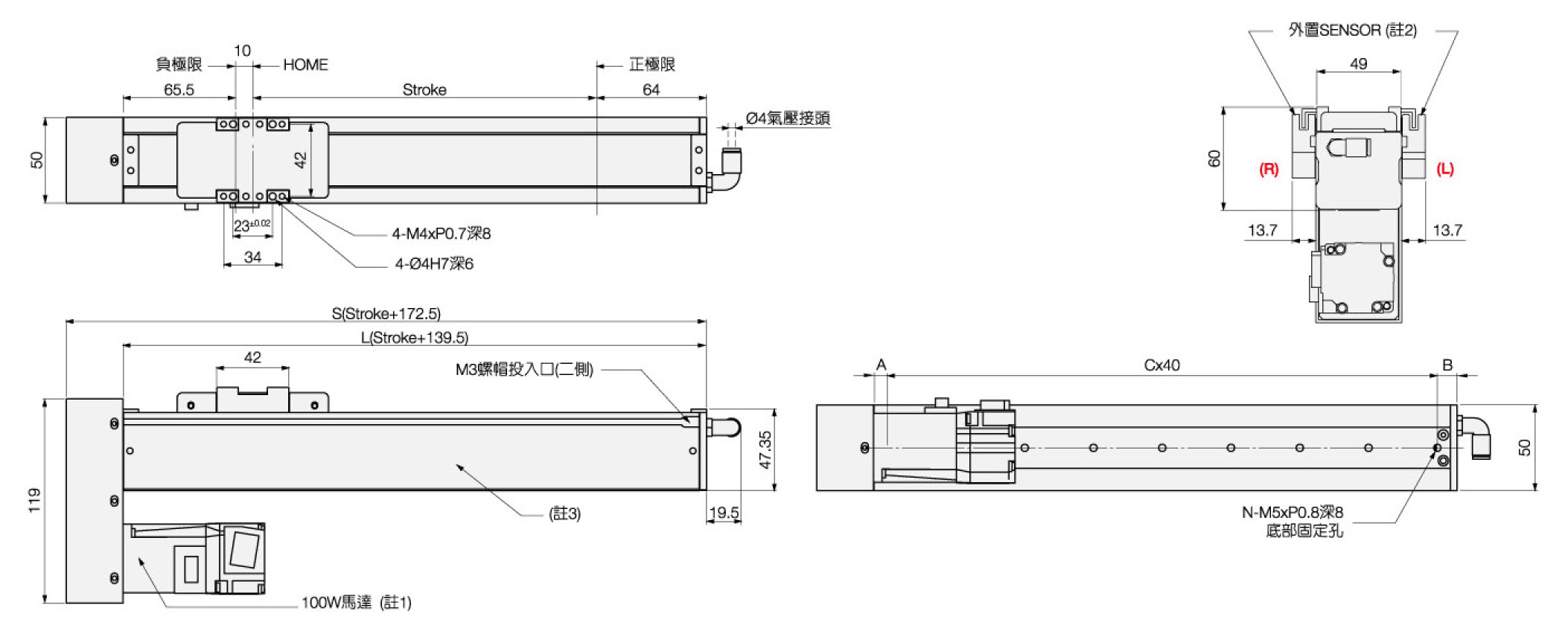

JDBNS-50 間接式規格表-2B
1. 適用馬達: 50W, 100W
2. 外置SENSOR安裝(可選擇R右側或L左側)
3. Take off the side cover, then brush the chassis grease on the ball screw.
SENSOR 出線號數如下：
- +LS
- HOME
- -LS
