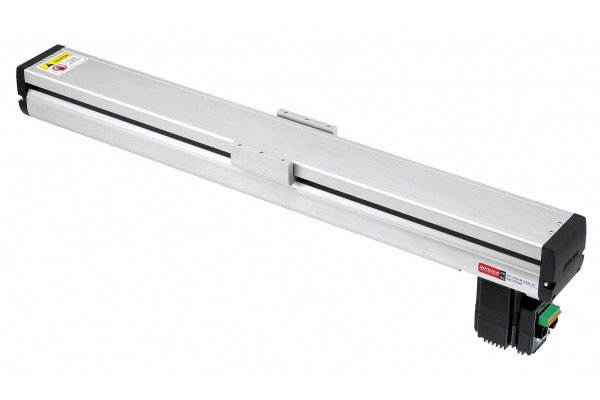

Belt Driven Slide (Flat Slides) JDTN-80
Dust-proof Standard Type
Motor Capacity: Stepping Motor
Prev Next Inquiry
Product Introduction
Dust-proof Standard Type 2 Schrittmotor MPK-2569-03A
Slide Track and Slide MR15 WL Flat Slide
Specified Torque 1.3 N.m
Repetitive Precision ± 0.04mm/M
External Diameter of Ball Screw (mm) Plastic Belt / Width: 11mm
Pitch Lead Screw (mm) 45
Highest speed (mm/sec) 800
Max. Weight (kg) Horizontal 12
Vertical -
Sensor Model No. 671 x 3 pcs
Load Torque (N.m)  Ma: 81N.m
 Ma: 35.2 N.m
 Ma: 35.2 N.m

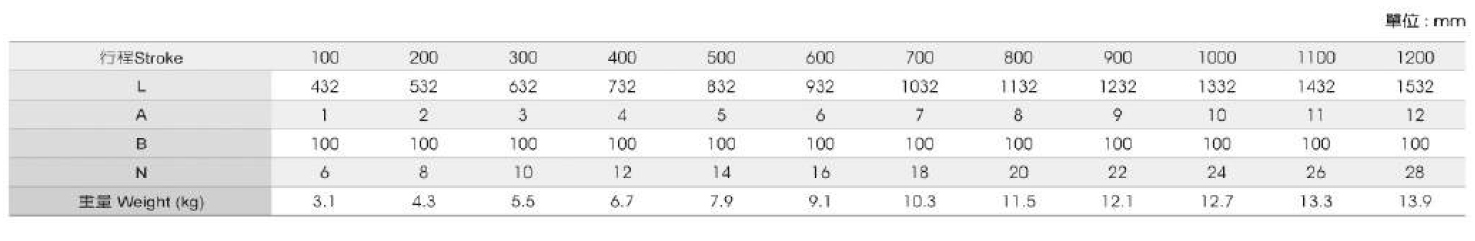

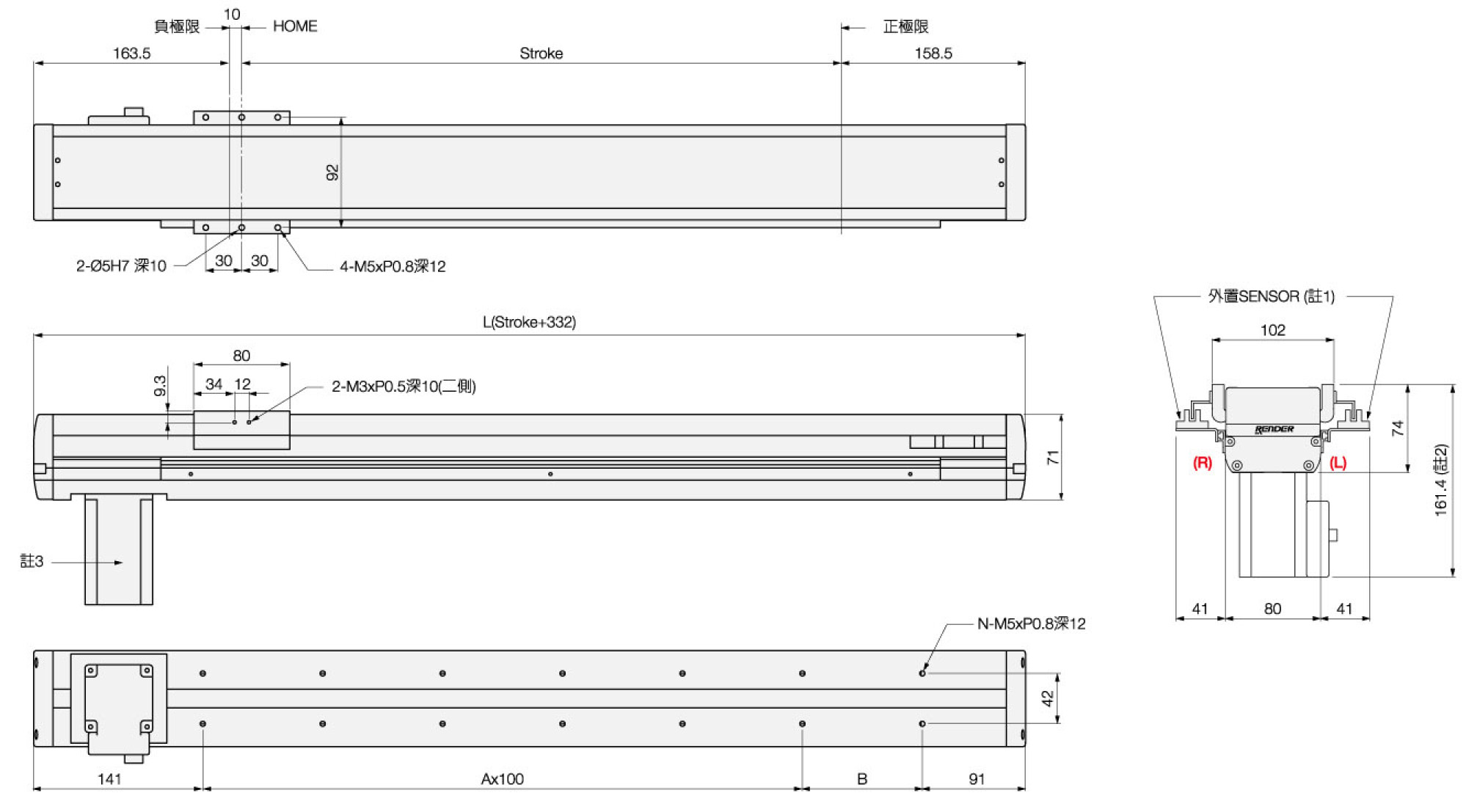

JDTN-80 Specification-2B

1. We install the sensor outside (right or left side )
2. 1. The dimension of machine changes according to different motor.
3. Demonstration of the stepping motor. Applicable motor:100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
