Belt Driven Slide (4 slides) JDT-130
Dust-proof Standard Type
Motor Capacity: 750W
Prev Next Inquiry

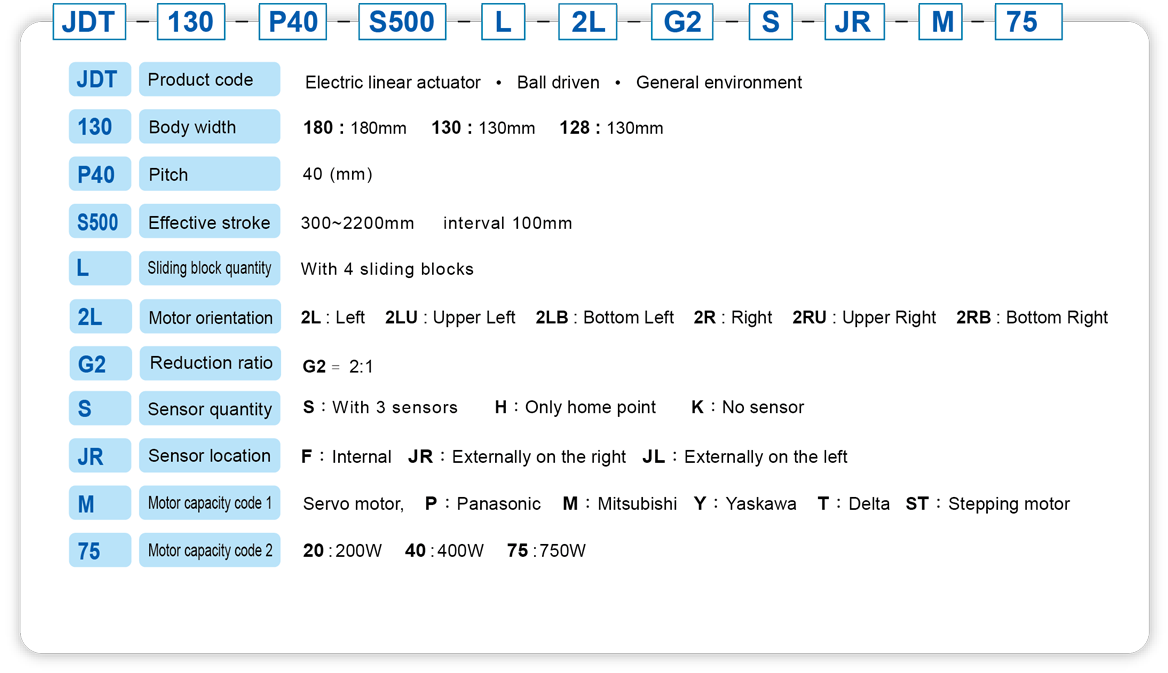

Product Introduction
Applicable Motor AC-750W / 220V AC-400W / 220V
Slide Track and Slide 15mm 2 slide tracks, 4 slides
Specified Torque 2.4 N.m 1.3 N.m
Repetitive Precision ± 0.04mm/M
External Diameter of Ball Screw (mm) PU Steel Wire Belt/ Width: 25mm
Pitch Lead Screw (mm) 40
Highest speed (mm/sec) 2000
Max. Weight (kg) Horizontal 42 24
Vertical -
Sensor Model No. 674 x 3 pcs / 671 x 3 pcs
Load Torque (N.m)  Ma: 126 N.m
 Ma: 109.2 N.m
 Ma: 109.2 N.m
JDT-130 Specification-2L

1. We install the sensor outside (right or left side )
2. Applicable motor: 200W, 400W, 750W
3. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDT-130 Specification-2LU

1. We install the sensor outside (right or left side )
2. Applicable motor: 200W, 400W, 750W
3. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDT-130 Specification-2LB

1. We install the sensor outside (right or left side )
2. Applicable motor: 200W, 400W, 750W
3. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDT-130 Specification-2R

1. We install the sensor outside (right or left side )
2. Applicable motor: 200W, 400W, 750W
3. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDT-130 Specification-2RU

1. We install the sensor outside (right or left side )
2. Applicable motor: 200W, 400W, 750W
3. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDT-130 Specification-2RB

1. We install the sensor outside (right or left side )
2. Applicable motor: 200W, 400W, 750W
3. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS
