Name: Belt Driven Slide (Flat Slides)
Brand: Jem Dar Precision Co., Ltd.
SKU: JDTN-65
Availability: InStock

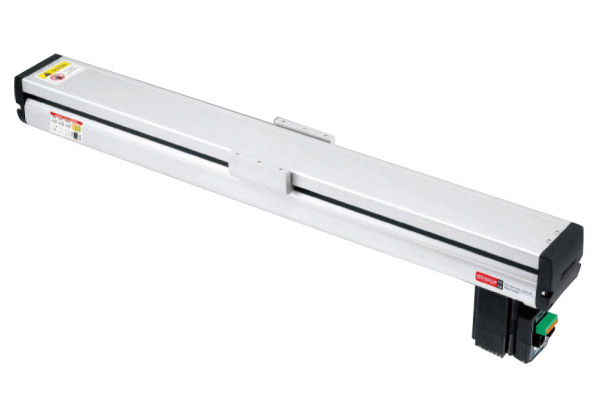

Belt Driven Slide (Flat Slides) JDTN-65

Dust-proof Standard Type
Motor Capacity: Stepping Motor

Prev Next Inquiry

Product Introduction

Feature
2B

Applicable Motor		2 Stepping Motor MPK268-03A
Slide Track and Slide		MR12 WL Flat Slide Track
Specified Torque		1.3 N.m
Repetitive Precision		± 0.04 mm/M
External Diameter of Ball Screw		Plastic Belt / Width: 9mm
Pitch Lead Screw		45 mm
Highest speed		800 mm/sec
Max. Weight	Horizontal	8 kg
Max. Weight	Vertical	-
Sensor		Model No. 674 x 3 pcs
Load Torque (N.m)		Ma: 30.1 N.m
		Ma: 17.5 N.m
		Ma: 17.5 N.m

Applicable Motor		2相微 Stepping Motor MPK268-03A
Slide Track and Slide		MR12 WL Flat Slide Track
Specified Torque		1.3 N.m
Repetitive Precision		± 0.04mm/M
External Diameter of Ball Screw (mm)		Plastic Belt / Width: 9mm
Pitch Lead Screw (mm)		45
Highest speed (mm/sec)		800
Max. Weight (kg)	Horizontal	8
Max. Weight (kg)	Vertical	-
Sensor		Model No. 674 x 3 pcs
Load Torque (N.m)		Ma: 30.1 N.m
		Ma: 17.5 N.m
		Ma: 17.5 N.m

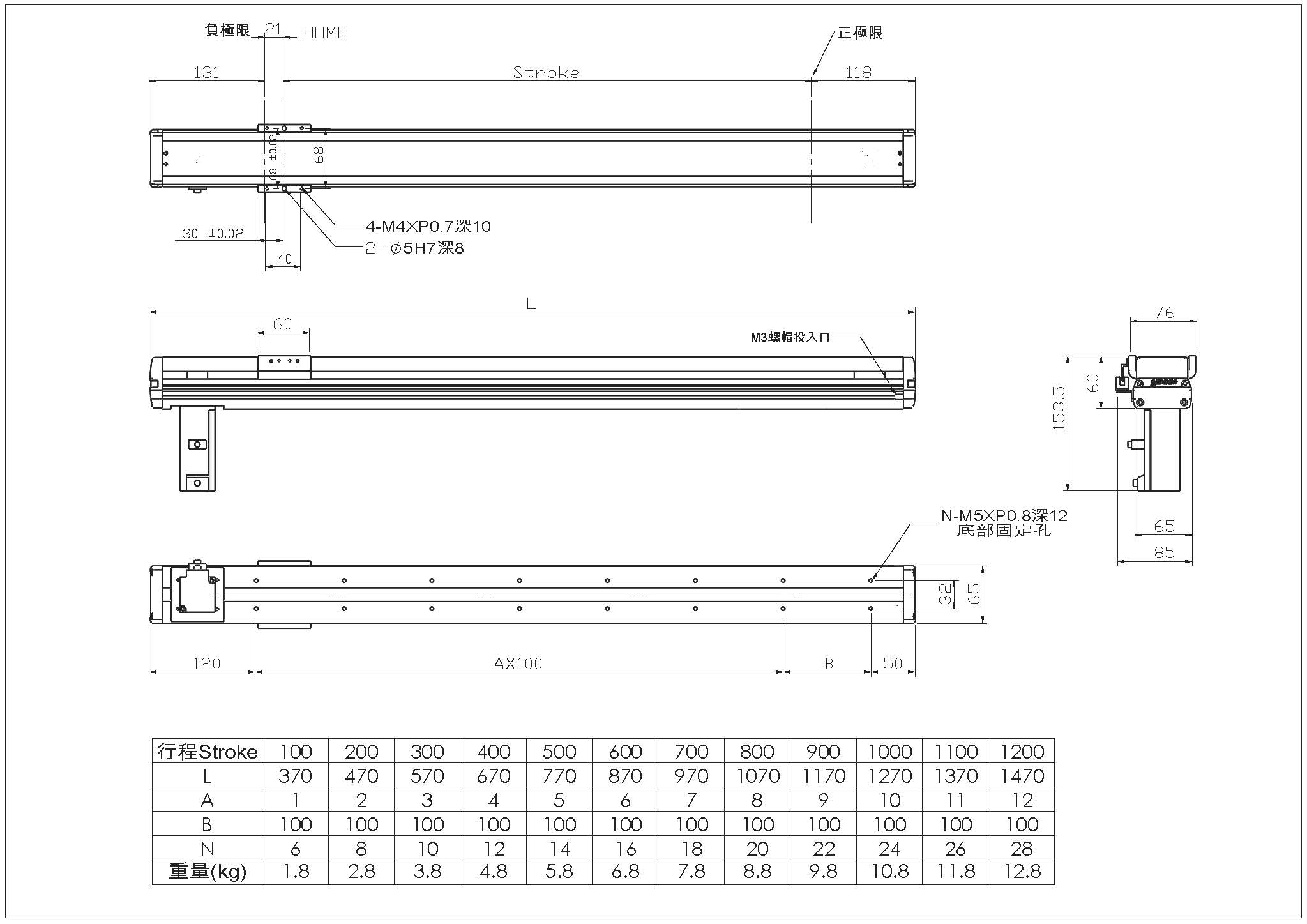

JDTN-65 Specification-2B

1. We install the sensor outside (right or left side )
2. The dimension of machine changes according to different motor
3. Demonstration of the stepping motor. Application motor: 100W

SENSOR：
