Ball Screw Driven Slide (4 slides)

Fully dense ball screw slide table (4 sliders)

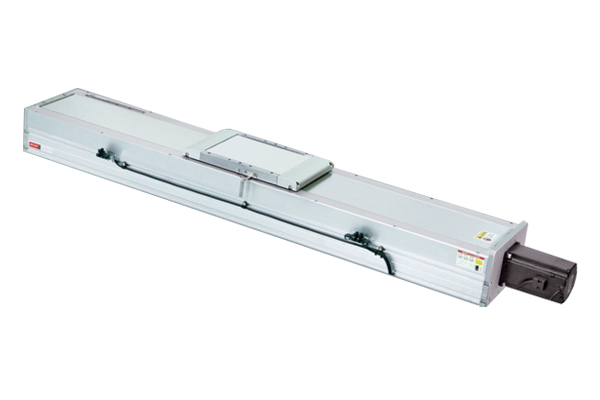

Ball Screw Driven Slide (4 slides) JDBS-210

Dust-proof Type for Cleanroom
Motor Capacity: 1000W

Prev Inquiry
Product Introduction
Applicable Motor AC-220W/ 1000W
Slide Track and Slide 25 mm 2 Slide Tracks, 4 Slides
Specified Torque 3.2 N.m
Repetitive Precision ± 0.01 mm/M
External Diameter of Ball Screw ø20 mm, ø25 mm, ø32 mm, ø40 mm
Pitch Lead Screw 5 mm 10 mm 20 mm 25 mm 32 mm 40 mm
Highest speed 250 mm/sec 500 mm/sec 800 mm/sec 1250 mm/sec 1000 mm/sec 1800 mm/sec
Max. Weight Horizontal 210 150 110 75 50 32
Vertical 80 65 38 25 18 15
Sensor Model No. 671 x 3 pcs
Static allowable load inertia
 MY 5570 N.m
MP 5570 N.m
MR 12100 N.m
JDBS-210 Forward load-free
Static Load Rating 117426 N.m
Dynamic rated load 6895 N.m
JDBS-210 Specification of Direct Type-1

1. The dimension of machine changes according to different motor
2. External centralized oil filling
3. We install the sensor outside(right or left side)
4. Applicable motor: 400W, 750W, 1000W

SENSOR：

  1. +LS
  2. HOME
  3. -LS

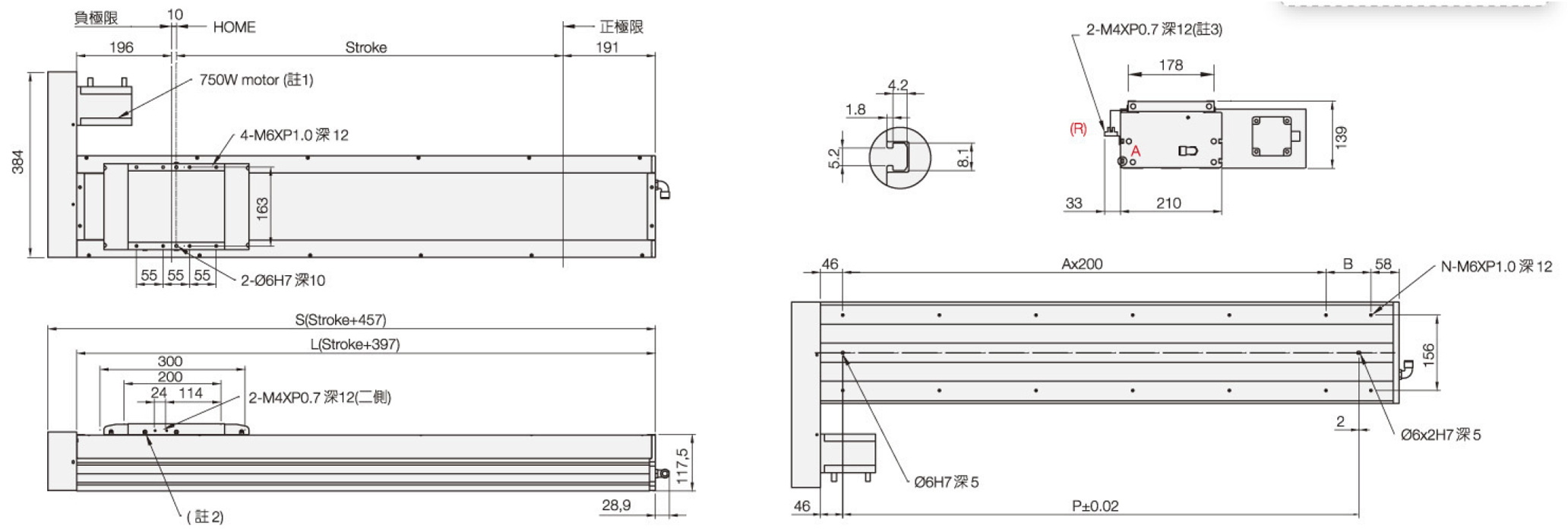

JDBS-210 Specification of Indirect Type-2L

1. Applicable motor: 400W, 750W, 1000W
2. External centralized oil filling
3. We install the sensor on the(right side)

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBS-210 Specification of Indirect Type-2R

1. Applicable motor: 400W, 750W, 1000W
2. External centralized oil filling
3. We install the sensor on the(left side)

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBS-210 Specification of Indirect Type-2B

1. Applicable motor: 400W, 750W, 1000W
2. External centralized oil filling
3. We install the sensor outside(right or left side)

SENSOR：

  1. +LS
  2. HOME
  3. -LS
