Ball Screw Driven Slide (4 slides)

JDBS-130 Ball Screw Driven Slide (4 slides)

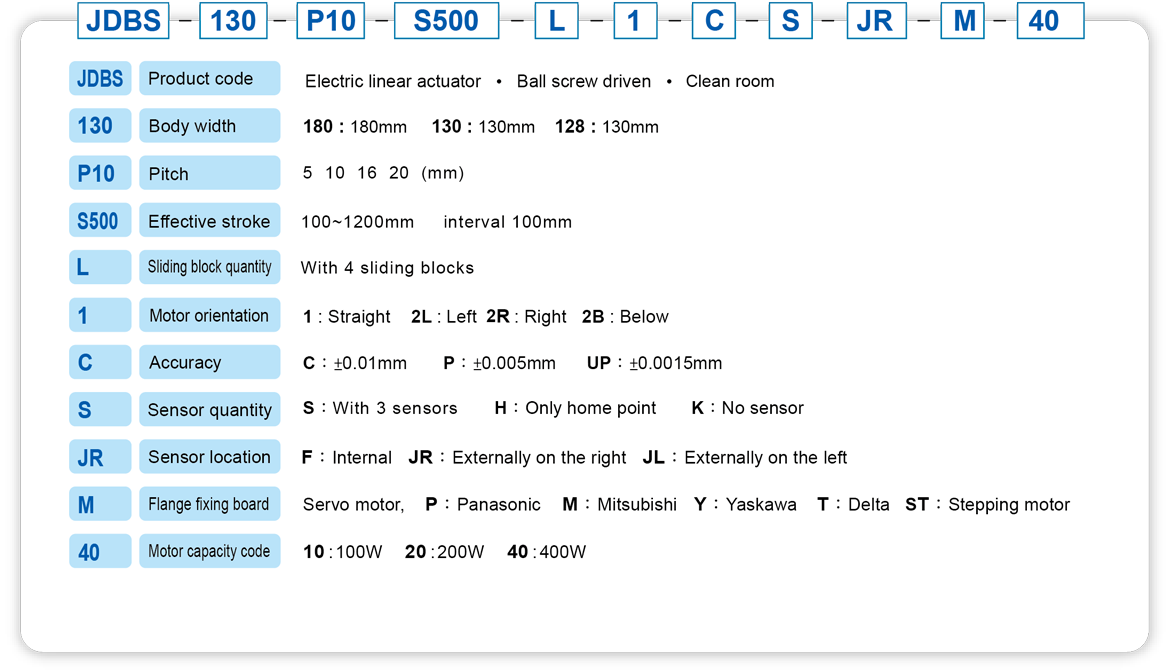

Ball Screw Driven Slide (4 slides) JDBS-130

Dust-proof Type for Cleanroom
Motor Capacity: 400W

Prev Next Inquiry
Product Introduction
Applicable Motor AC-400W / 220V
Slide Track and Slide 15mm 2Slide Tracks, 4 Slides
Specified Torque 1.3 N.m
Repetitive Precision ± 0.01 mm
External Diameter of Ball Screw ø16 mm, ø20 mm
Pitch Lead Screw 5 mm 10 mm 16 mm 20 mm
Highest speed 250 mm/sec 500 mm/sec 800 mm/sec 1000 mm/sec
Max. Weight Horizontal 85 kg 60 kg 45 kg 35 kg
Vertical 35 kg 20 kg 14 kg 12 kg
Sensor Model No. 674 x 3 pcs / 671 x 3 pcs
Load Torque  Ma: 126 N.m
 Ma: 109.2 N.m
 Ma: 109.2 N.m
JDBS-130 Specification of Direct Type-1

1. The dimension of machine changes according to different motor and the motor lid is optional accessory
2. When you fill oil the sensor need to be back to home coordinate
3. We install the sensor outside (right or left side)
4. Applicable motor: 100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBS-130 Specification of Indirect Type-2L


1. When you fill oil the sensor need to be back to home coordinate
2. We install the sensor on the (right side)
3. Applicable motor: 100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBS-130 Specification of Indirect Type-2R


1. When you fill oil the sensor need to be back to home coordinate
2. We install the sensor on the (left side)
3. Applicable motor: 100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBS-130 Specification of Indirect Type-2B


1. When you fill oil the sensor need to be back to home coordinate
2. We install the sensor outside (right or left side)
3. Applicable motor: 100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
