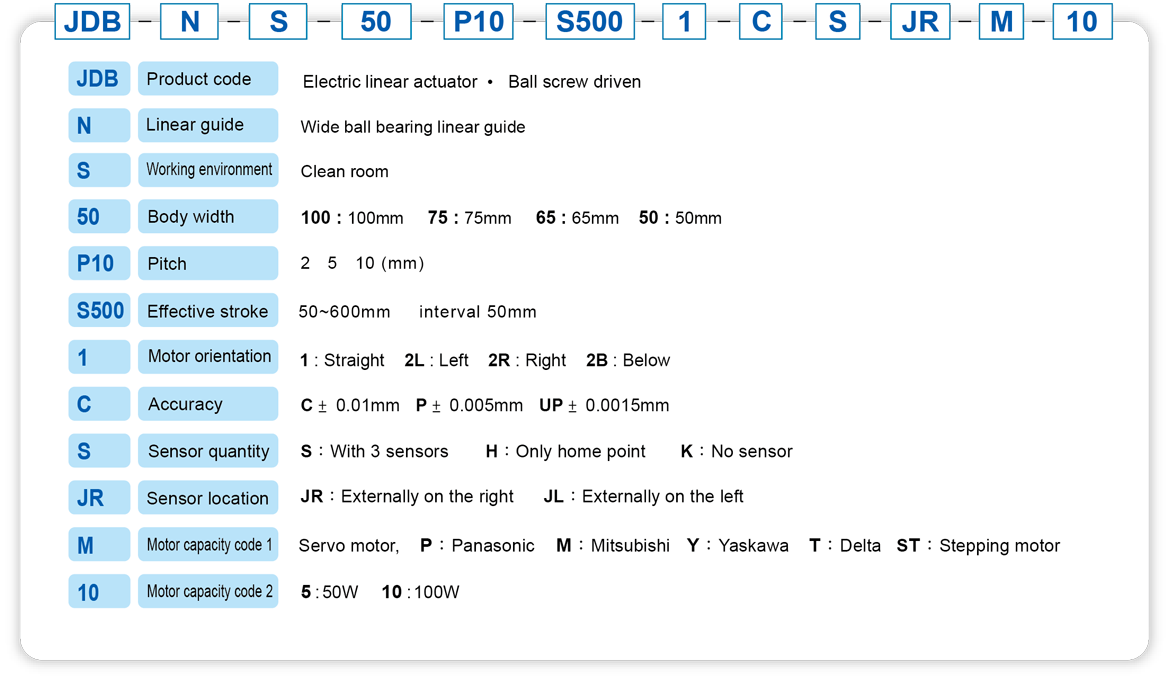

Ball Screw Driven Slide (Flat Slides) JDBNS-50
Dust-proof Type for Cleanroom
Motor Capacity: 100W
Prev Next Inquiry
Product Introduction
Applicable Motor AC-100W / 220V
Slide Track and Slide MRU12 WN breite flache Gleitschiene
Specified Torque 0.32 N.m
Repetitive Precision ± 0.01mm
External Diameter of Ball Screw (mm) ø12, ø16
Pitch Lead Screw (mm) 2 5 10
Highest speed (mm/sec) 100 250 500
Max. Weight (kg) Horizontal 16 14 10
Vertical 10 8 5
Sensor Model No. 672 x 3 pcs
Load Torque (N.m)  Ma: 30.1 N.m
 Ma: 17.5 N.m
 Ma: 17.5 N.m
JDBNS-50 Specification of Direct Type-1

1. The dimension of machine changes according to different motor and the motor lid is optional accessory
2. Applicable motor: 50W, 100W
3. We install the sensor outside (right or left side )
4. Take off the side cover, then brush the chassis grease on the ball screw.

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBNS-50 Specification of Indirect Type-2L

1. Applicable motor: 50W, 100W
2. We install the sensor on the (right side )
3. Take off the side cover, then brush the chassis grease on the ball screw.

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBNS-50 Specification of Indirect Type-2R

1. Applicable motor: 50W, 100W
2. We install the sensor on the (left side )
3. Take off the side cover, then brush the chassis grease on the ball screw.

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBNS-50 Specification of Indirect Type-2B

1. Applicable motor: 50W, 100W
2. We install the sensor outside (right or left side )
3. Take off the side cover, then brush the chassis grease on the ball screw.

SENSOR：

  1. +LS
  2. HOME
  3. -LS
