Ball Screw Driven Slide (Flat Slides) JDBNS-65
Dust-proof Type for Cleanroom
Motor Capacity: 100W
Prev Next Inquiry

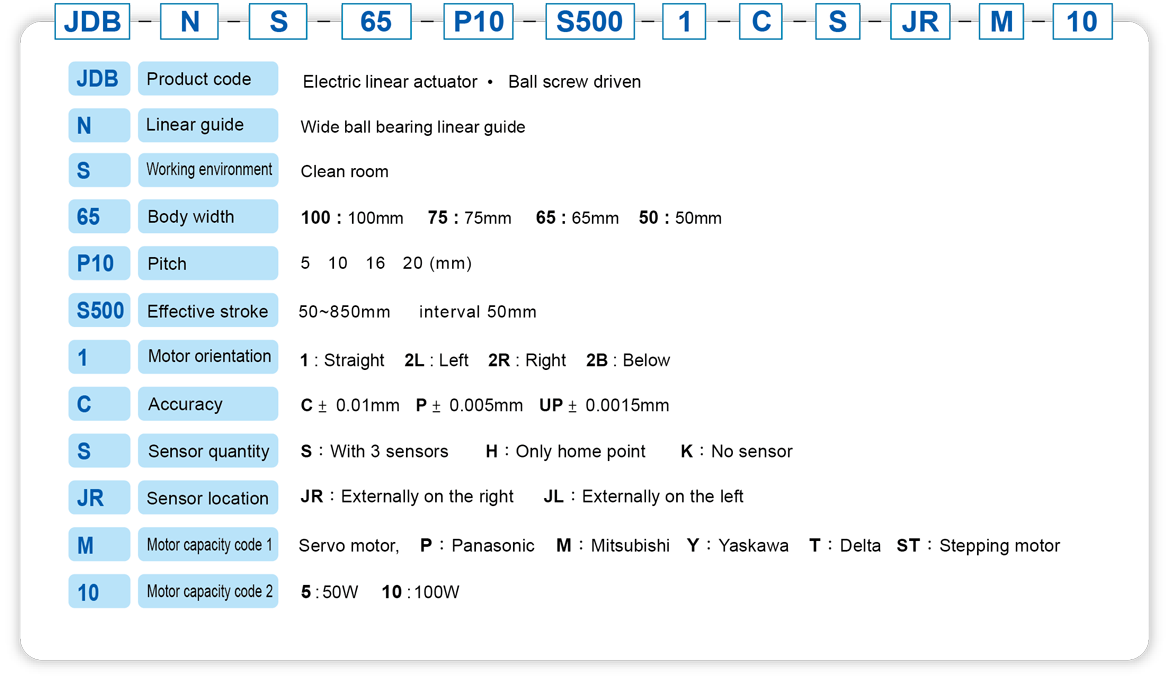

Product Introduction
Applicable Motor AC-100W / 220V
Slide Track and Slide MRU15 WN Flat Slide Track
Specified Torque 0.32 N.m
Repetitive Precision ± 0.01mm
External Diameter of Ball Screw (mm) ø12, ø16
Pitch Lead Screw (mm) 5 10 16 20
Highest speed (mm/sec) 250 500 800 1000
Max. Weight (kg) Horizontal 30 25 18 15
Vertical 17 12 10 8
Sensor Model No. 674 x 3 pcs
Load Torque (N.m)  Ma: 81 N.m
 Ma: 35.2 N.m
 Ma: 35.2 N.m
JDBNS-65 Specification of Direct Type-1

1. The dimension of machine changes according to different motor and the motor lid is optional accessory
2. Applicable motor: 50W, 100W
3. We install the sensor outside (right or left side )
4. Take off the side cover, then brush the chassis grease on the ball screw.

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBNS-65 Specification of Indirect Type-2L

1. Applicable motor: 50W, 100W
2. We install the sensor on the (right side)
3. Take off the side cover, then brush the chassis grease on the ball screw.

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBNS-65 Specification of Indirect Type-2R

1. Applicable motor: 50W, 100W
2. We install the sensor on the (left side)
3. Take off the side cover, then brush the chassis grease on the ball screw.

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDBNS-65 Specification of Indirect Type-2B

1. Applicable motor: 50W, 100W
2. We install the sensor outside (right or left side)
3. Take off the side cover, then brush the chassis grease on the ball screw.

SENSOR：

  1. +LS
  2. HOME
  3. -LS
