Electric Built-in Guideway Servo Ball Screw Actuator (No-covered Type / Light Load)

Standard Ball Screw Driven

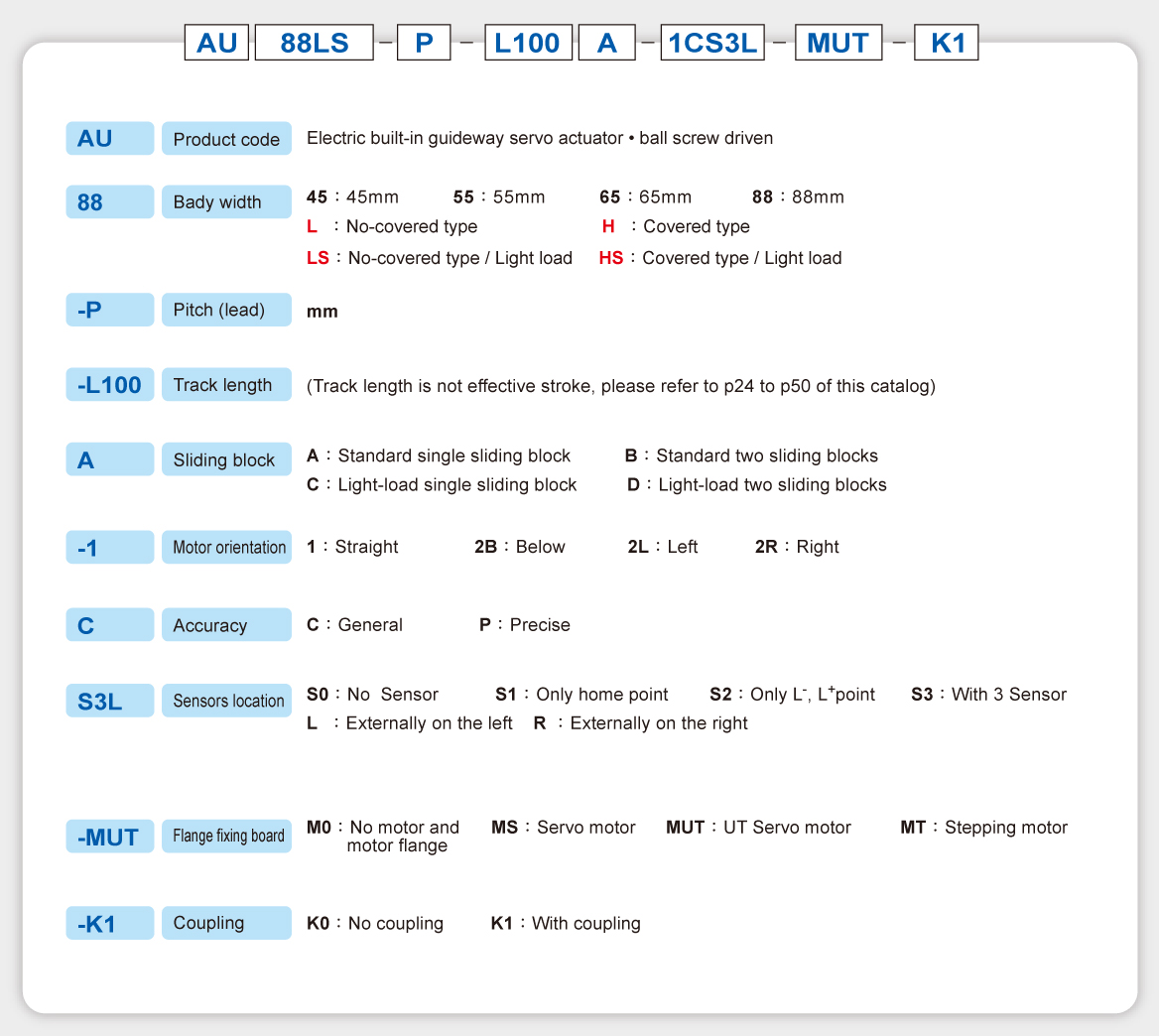

AU-88-LS Electric Built-in Guideway Servo Ball Screw Actuator (No-covered Type / Light Load)
Electric Built-in Guideway Servo Ball Screw Actuator (No-covered Type / Light Load) AU-88-LS
Prev Inquiry
Product Introduction
Motor capacity 200W, 400W
Pitch 5 mm 10 mm 20 mm
Dynamic rated load  2524 Ca N 2524 Ca N 2524 Ca N
Static rated load 34153 Coa N 34153 Coa N 34153 Coa N
Repeat precision Class C：±0.008 mm/ Class P：±0.003 mm
Horizontal thrust 56 kg 43 kg 24 kg
Vertical thrust 22 kg 13 kg 5.6 kg
Max. speed 290 mm/sec 580 mm/sec 1000 mm/sec
Shaft diameter of coupling(d1xd2) 6 mmx14 mm
AU-88-LS-1

AU-88-LS-2B

AU-88-LS-2L

AU-88-LS-2R
