Electric Linear Built-in Guideway Servo Ball Screw Actuator (No-covered type)

Standard Ball Screw Driven
AU-55-L Electric Linear Built-in Guideway Servo Ball Screw Actuator (No-covered type)
Electric Linear Built-in Guideway Servo Ball Screw Actuator (No-covered type) AU-55-L
Prev Next Inquiry

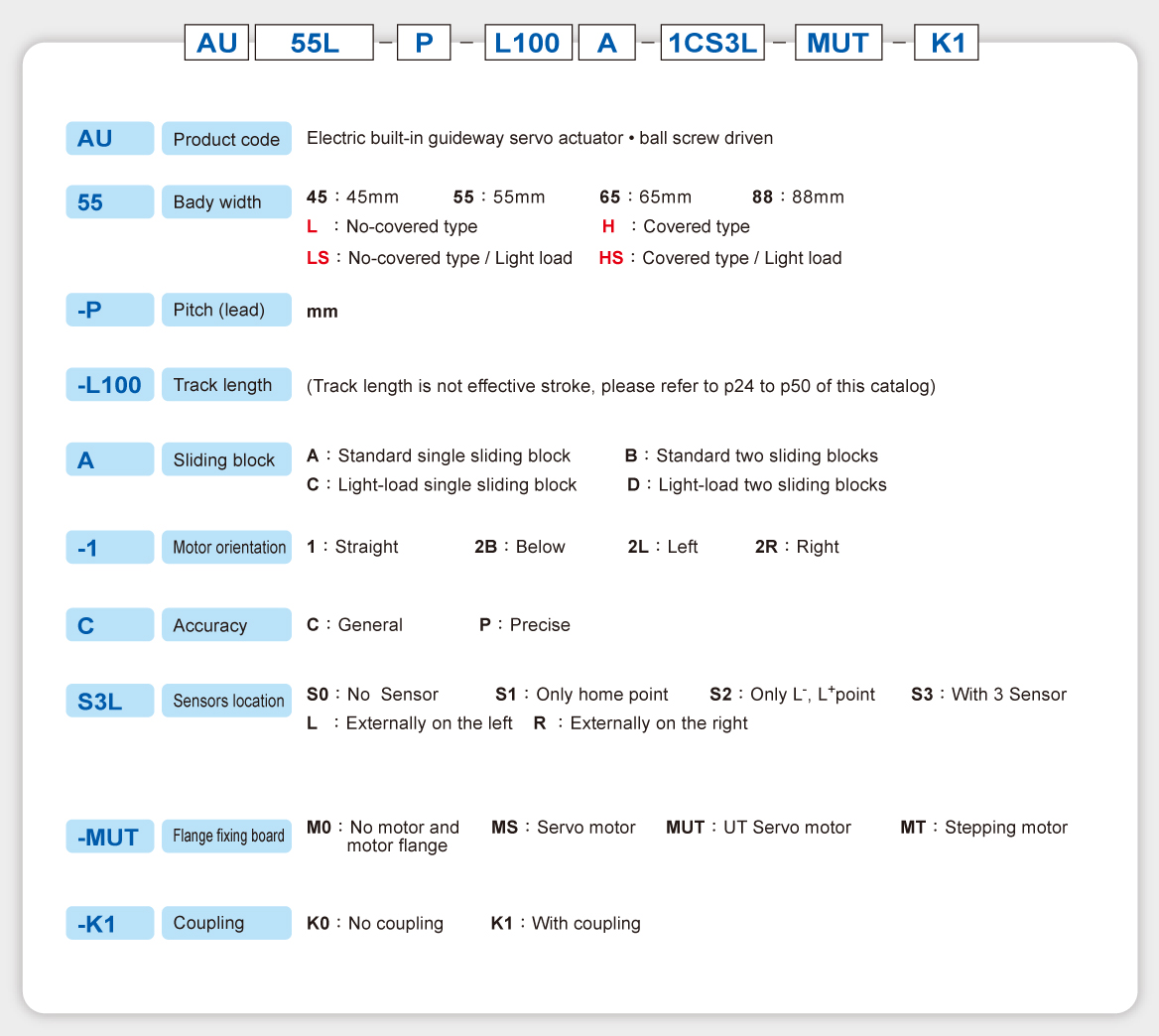

Product Introduction
Motor capacity 50 W
Pitch 2 mm 5 mm 10 mm
Dynamic rated load 1262 Ca N 1262 Ca N 1262 Ca N
Static rated load 16720 Coa N 16720 Coa N 16720 Coa N
Repeat precision Class C：±0.008 mm/ Class P：±0.003 mm
Horizontal thrust 40 kg 28 kg 15 kg
Vertical thrust 15 kg 9 kg 3.2 kg
Max. speed 120 mm/sec 290 mm/sec 580 mm/sec
Shaft diameter of coupling(d1xd2) 5 mmx6 mm
AU-55-L-1

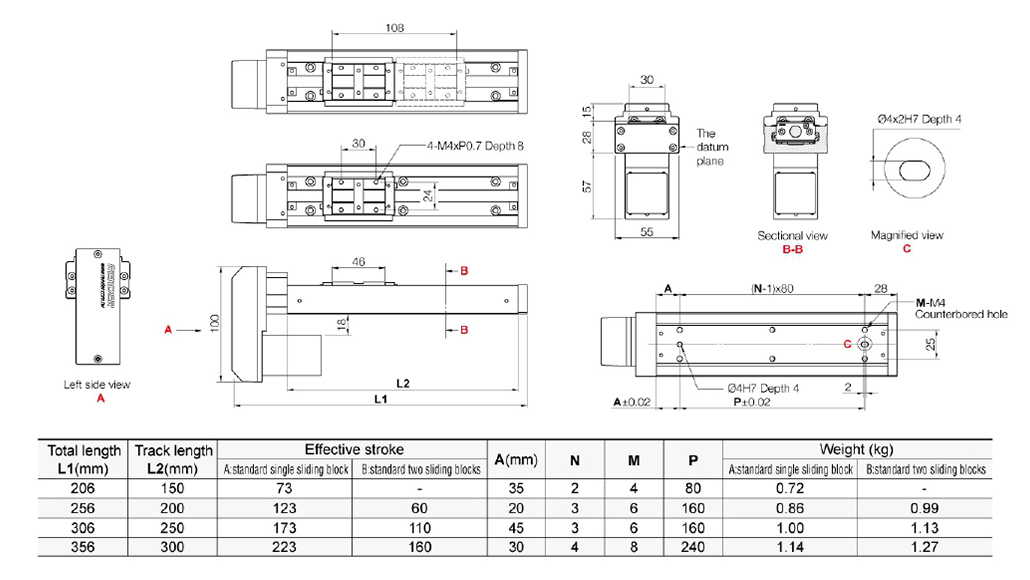

AU-55-L-2B

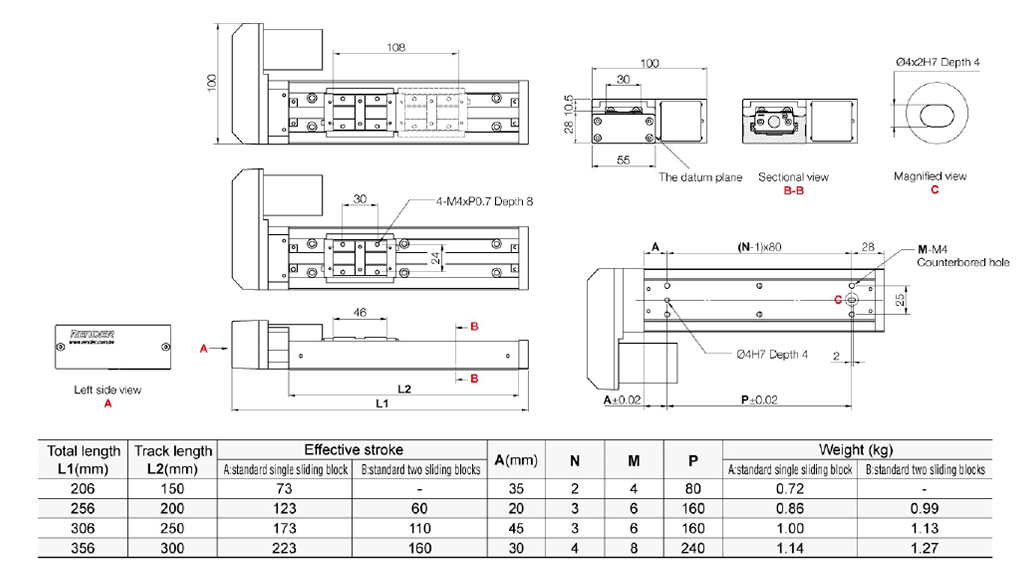

AU-55-L-2L
AU-55-L-2R
