Electric Linear Built-in Guideway Servo Ball Screw Actuator (No-covered type)

Standard Ball Screw Driven
AU-45-L Electric Linear Built-in Guideway Servo Ball Screw Actuator(No-covered type)
Electric Linear Built-in Guideway Servo Ball Screw Actuator (No-covered type) AU-45-L
Next Inquiry
Product Introduction
Motor capacity 30W, 50W
Pitch 1 mm 2.5 mm
Dynamic rated load 1081 Ca N 1081 Ca N
Static rated load 13583 Coa N 13583 Coa N
Repeat precision Class C：±0.008 mm / Class P：±0.003 mm
Horizontal thrust 24 kg 24 kg
Vertical thrust 3.5 kg 7.5 kg
Max. speed 60 mm/sec 150 mm/sec
Shaft diameter of coupling (d1xd2) 5 mm x 5 mm

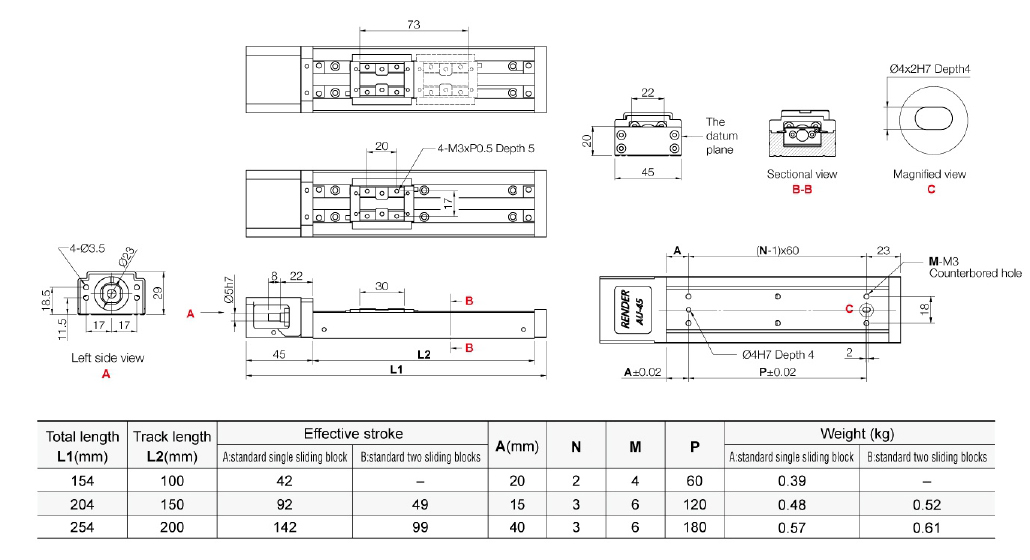

AU-45-L-1

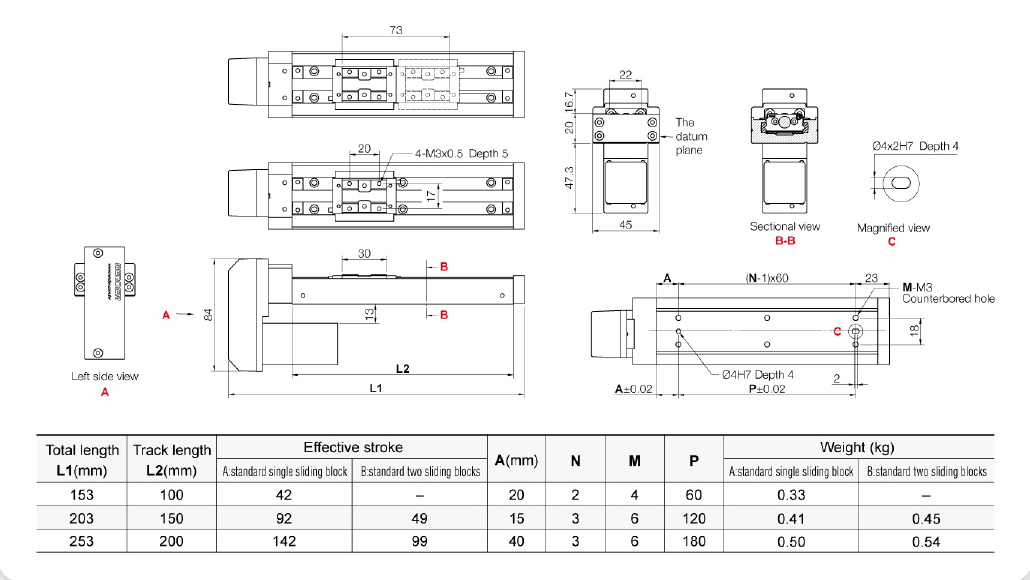

AU-45-L-2B
AU-45-L-2L

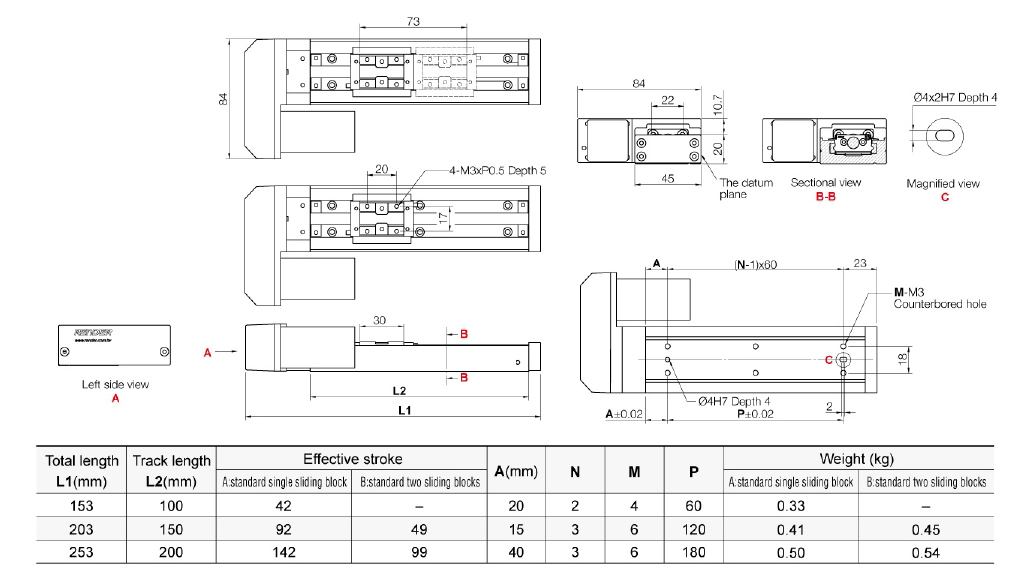

AU-45-L-2R
