Electric Linear Built-in Guideway Servo Ball Screw Actuator (No-covered type)

Standard Ball Screw Driven
AU-65-L Electric Linear Built-in Guideway Servo Ball Screw Actuator (No-covered type)
Electric Linear Built-in Guideway Servo Ball Screw Actuator (No-covered type) AU-65-L
Prev Next Inquiry

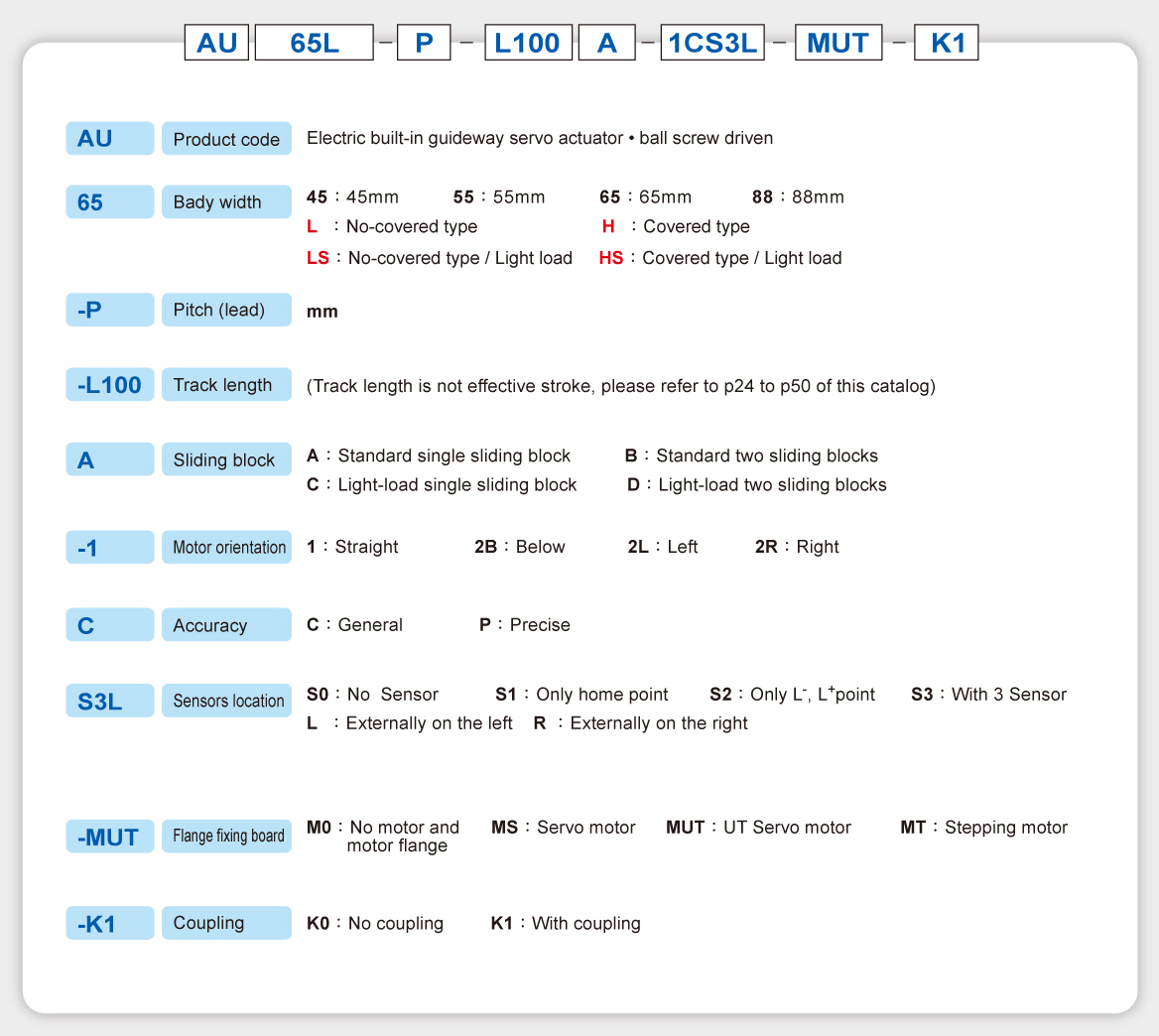

Product Introduction
Motor capacity 100 W
Pitch 5 mm 10 mm 20 mm
Dynamic rated load 2036 Ca N 2036 Ca N 2036 Ca N
Static rated load 29401 Coa N 29401 Coa N 29401 Coa N
Repeat precision Class C：±0.008 mm/ Class P：±0.003 mm
Horizontal thrust 45 kg 30  kg 10 kg
Vertical thrust 15 kg 10 kg 3.2 kg
Max. speed 290 mm/sec 580 mm/sec 1000 mm/sec
Shaft diameter of coupling(d1xd2) 5 mmx8 mm

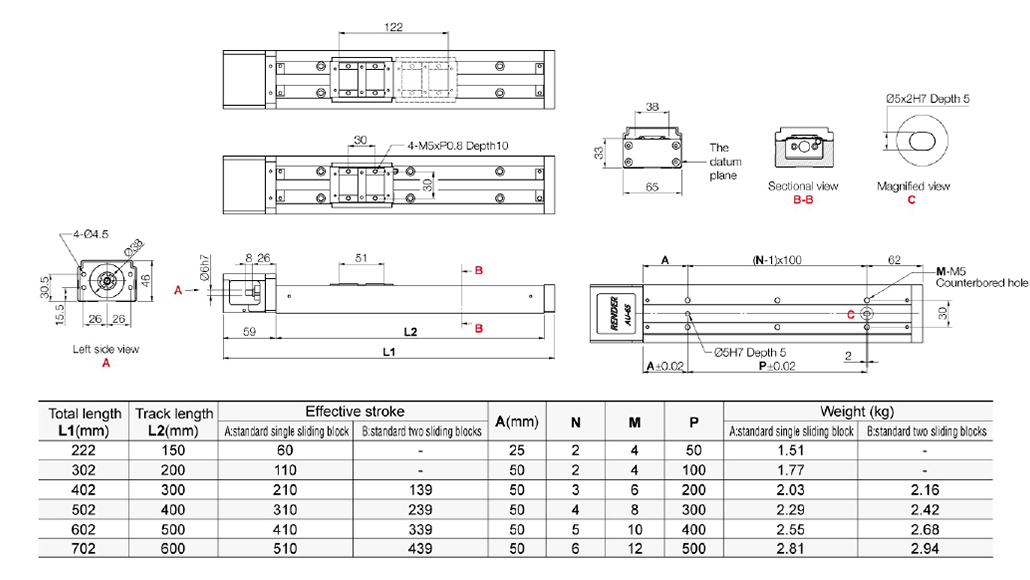

AU-65-L-1
AU-65-L-2B

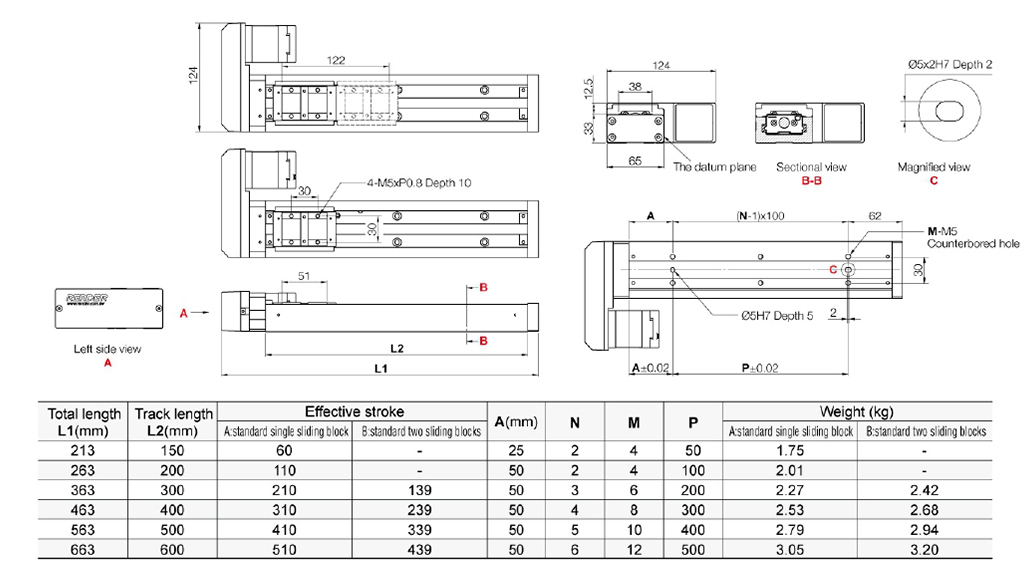

AU-65-L-2L
AU-65-L-2R
