| 適用馬達 | AC-1000W / 220V | AC-750W / 220V | |
|---|---|---|---|
| 滑軌與滑塊 | 20mm 2 Slide Tracks, 4 Slides | ||
| 額定扭矩 | 3.2 N.m | 2.4 N.m | |
| 重覆精度 | ± 0.04mm/M | ||
| 滾珠螺桿外徑 (mm) | PU Steel wire belt / Width：40mm | ||
| 螺桿導程 (mm) | 40 | ||
| 最高速度 (mm/sec) | 2000 | ||
| 最大荷重 (kg) | 水平 | 60 | 42 |
| 垂直 | - | ||
| 光電開關 | 型號 674 x 3 pcs | ||
| 負載力矩表 (N.m) |  Ma: 263.3 N.m |
||
 Ma: 242.5 N.m |
|||
 Ma: 242.5 N.m |
|||

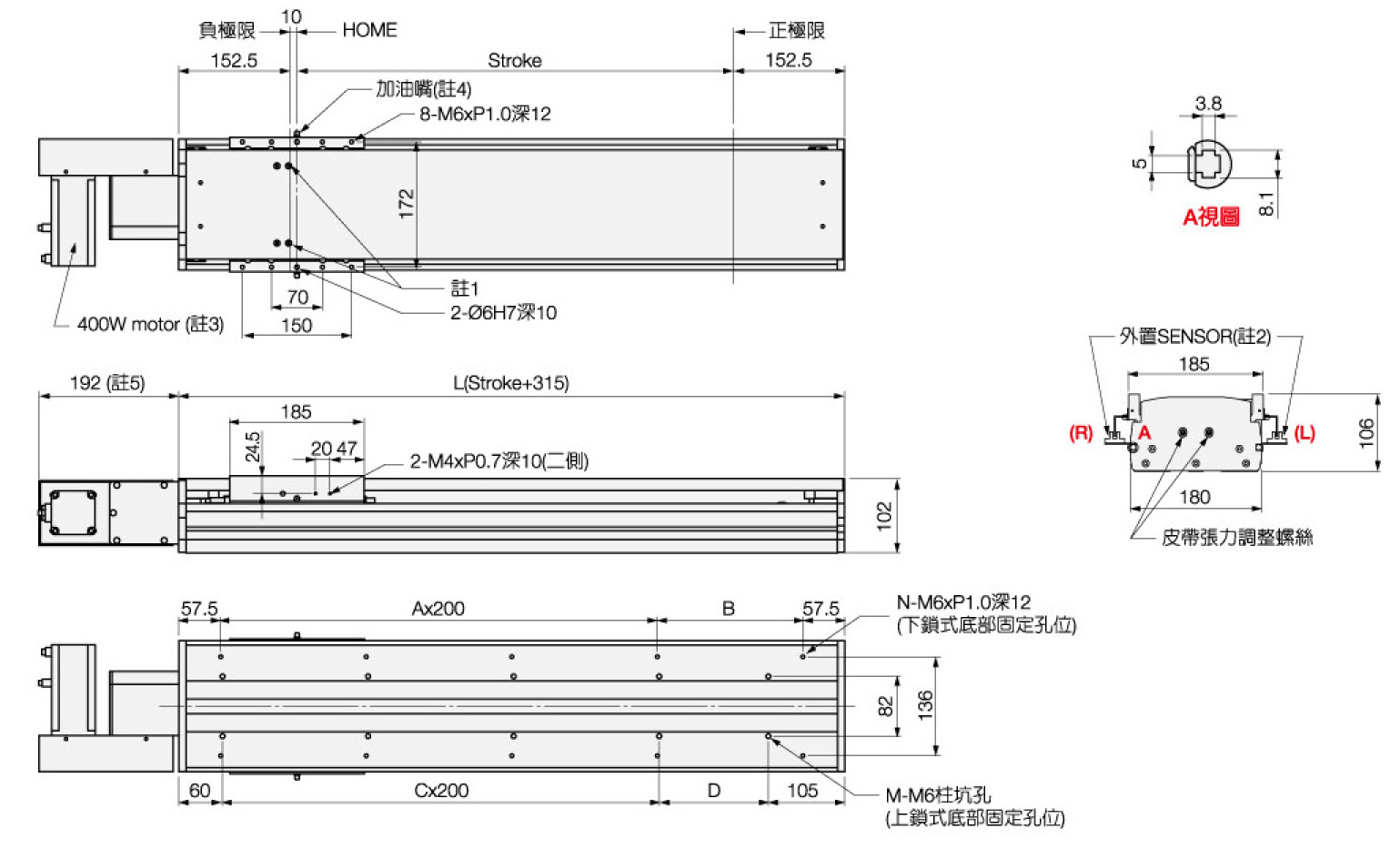

1. Due to the inner design, you can dismantle the motor lid (for long travel type), please choose one of the four fixed apertures and loose the screw of it. (Before your perform this action, make sure the sensor is back to home coordinate)
2. 外置SENSOR安裝(可選擇R右側或L左側)
3. 適用馬達: 200W, 400W, 750W, 1000W
4. The oiler is optional accessory
5. 長度依馬達不同而變更
SENSOR 出線號數如下：
- +LS
- HOME
- -LS

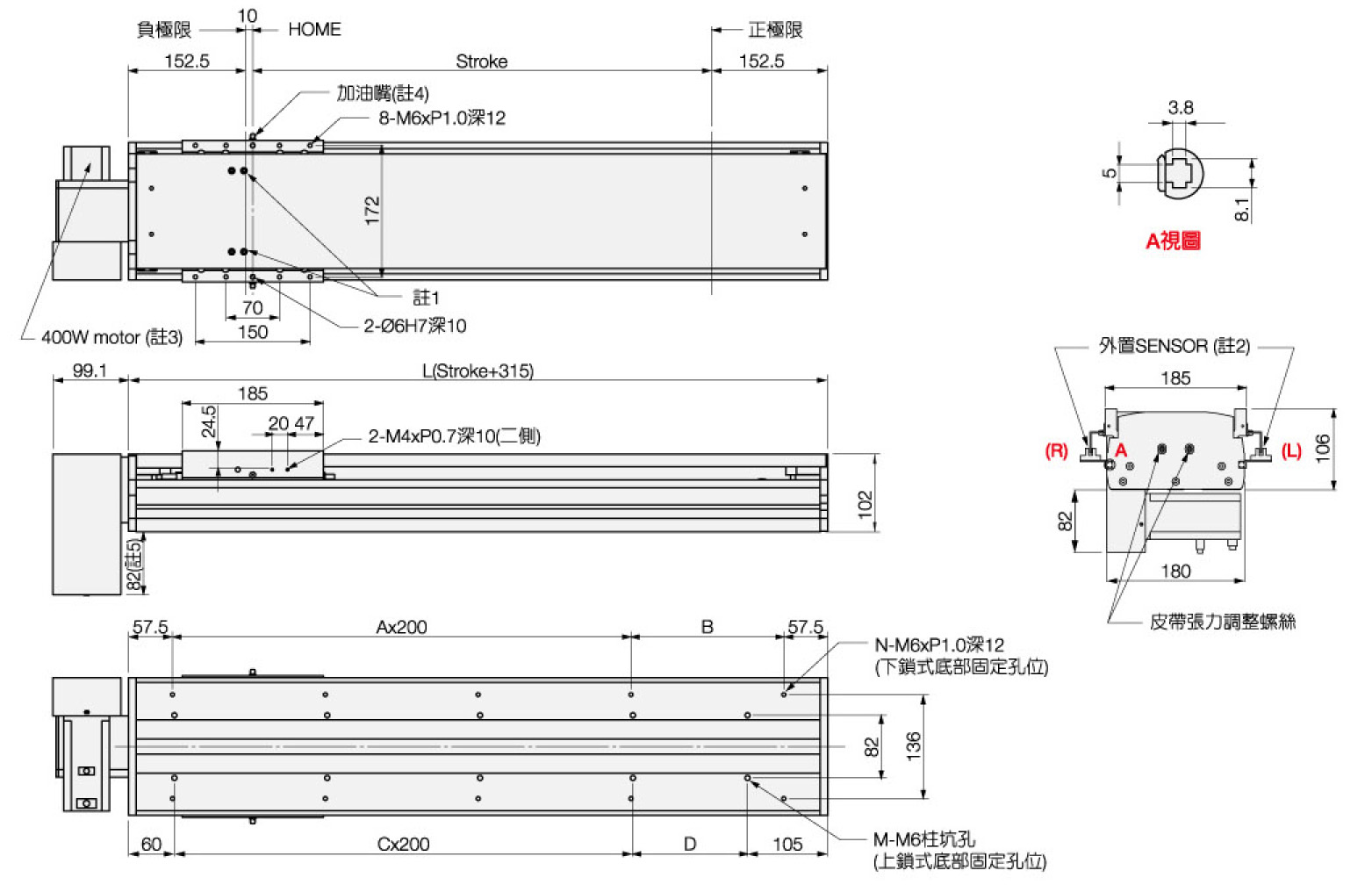

1. Due to the inner design, you can dismantle the motor lid (for long travel type), please choose one of the four fixed apertures and loose the screw of it. (Before your perform this action, make sure the sensor is back to home coordinate)
2. 外置SENSOR安裝(可選擇R右側或L左側)
3. 適用馬達: 200W, 400W, 750W, 1000W
4. The oiler is optional accessory
5. 長度依馬達不同而變更
SENSOR 出線號數如下：
- +LS
- HOME
- -LS
1. Due to the inner design, you can dismantle the motor lid (for long travel type), please choose one of the four fixed apertures and loose the screw of it. (Before your perform this action, make sure the sensor is back to home coordinate)
2. 外置SENSOR安裝(可選擇R右側或L左側)
3. 適用馬達: 200W, 400W, 750W, 1000W
4. The oiler is optional accessory
5. 長度依馬達不同而變更
SENSOR 出線號數如下：
- +LS
- HOME
- -LS
1. Due to the inner design, you can dismantle the motor lid (for long travel type), please choose one of the four fixed apertures and loose the screw of it. (Before your perform this action, make sure the sensor is back to home coordinate)
2. 外置SENSOR安裝(可選擇R右側或L左側)
3. 適用馬達: 200W, 400W, 750W, 1000W
4. The oiler is optional accessory
5. 長度依馬達不同而變更
SENSOR 出線號數如下：
- +LS
- HOME
- -LS
1. Due to the inner design, you can dismantle the motor lid (for long travel type), please choose one of the four fixed apertures and loose the screw of it. (Before your perform this action, make sure the sensor is back to home coordinate)
2. We install the sensor outside (right or left side )
3. Applicable motor: 200W, 400W, 750W, 1000W
4. The oiler is optional accessory
5. The dimension of machine changes according to different motor
SENSOR：
- +LS
- HOME
- -LS
1. Due to the inner design, you can dismantle the motor lid (for long travel type), please choose one of the four fixed apertures and loose the screw of it. (Before your perform this action, make sure the sensor is back to home coordinate)
2. We install the sensor outside (right or left side )
3. Applicable motor: 200W, 400W, 750W, 1000W
4. The oiler is optional accessory
5. The dimension of machine changes according to different motor
SENSOR：
- +LS
- HOME
- -LS
