Name: YZV vertikale 2-Achsen-Kombination
Brand: Jem Dar Precision Co., Ltd.
SKU: Baureihe YZV
Availability: InStock

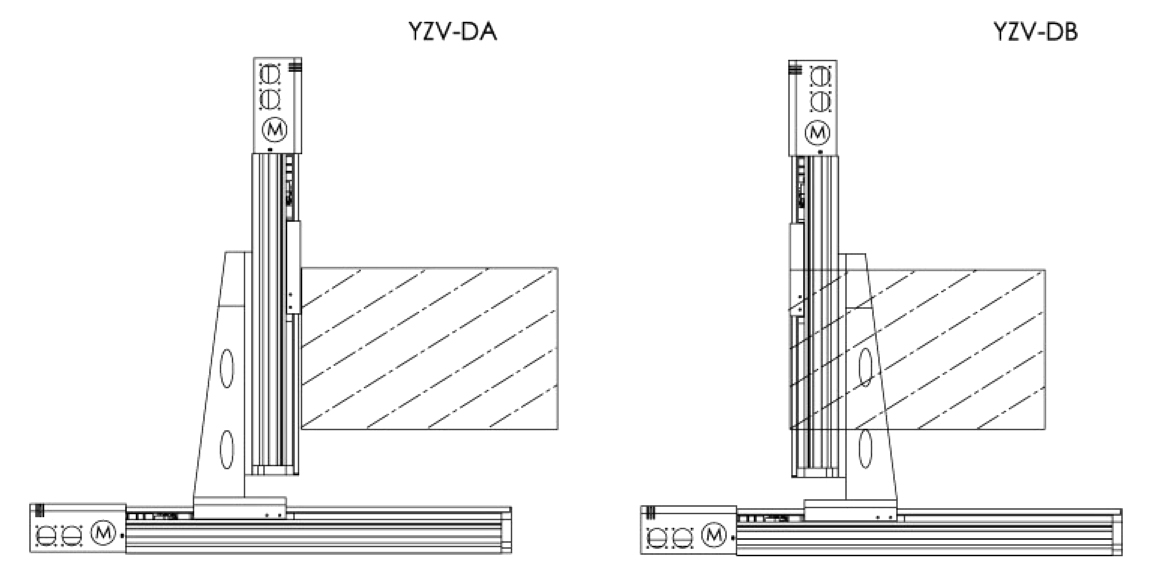

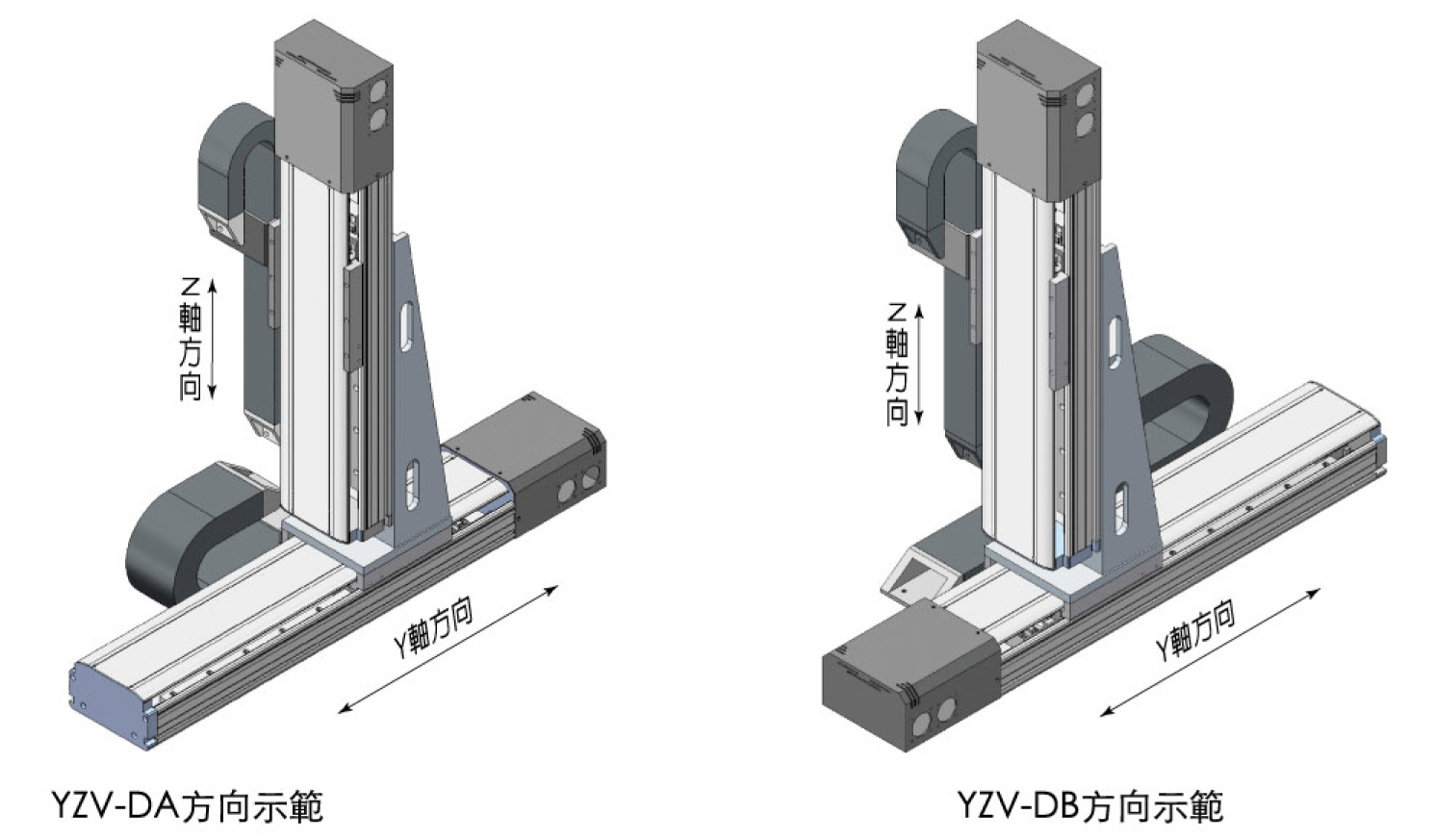

YZV vertikale 2-Achsen-Kombination Baureihe YZV

Prev Nächste ANFRAGE

Product Introduction

Der Hub der YZ-Achse beginnt bei 100 mm, und das Intervall beträgt 100 mm. der maximalen Hub und Last (S=Hub)										suggested motor spec of XY-axis
Y-JDB-240-(S100~S2500mm) Z-JDB-180-Hub-/Lastgrenze	" Hub der Z-Achse: "	100mm	200mm	300mm	400mm	500mm	600mm	700mm	800mm	Y-750W
Y-JDB-240-(S100~S2500mm) Z-JDB-180-Hub-/Lastgrenze	" Endlast: "	65KG	60KG	56KG	53KG	50KG	46KG	43KG	38KG	Z-750W+Brake
Y-JDB-180-(S100~S2200mm) Z-JDB-130- Hub-/Lastgrenze	Z axis stroke	100mm	200mm	300mm	400mm	500mm	600mm	-	-	Y-400W
Y-JDB-180-(S100~S2200mm) Z-JDB-130- Hub-/Lastgrenze	" Endlast: "	35KG	31KG	29KG	26KG	23KG	21KG	-	-	Z-750W+Brake
Y-JDB-130-(S100~S1200mm) Z-JDB-128- Hub-/Lastgrenze	" Hub der Z-Achse: "	100mm	200mm	300mm	400mm	500mm	-	-	-	Y-200W
Y-JDB-130-(S100~S1200mm) Z-JDB-128- Hub-/Lastgrenze	" Endlast: "	22KG	17KG	14KG	11KG	9KG	-	-	-	Z-200W+Brake
