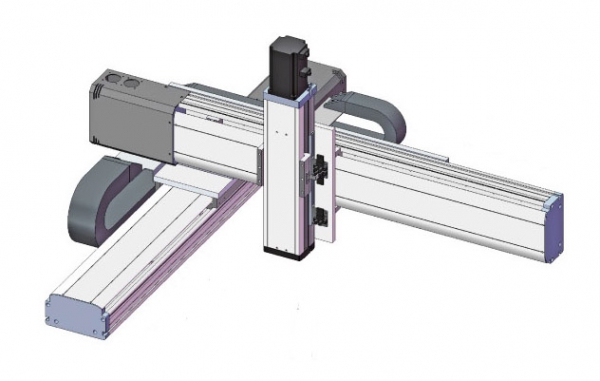

Name: XYZS-Freischwinger 3-Achsen-Kombination
Brand: Jem Dar Precision Co., Ltd.
SKU: Baureihe XYZS
Availability: InStock

XYZS-Freischwinger 3-Achsen-Kombination Baureihe XYZS

Prev Nächste ANFRAGE

Product Introduction

Der Hub der XYZ-Achse beginnt bei 100 mm, und das Intervall beträgt 100 mm. der maximalen Hub und Last (S=Hub)								Suggested motor spec of XYZ-axis
X-JDB-180-(S100~S600mm) Y-JDB-240-(S100~S2500mm) Z-JDB-130-S Hub-/Lastgrenze	Hub der X-Achse:	100mm	200mm	300mm	400mm	500mm	600mm	X-400W
	Hub der Z-Achse:	50mm	100mm	150mm	200mm	250mm	300mm	Y-750W
	Endlast:	27KG	25KG	23KG	22KG	20KG	18KG	Z-400W+Brake
X-JDB-130-(S100~S600mm) Y-JDB-180-(S100~S2200mm) Z-JDB-128-S Hub-/Lastgrenze	Hub der X-Achse:	100mm	200mm	300mm	400mm	500mm	600mm	X-400W
	Hub der Z-Achse:	50mm	100mm	150mm	200mm	250mm	300mm	Y-40W
	Endlast:	15KG	14KG	12KG	10KG	7KG	4KG	Z-200W+Brake
X-JDB-128-(S100~S600mm) Y-JDB-130-(S100~S1200mm) Z-JDBN-80-S Hub-/Lastgrenze	Hub der X-Achse:	100mm	200mm	300mm	400mm	500mm	600mm	X-200W
	Hub der Z-Achse:	50mm	100mm	150mm	200mm	250mm	300mm	Y-400W
	Endlast:	12KG	10KG	8KG	5KG	4KG	3KG	Z-100W+Brake
X-JDBN-80-(S100~S600mm) Y-JDB-128-(S100~S1200mm) Z-JDBN-65-S Hub-/Lastgrenze	Hub der X-Achse:	100mm	200mm	300mm	400mm	500mm	600mm	X-100W
	Hub der Z-Achse:	50mm	100mm	150mm	200mm	250mm	300mm	Y-200W
	Endlast:	8KG	6KG	4KG	3KG	2KG	1KG	Z-100W+Brake
