Mini Linear Actuator (Micro Electric Putter) JDRM-75
Miniaturization
Low price
High precision
High linearity
Easy to install
Complete specification
Can be used with microstepping motor
Prev Inquiry

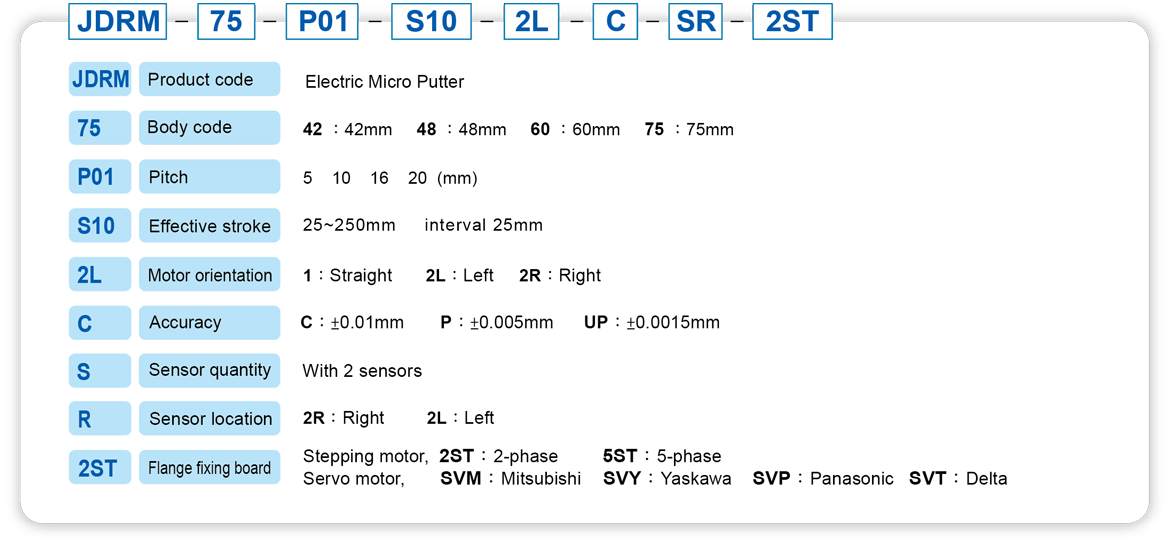

Product Introduction
Motor capacity Stepping motor / servo motor: 1.3Nm
Pitch (mm) 5 10 16 20
Dynamic load 63.7 kg
Static load 76.4 kg
Line speed (mm/sec) 250 500 800 1000
Horizontal load (kg) 60 50 30 20
Vertical load (kg) 46 30 17 11
Acceleration (m/sec2) 1.25 2.5 4 5
Vertical drive torque (Nm) 0.45 0.65 0.65 0.6
Rated torque (N) 1470 735.1 459.5 367.5
Repeatability (mm) C: ±0.01 mm  P:±0.005 mm  UP:±0.001 mm
Effective stroke (mm) 25 mm~250 mm (interval 25mm)
Ambient temperature / humidity 0~40°C/ 30~85% RH
Limited switch DC 5V~24V/ DU-911 x 2 sets/ wire length 30 cm

proimages/JDRM-75-直.jpg

proimages/JDRM-75-2L.jpg

proimages/JDRM-75-2R.jpg
