Product Introduction
| Repeat precision | ±0.04 mm/M |
|---|---|
| Pitch | 56 mm |
| Max. load | 56 kg Can fit with reducer |
| Max. speed | 2800 mm/sec |
| Reducer ratio | 3、4、5、6、7、8、9、10、15、20、25、30 |
| Fixed way | Coupling | |
|---|---|---|
| Lock from top to bottom M6-Ø6.5 through hole |
AC 100W | d1xd2=6x8 |
| AC 200W | d1xd2=6x14 | |
| AC 400W | d1xd2=6x14 | |
| MUT56 | d1xd2=6x8 | |

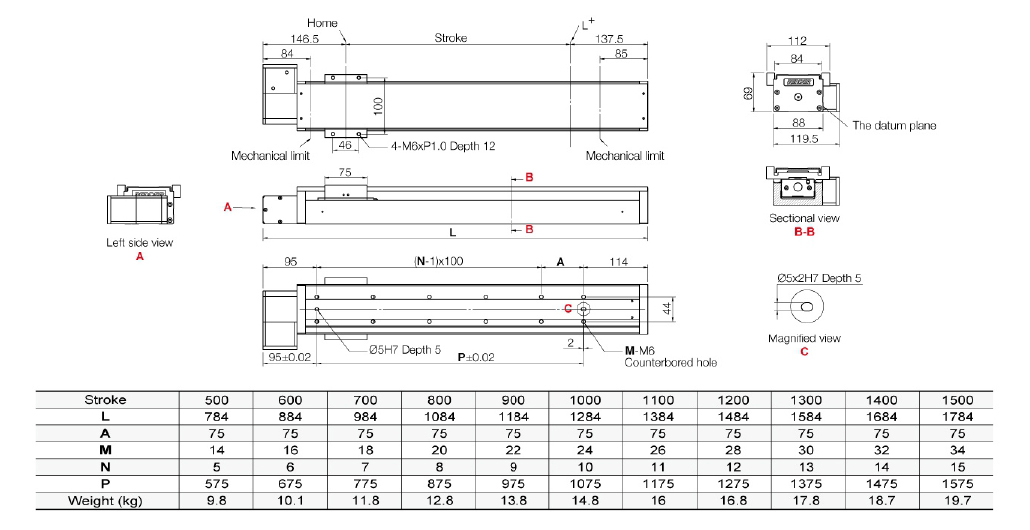

AUT-88-2L

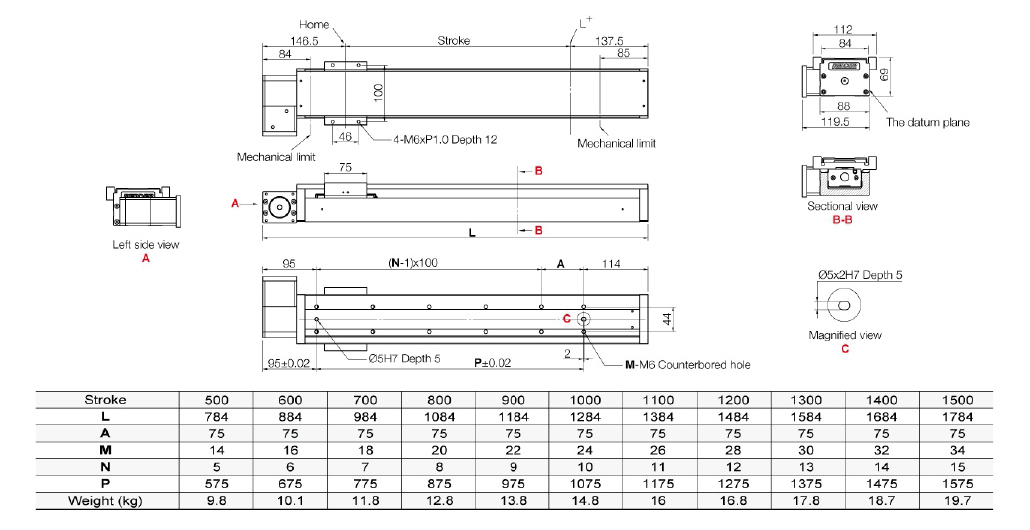

AUT-88-2R

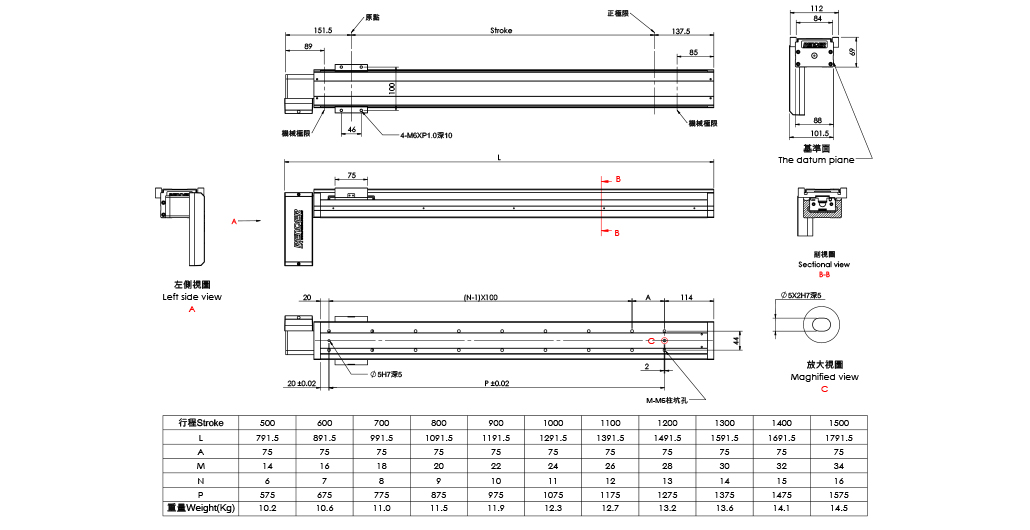

AUT-88-2LDG

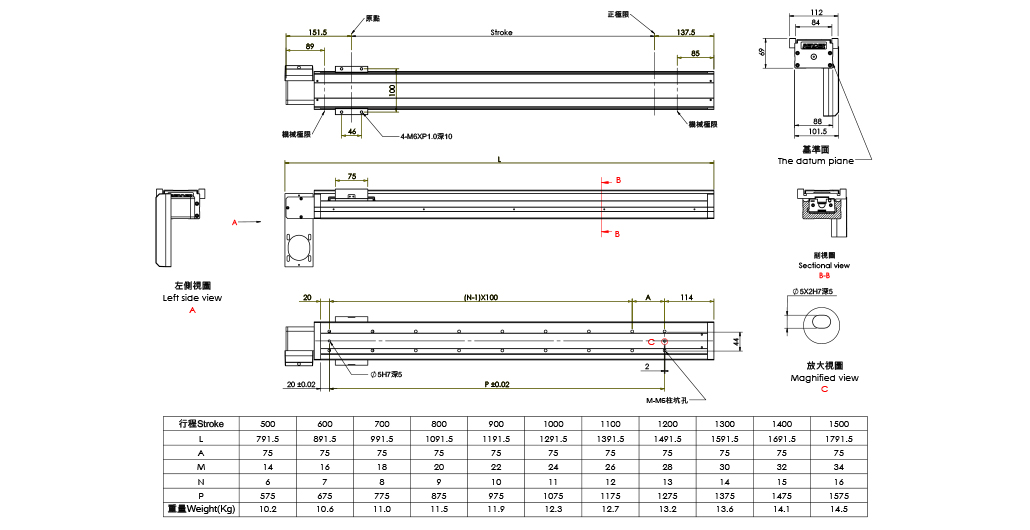

AUT-88-2RDG

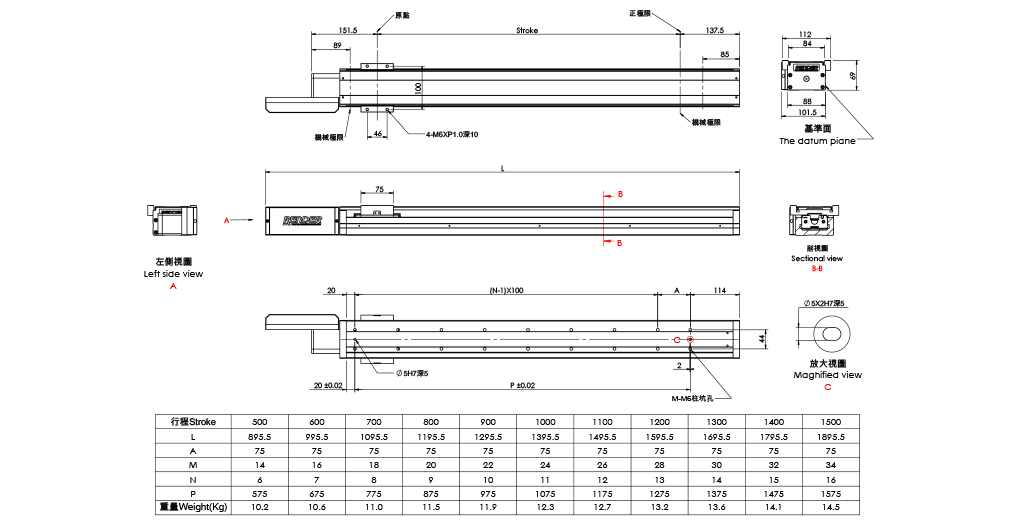

AUT-88-2LG

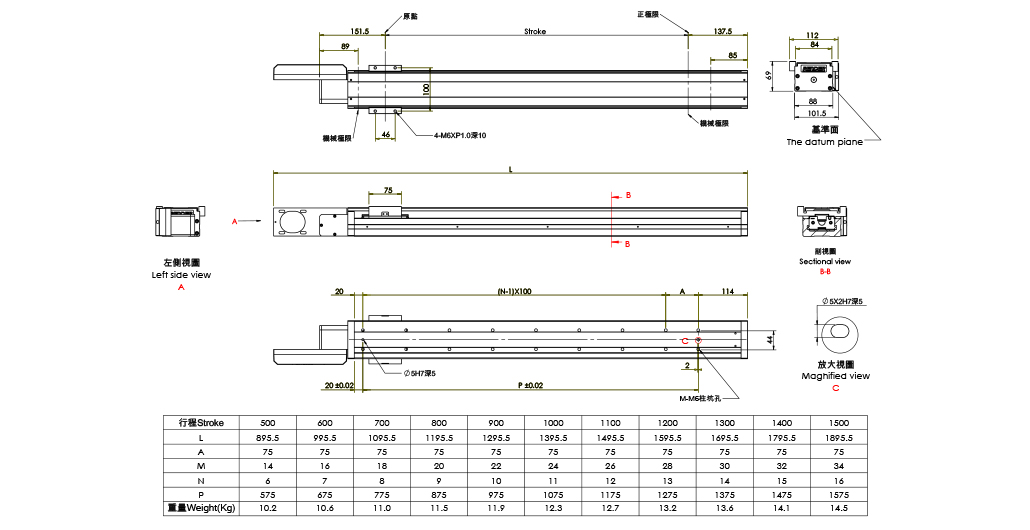

AUT-88-2RG
AUT-88-2LUG

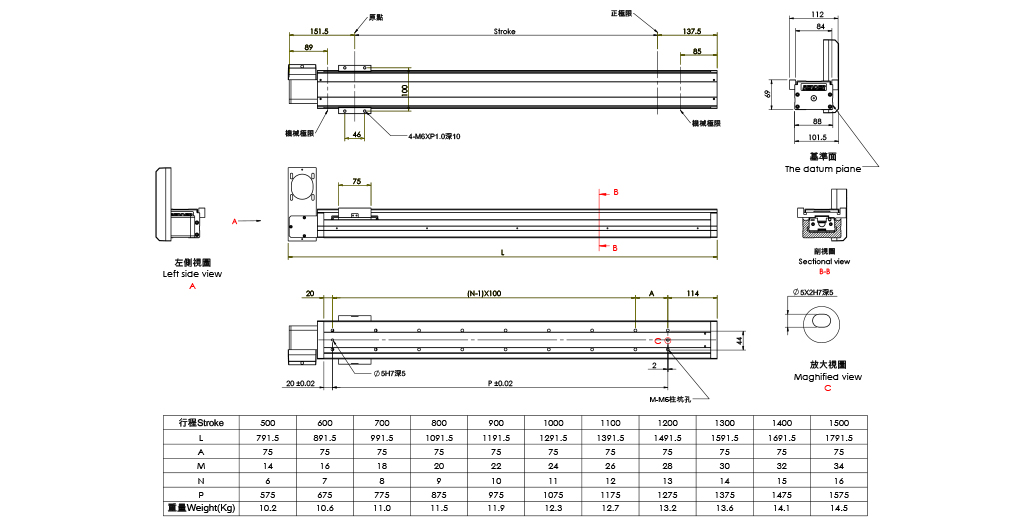

AUT-88-2RUG
