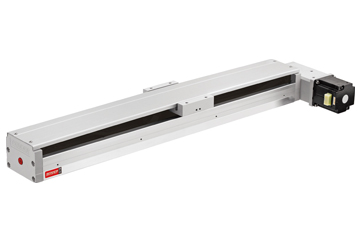

AUT-65 Standard Built-in Guideway Belt Driven Linear Actuator
Standard Built-in Guideway Belt Driven Linear Actuator AUT-65
Next Inquiry
Product Introduction
Repeat precision ±0.04 mm/M
Pitch 45 mm
Max. load 40 kg Can fit with reducer
Max. speed 2250 mm/sec
Reducer ratio 3、4、5、6、7、8、9、10、15、20、25、30

Motor capacity Coupling
Lock from top to bottom M5-Ø5.5 through hole AC 50W d1xd2=6x8
AC 100W d1xd2=6x8
MUT35 d1xd2=6x5
MUT42 d1xd2=6x5

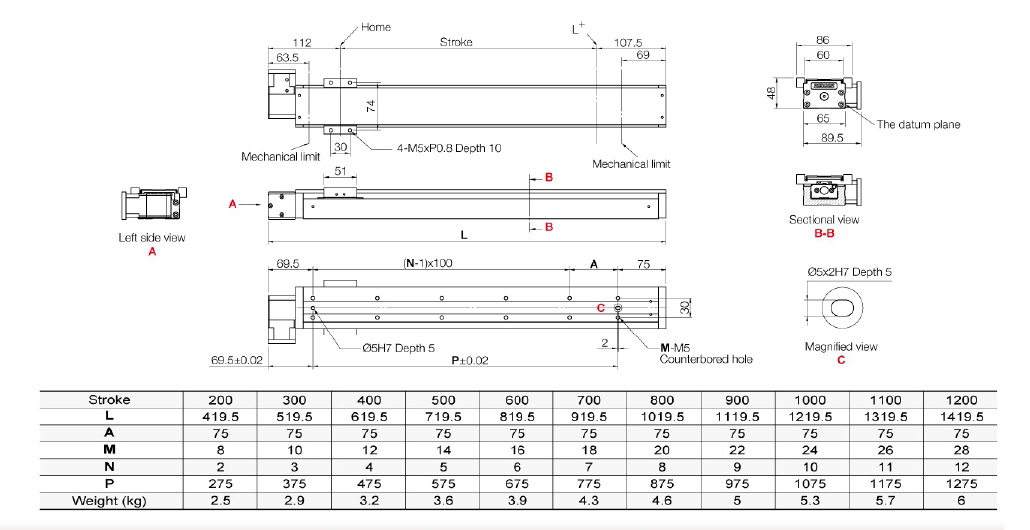

AUT-65-2L

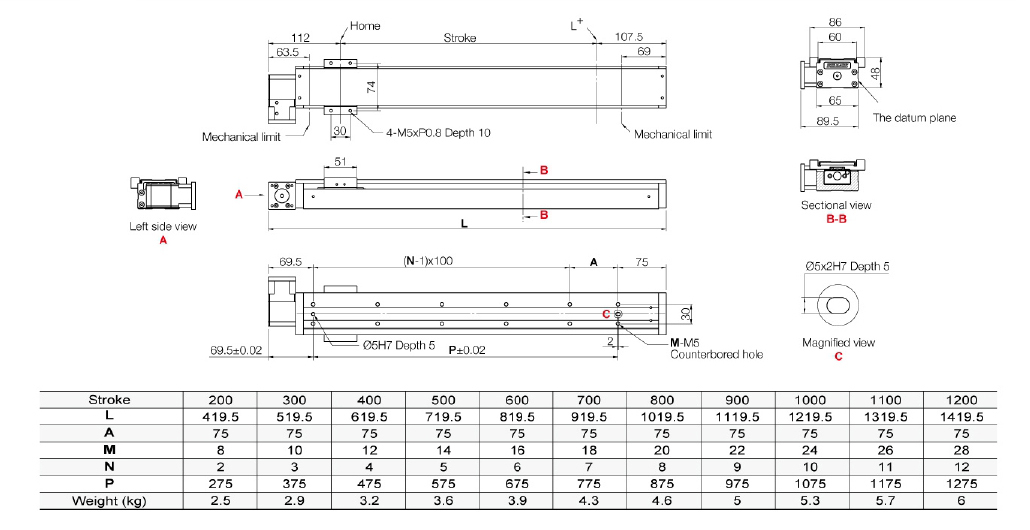

AUT-65-2R

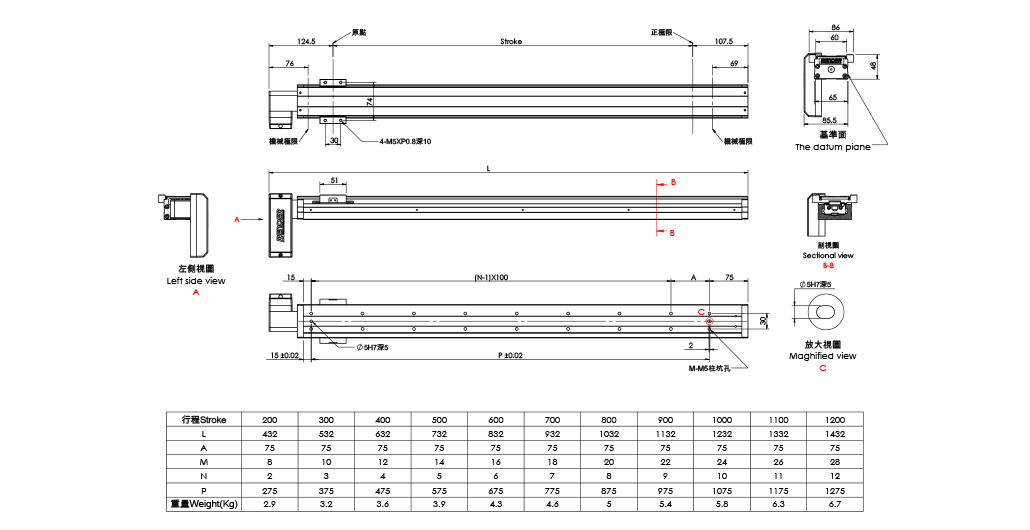

AUT-65-2LDG
AUT-65-2RDG
AUT-65-2LG

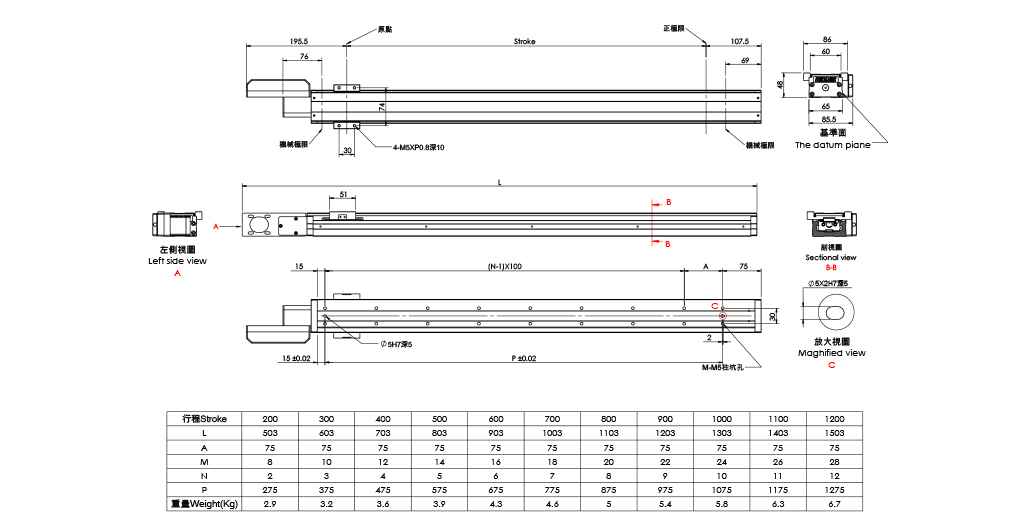

AUT-65-2RG

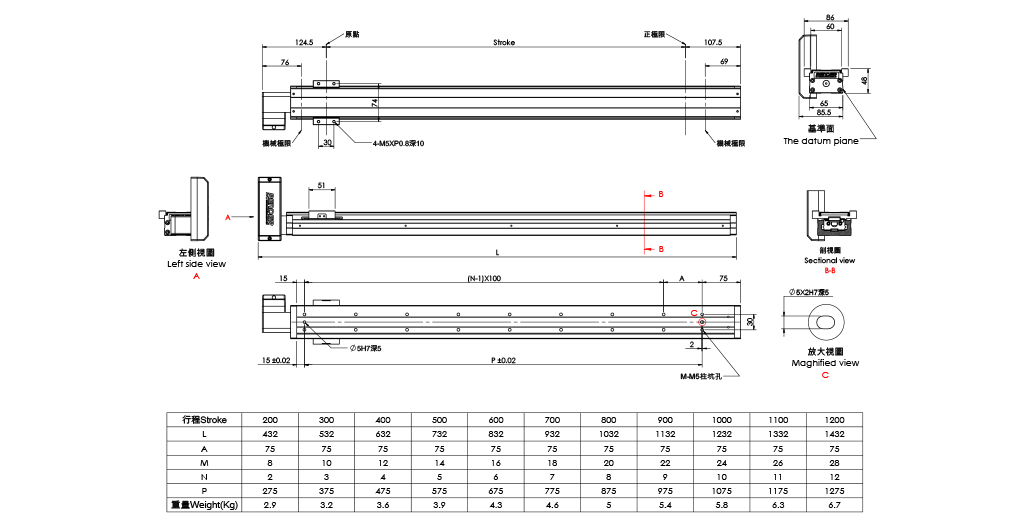

AUT-65-2LUG

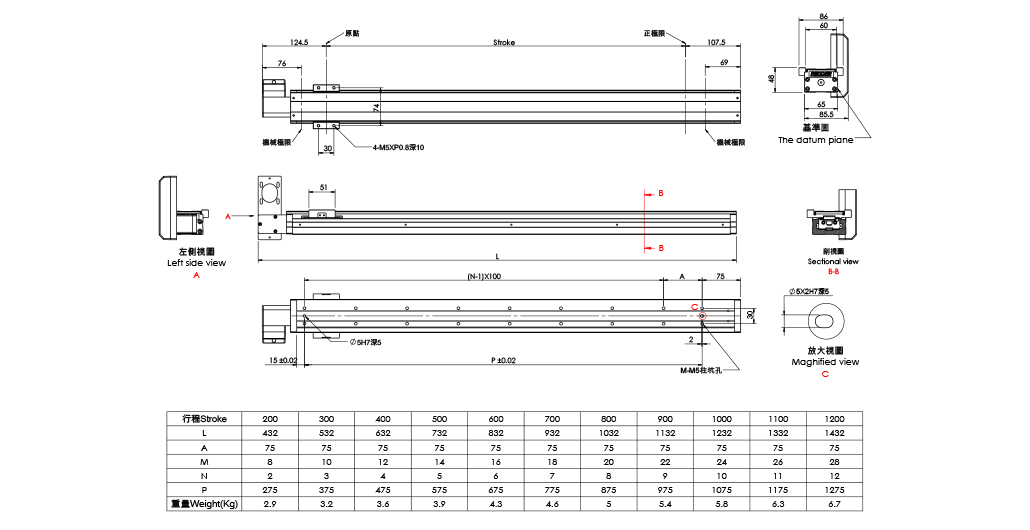

AUT-65-2RUG
