Belt Driven Slide (Flat Slides)

Belt Driven Slide (Flat Slides)
Belt Driven Slide (Flat Slides) JDTNS-75 (Discontinued)

Dust-proof Standard Type
Motor Capacity: Stepping Motor

Prev Next Inquiry

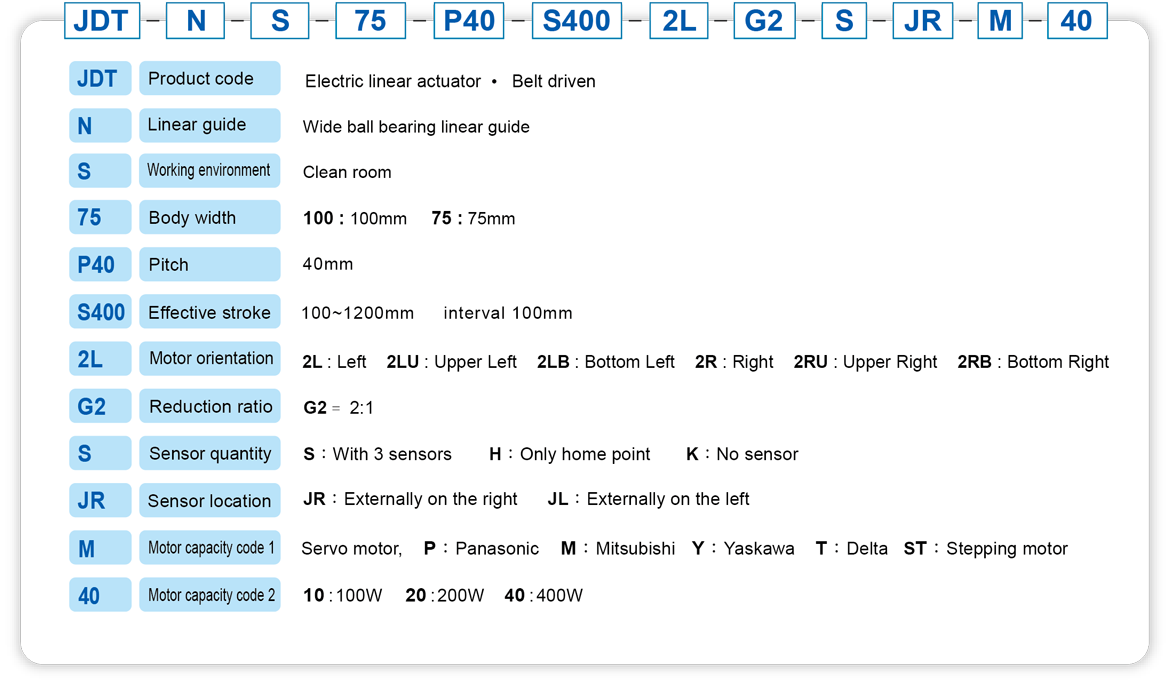

Product Introduction
Applicable Motor AC-100W / 220V Stepping Motor MPK268-03A
Slide Track and Slide MR 12WL Flat Slide
Specified Torque 0.32 N.m 1.3 N.m
Repetitive Precision ± 0.04 mm/M
External Diameter of Ball Screw PU Steel wire belt/ Width: 15mm
Pitch Lead Screw 40 mm
Highest speed 2000 mm/sec 800 mm/sec
Max. Weight Horizontal 10 kg 12 kg
Vertical -
Sensor Model No. 671 x 3 pcs
Load Torque (N.m)  Ma: 30.1 N.m
 Ma: 17.15 N.m
 Ma: 17.15 N.m
JDTNS-75 Specification-2L

1. Slide rail oil hole cover
2. We install the sensor outside (right or left side)
3. Applicable motor:100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDTNS-75 Specification-2LU

1. Slide rail oil hole cover
2. We install the sensor outside (right or left side)
3. Applicable motor:100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDTNS-75 Specification-2LB

1. Slide rail oil hole cover
2. We install the sensor outside (right or left side)
3. Applicable motor:100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDTNS-75 Specification-2R

1. Slide rail oil hole cover
2. We install the sensor outside (right or left side)
3. Applicable motor:100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDTNS-75 Specification-2RU

1. Slide rail oil hole cover
2. We install the sensor outside (right or left side)
3. Applicable motor:100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDTNS-75 Specification-2RB

1. Slide rail oil hole cover
2. We install the sensor outside (right or left side)
3. Applicable motor:100W, 200W, 400W

SENSOR：

  1. +LS
  2. HOME
  3. -LS
