Product Introduction
| Motor capacity | Stepping motor: 1.3 N.m | |||
|---|---|---|---|---|
| ø16 Ball screw lead | 5 mm | 10 mm | 16 mm | 20 mm |
| Dynamic rated load | 1120 ca(N) | 8390 ca(N) | 5520 ca(N) | 5540 ca(N) |
| Static rated load | 25070 coa(N) | 18210 coa(N) | 11370 coa(N) | 11700 coa(N) |
| Repeat positioning precision | ±0.02 mm(±10% deviation) | |||
| linear speed | 250 mm/sec | 500 mm/sec | 800 mm/sec | 1000 mm/sec |
| Horizontal thrust | 200 kg | 130 kg | 70 kg | 45 kg |
| Vertical thrust | 70 kg | 40 kg | 23 kg | 17 kg |
| Effective stroke | 50mm~600mm (50mm interval) | |||
| Acceleration | 1.25 t | 2.5 t | 4 t | 5 t |
| Vertical driving torque | 0.88 Mta | 0.87 Mta | 0.9 Mta | 0.89 Mta |
| Working temperature and humidity | 0~40°C / 30~85°% RH | |||
| Limit switches | DC24V 2 limit switches | |||
| Rated thrust | 1470 N | 735.13 N | 459.5 N | 367.6 N |

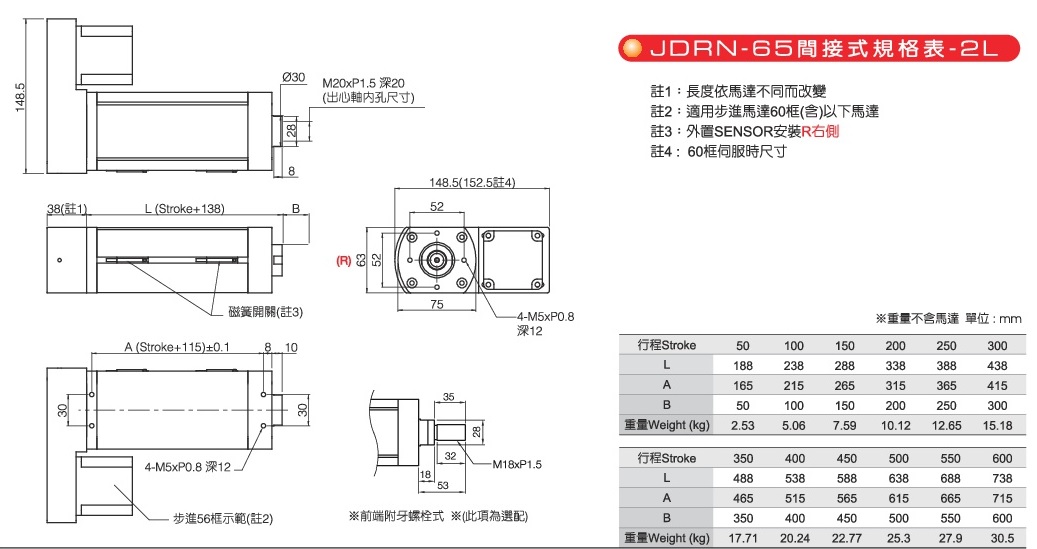

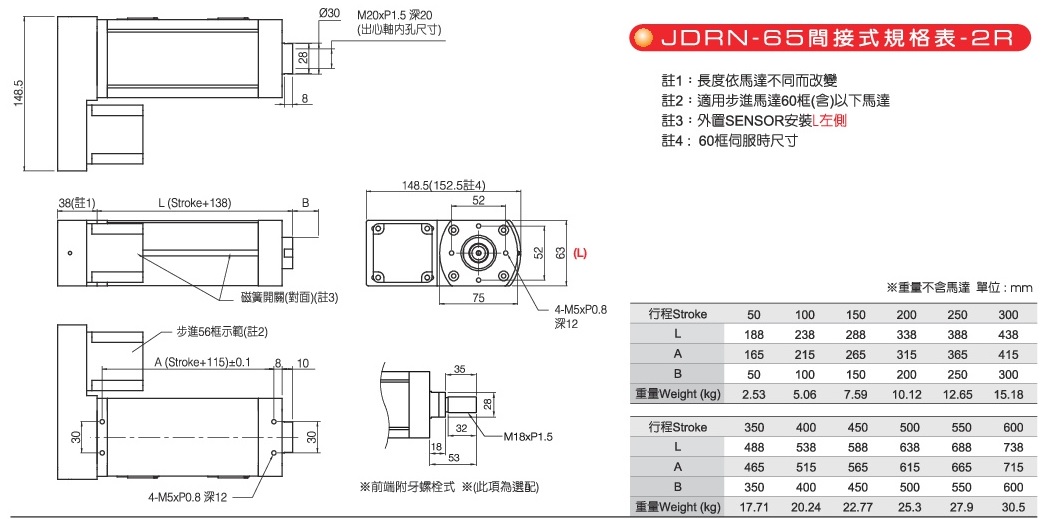

Note: The accuracy can reach within 0.01mm if the output shaft is equipped with guide rail.
