Product Introduction
| Repeat precision | ±0.04 mm/M |
|---|---|
| Pitch | 56 mm |
| Max. load | 56 kg Can fit with reducer |
| Max. speed | 2800 mm/sec |
| Reducer ratio | 3、4、5、6、7、8、9、10、15、20、25、30 |
| Fixed way | Coupling | |
|---|---|---|
| Lock from top to bottom M5-Ø5.2 through hole Lock from bottom to top M6 tooth hole |
AC 100W | d1xd2=6x8 |
| AC 200W | d1xd2=6x14 | |
| AC 400W | d1xd2=6x14 | |
| MUT56 | d1xd2=6x8 | |

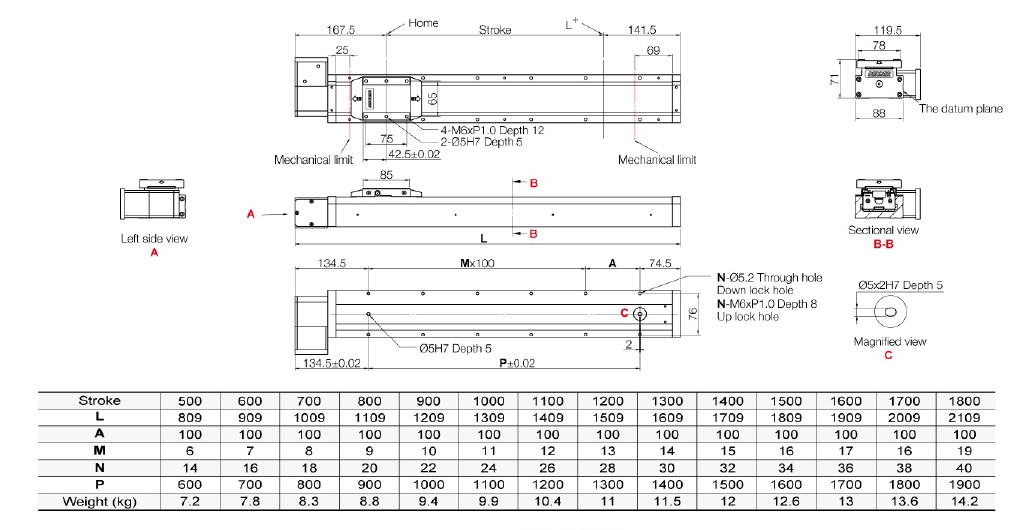

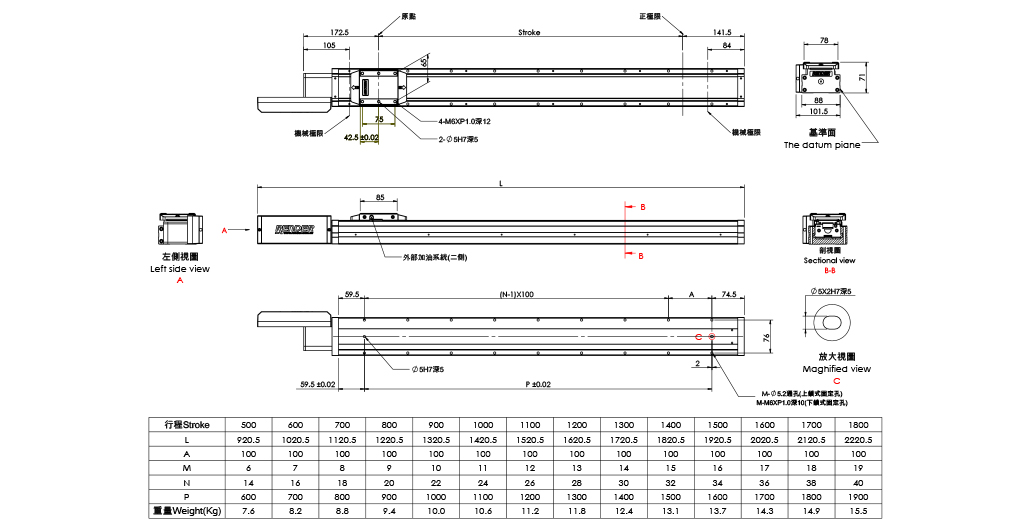

AUTS-88-2L

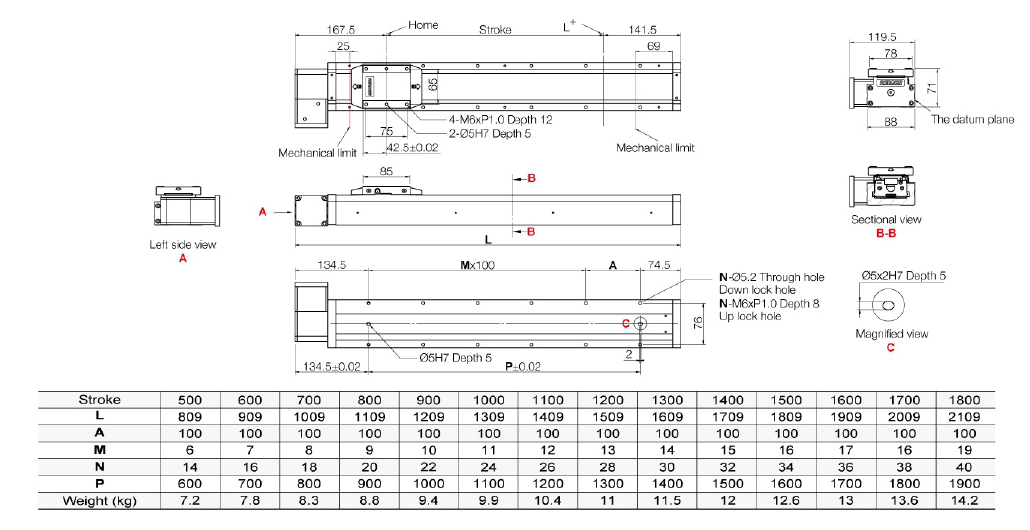

AUTS-88-2R

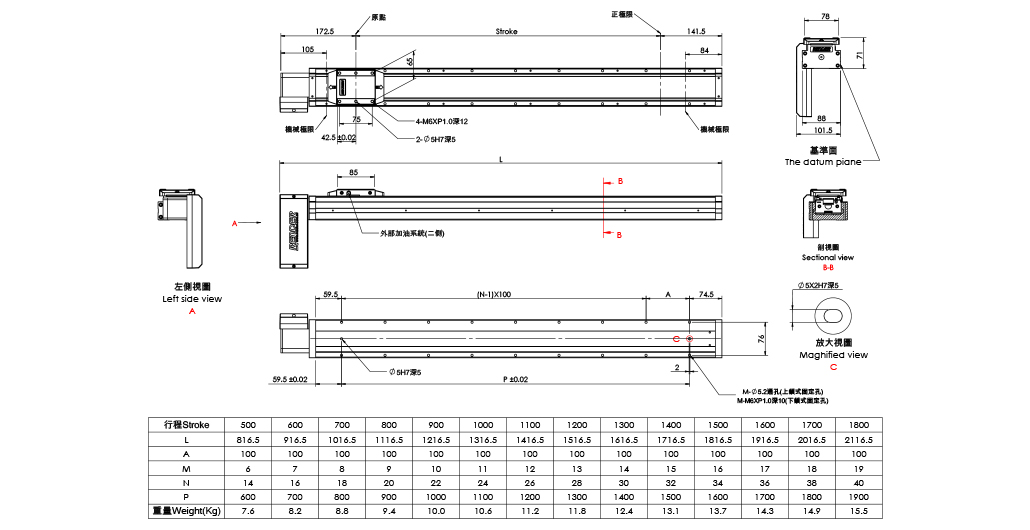

AUTS-88-2LDG

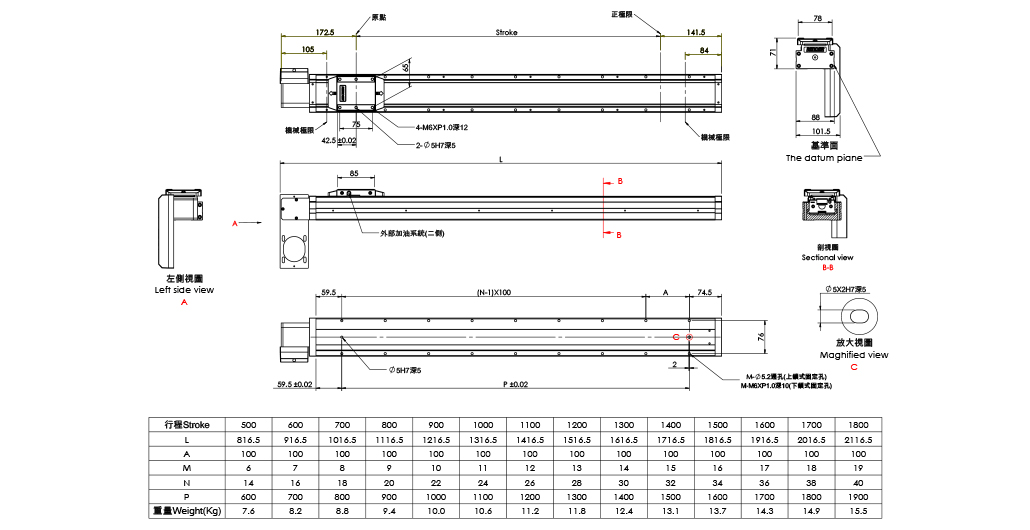

AUTS-88-2RDG
AUTS-88-2LG

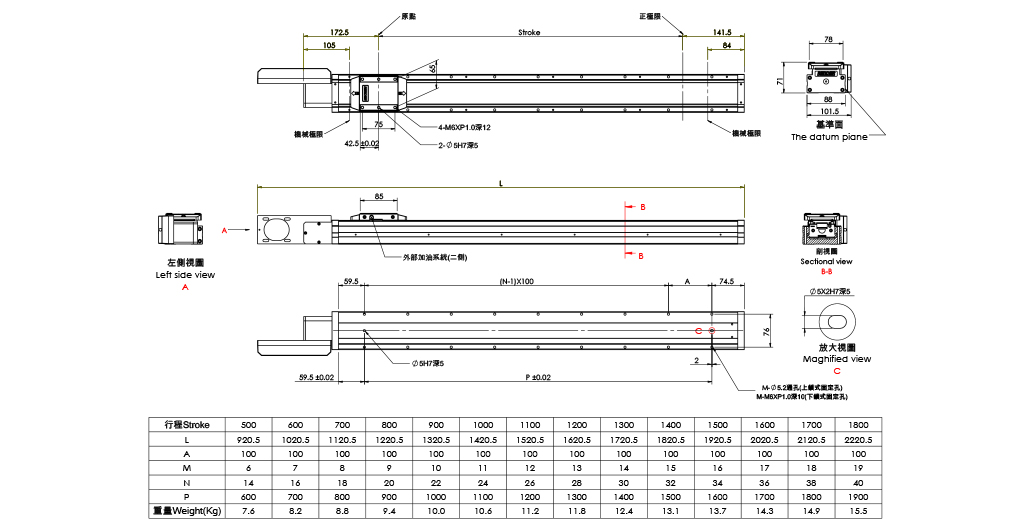

AUTS-88-2RG

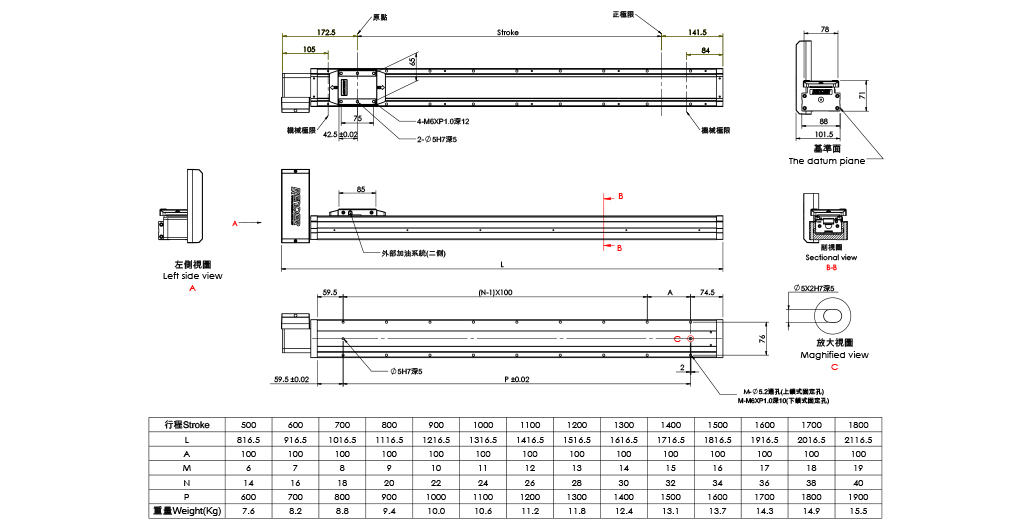

AUTS-88-2LUG

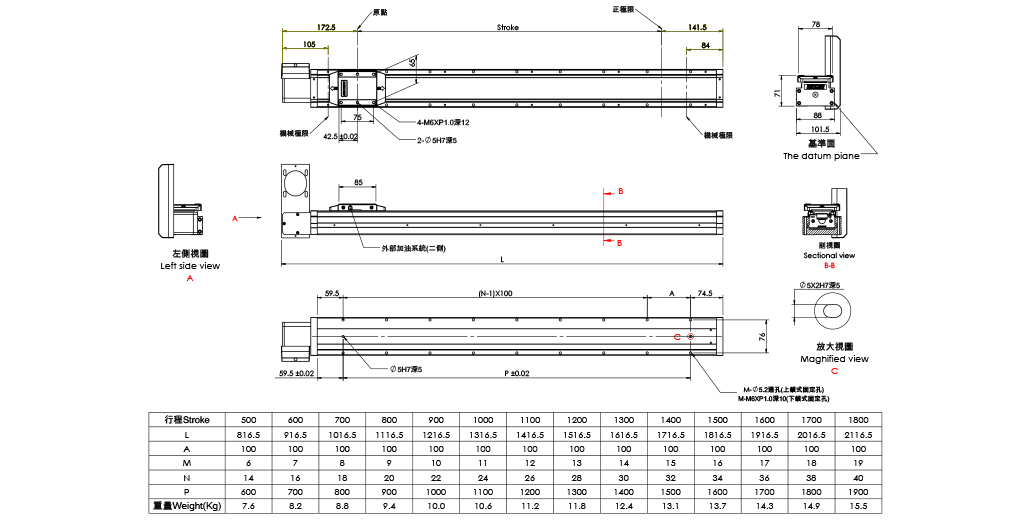

AUTS-88-2RUG
