Electric Linear Built-in Guideway Servo Ball Screw Actuator (Covered Type / Light Load)

Standard Ball Screw Driven
AU-65-HS Electric Linear Built-in Guideway Servo Ball Screw Actuator (Covered type / Light load)
Electric Linear Built-in Guideway Servo Ball Screw Actuator (Covered Type / Light Load) AU-65-HS
Prev Next Inquiry
Product Introduction
Motor capacity 100W
Pitch 5 mm 10 mm 20 mm
Dynamic rated load 2036 Ca N 2036 Ca N 2036 Ca N
Static rated load 29401 Coa N 29401 Coa N 29401 Coa N
Repeat precision Class C：±0.008 mm/ Class P：±0.003 mm
Horizontal thrust 45 kg 30 kg 10 kg
Vertical thrust 15 kg 10 kg 3.2 kg
Max. speed 290 mm/sec 580 mm/sec 1000 mm/sec
Shaft diameter of coupling(d1xd2) 5mmx8mm

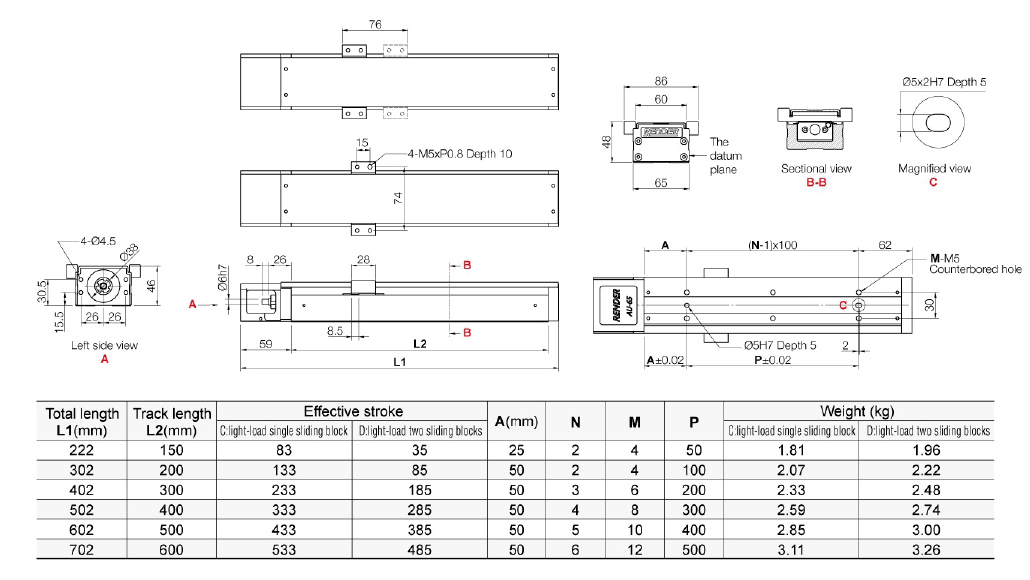

AU-65-HS-1

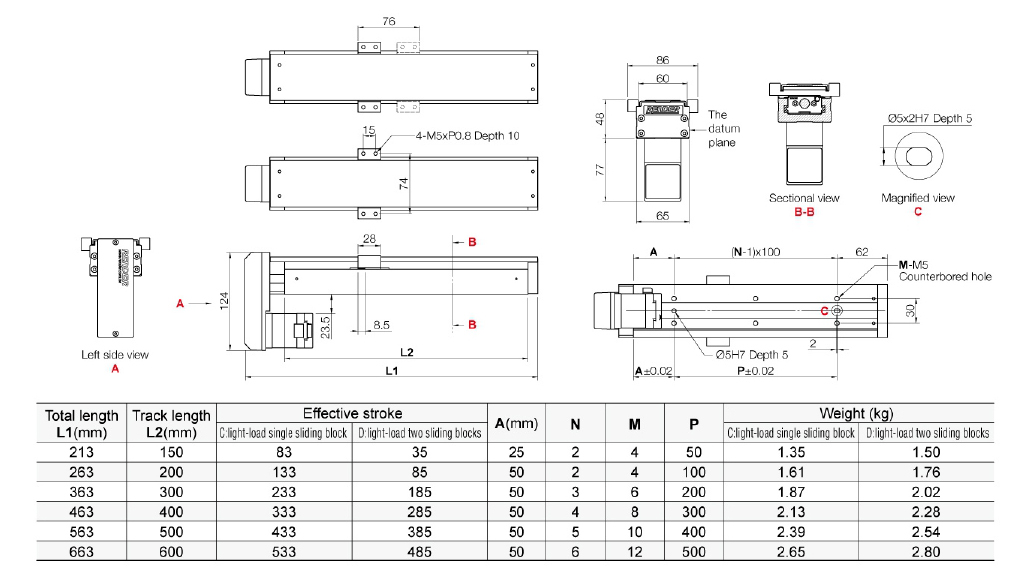

AU-65-HS-2B

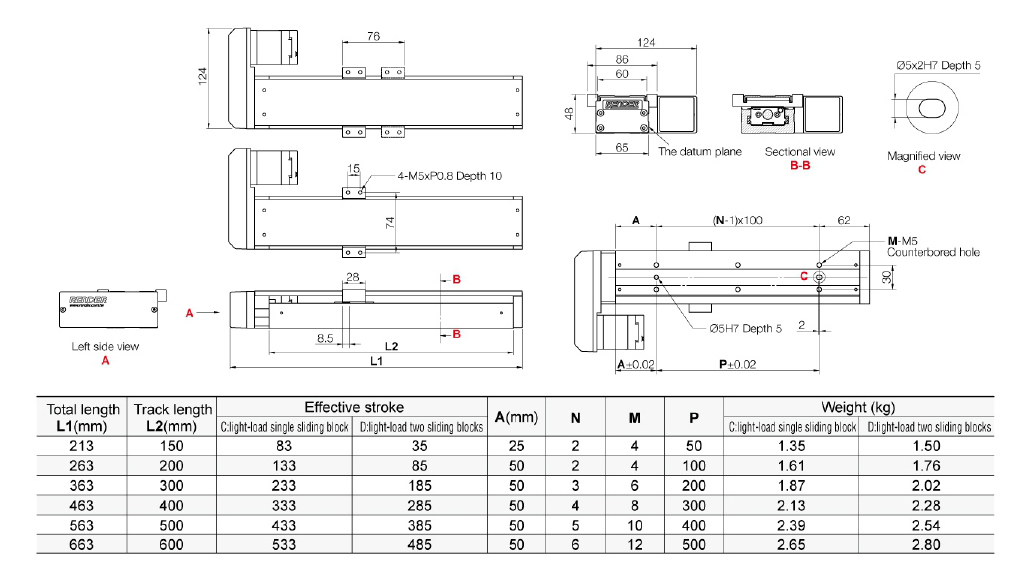

AU-65-HS-2L

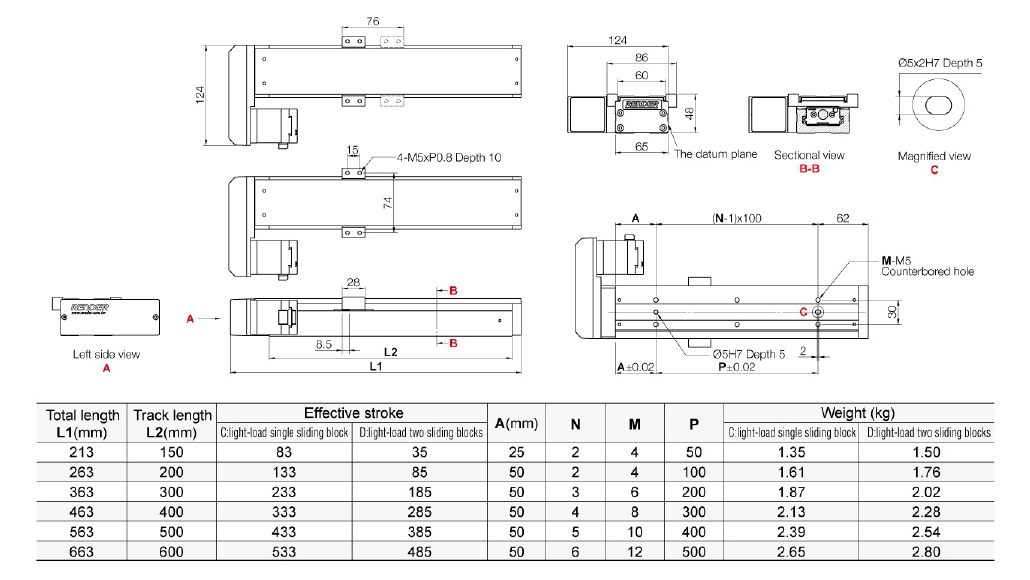

AU-65-HS-2R
